Parts Section
8
Rayco RG1645S Copyright © 2012 Rayco Mfg - All Rights Reserved
Printed in U.S.A.

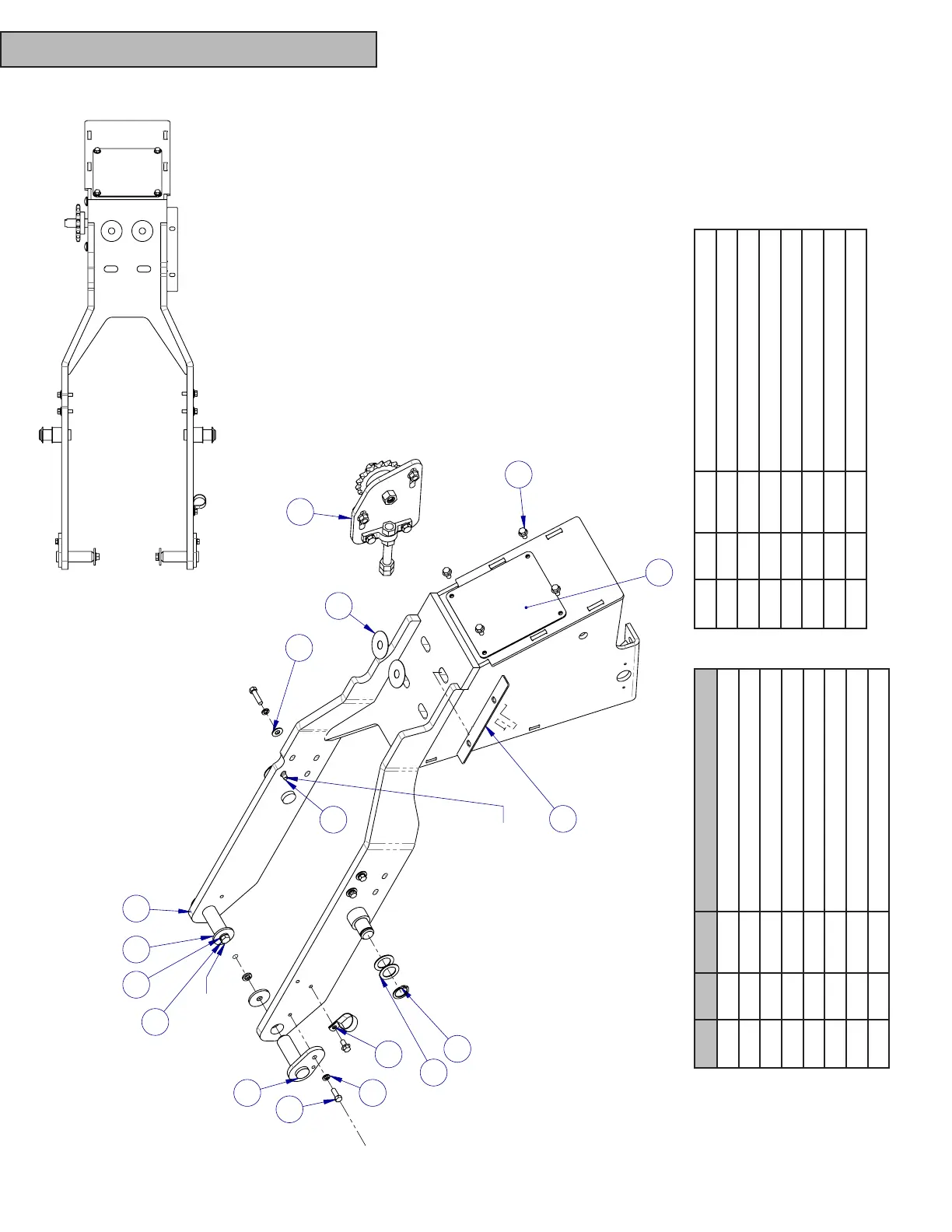

BOOM ASSEMBLY (25144)
9
119 1
6
4
14
12
15
3
2
13
8
5
7
1
16
ASSEMBLE WITH
LOCTITE 242 (BLUE)
ASSEMBLE WITH
LOCTITE 242(BLUE)
TORQUE TO 46 FT-LBS
ITEM QTY. PART # DESCRIPTION
1 1 25009 BOOM WELDMENT
2 4 726909 WASHER FLAT 1-1/4-14GA
3 2 760701 RING-RETAIN EXT 1 1/4”
4 4 726301 WASHER FLAT 3/8 USS
5 6 726302 WASHER-LOCK 3/8
6 4 722305 BOLT-HEX 3/8-16 X 1 1/2
7 2 18953 PIVOT WELD, BOOM
8 2 722303 BOLT-HEX 3/8-16 X 1
9 2 722502 BOLT HEX 1/2-13 x 1
10 2 726502 WASHER LOCK 1/2
11 2 4900-77 WASHER 7 GA. X .531 X 2.0
12 5 722114 WHIZ BOLT 3/8-16 X 3/4
13 1 800307 CLAMP-VINYL COVERED1-1/2”
14 2 21662 GEAR BOX SHIM
15 1 25131 PLATE, COVER
16 1 25120 IDLER ASSEMBLY
To Next Page
