Parts Section
13
Copyright © 2012 Rayco Mfg - All Rights Reserved Rayco RG1645S Stump Cutter
Printed in U.S.A.
1
12
6
3
4
10
23
79
8
11
15 13
5
14
16

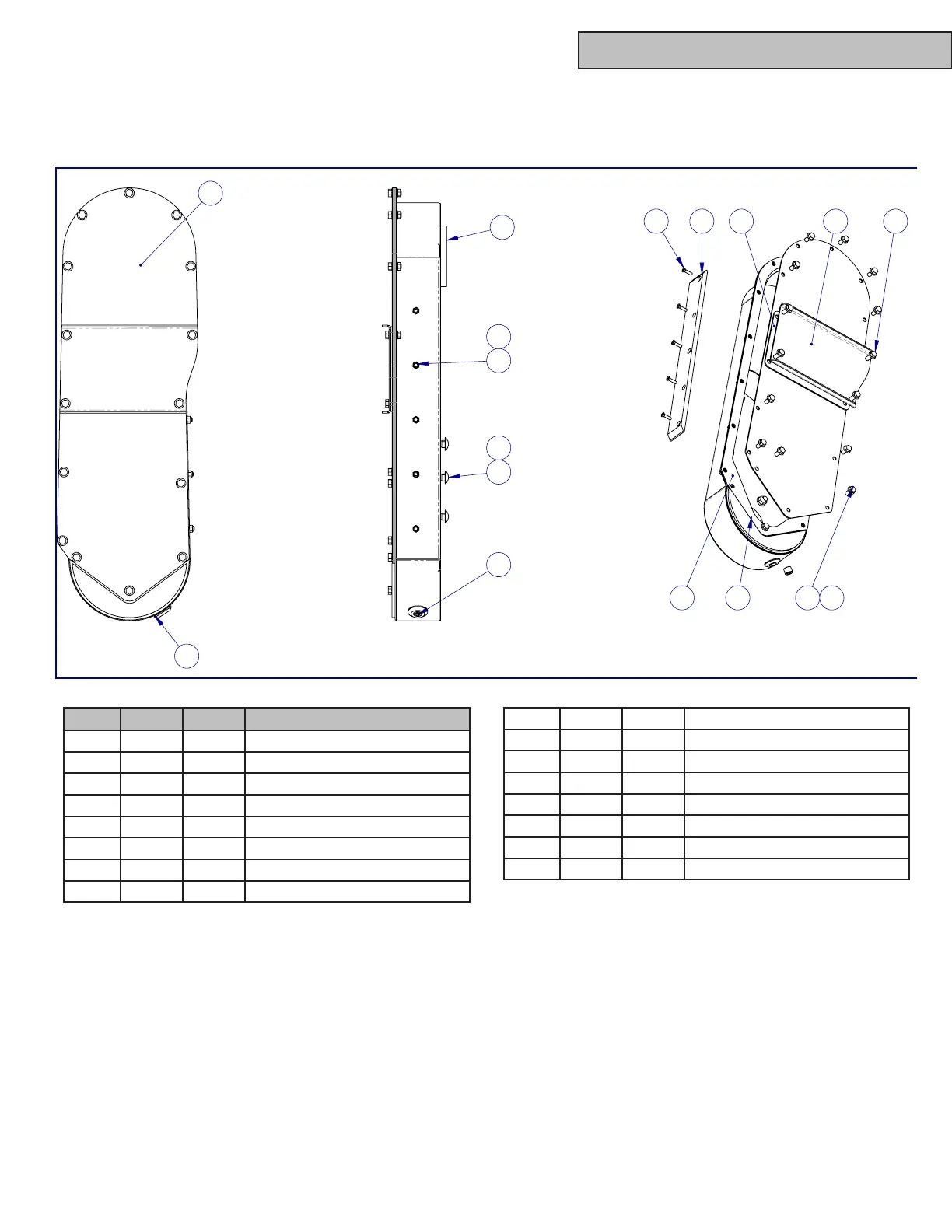

CHAIN COVER ASM (25087)
ITEM QTY. PART # DESCRIPTION
1 1 25086 CHAIN COVER WELDMENT
2 1 23477 CHAIN GUARD SJRD
3 5 750124 SCREW-FH SLOT 1/4-20 X 1
4 5 724508 NUT LOCK 1/4-20 NYLOCK
5 10 750061 NUT-WHIZ 3/8-16 GR5
6 1 761052 PLUG - PIPE 1/2 C’SUNK
7 11 722114 WHIZ BOLT 3/8-16 X 3/4
8 3 722538 BOLT CARR 1/2”-13 X 1-1/4
9 1 801641 SEAL, CHAIN COVER
10 1 28333 SEAL,GEARBOX SHAFT
11 1 710307 SEAL-DUST
12 1 25082 PLATE, CHAIN COVER
13 1 28533 PLATE, CHAIN COVER
14 3 750057 NUT-WHIZ 1/2-13 Z
15 1 28560 GASKET, CHAIN ACCESS COVER
16 4 750399 BOLT WHIZ 3/8-16 X 1
