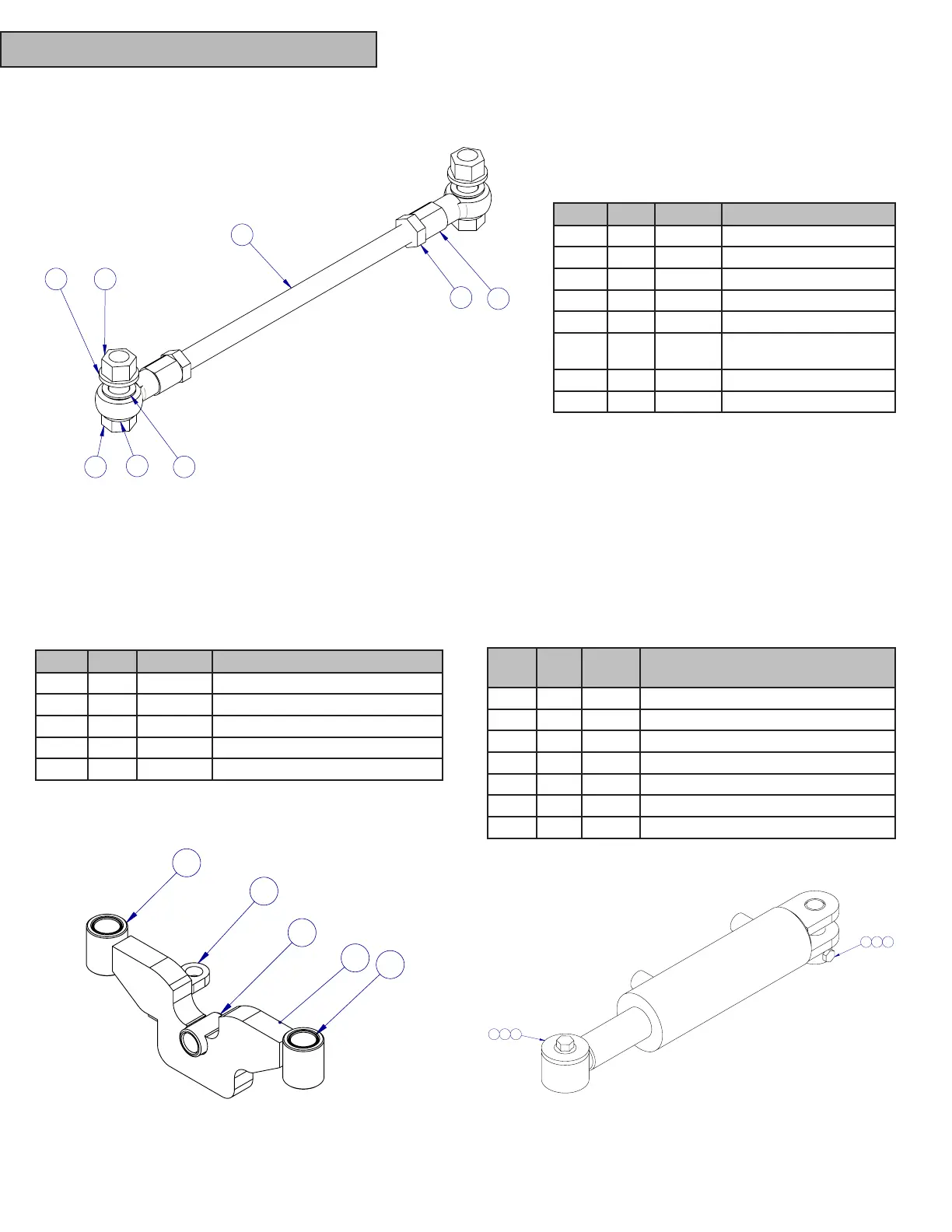

Rayco RG1645S - Tie Rod Assembly; Steering Pivot Assembly

Parts Section
16
Rayco RG1645S Copyright © 2012 Rayco Mfg - All Rights Reserved
Printed in U.S.A.
1
3
2
4
5
6
7 8
ITEM QTY. PART # DESCRIPTION
1 1 28378 TIE ROD
2 2 760609 ROD-END 3/4”
3 2 726803 WASHER, FLAT 3/4-14GA
4 2 760809 NUT-JAM 3/4-16 GR2 Z
5 2 726805 WASHER, FLAT 3/4-10GA
6 2 960304 BOLT HEX 3/4-10X2-
1/2GR8
7 2 765050 WASHER FLAT 3/4”
8 2 724800 NUT LOCK 3/4-10 STOVER
TIE ROD ASSEMBLY (28379)
3
5
2
1
4
STEERING PIVOT ASSEMBLY (28377)
ITEM QTY. PART # DESCRIPTION
1 1 28375 AXLE, STEERING
2 1 7770 HOUSING-PIVOT PIN
3 2 11993 HOUSING-KNUCKLE PIN
4 2 750662 BUSHING-1.75 X 1.50 X2.75
5 1 28376 EAR, STEERING CYLINDER
STEERING CYLINDER ASSEMBLY (28381)
ITEM QTY. PART
#
DESCRIPTION
1 1 28380 CYLINDER, STEERING WELDMENT
2 1 20406 PIN-STEER CYL
3 1 722107 BOLT HEX 1/4-20 X 1 3/4
4 1 724508 NUT LOCK 1/4-20 NYLOCK
5 1 765313 BUSHING-COMP 1.25 X 1 X 1.25
6 1 4900-78 WASHER- 7 GA X .406 X 1.75
7 1 722114 WHIZ BOLT 3/8-16 X 3/4
67
3 2 4
5
