Rayco RG1645S User Manual

Parts Section
17
Copyright © 2012 Rayco Mfg - All Rights Reserved Rayco RG1645S Stump Cutter
Printed in U.S.A.
64
1 3
2 85 7119 10
ITEM QTY. PART # DESCRIPTION
1 2 801687 MOTOR-ORBITAL 337cc W/BRAKE
2 2 763859 HUB-WHEEL MOUNT
3 8 724504 NUT LUG 1/2”-20
4 2 28420 BRACKET, WHEEL MOTOR
MOUNTING
5 1 28478 WHEEL-TIRE INNER LH
6 1 28485 WHEEL-TIRE INNER RH
7 6 750764 NUT WHIZ 5/16”-18
8 6 722855 BOLT SOCKET SHOULDER 3/8
9 8 724501 NUT HEX 1/2-13 GR8
10 8 762886 BOLT HEX 1/2-13 X 5.25 GR8
11 8 726502 WASHER LOCK 1/2

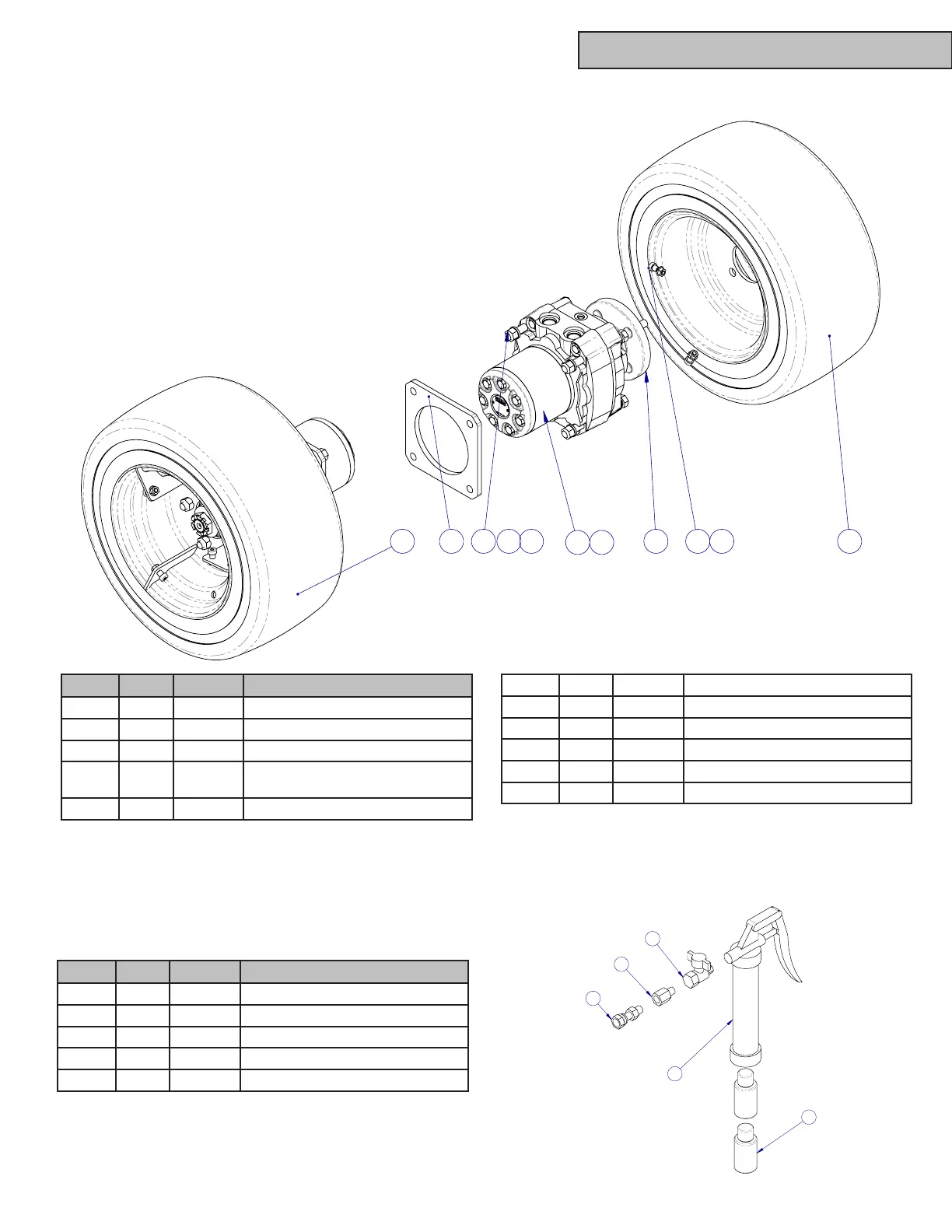

WHEEL DRIVE ASSEMBLY (28481)
HANDBRAKE RELEASE PUMP (28604)
2
1
5
4
3
ITEM QTY. PART # DESCRIPTION
1 1 802251 PUMP - HAND BRAKE RELEASE
2 1 802250 VALVE-MINI BALL
3 1 802301 FIT-4FOR -2MP
4 1 802302 FIT-4MOR-4FOR SW
5 2 802298 BOTTLE-HYD. OIL
