Rayco RG1645S - Idler Assembly

Parts Section
9
Copyright © 2012 Rayco Mfg - All Rights Reserved Rayco RG1645S Stump Cutter
Printed in U.S.A.

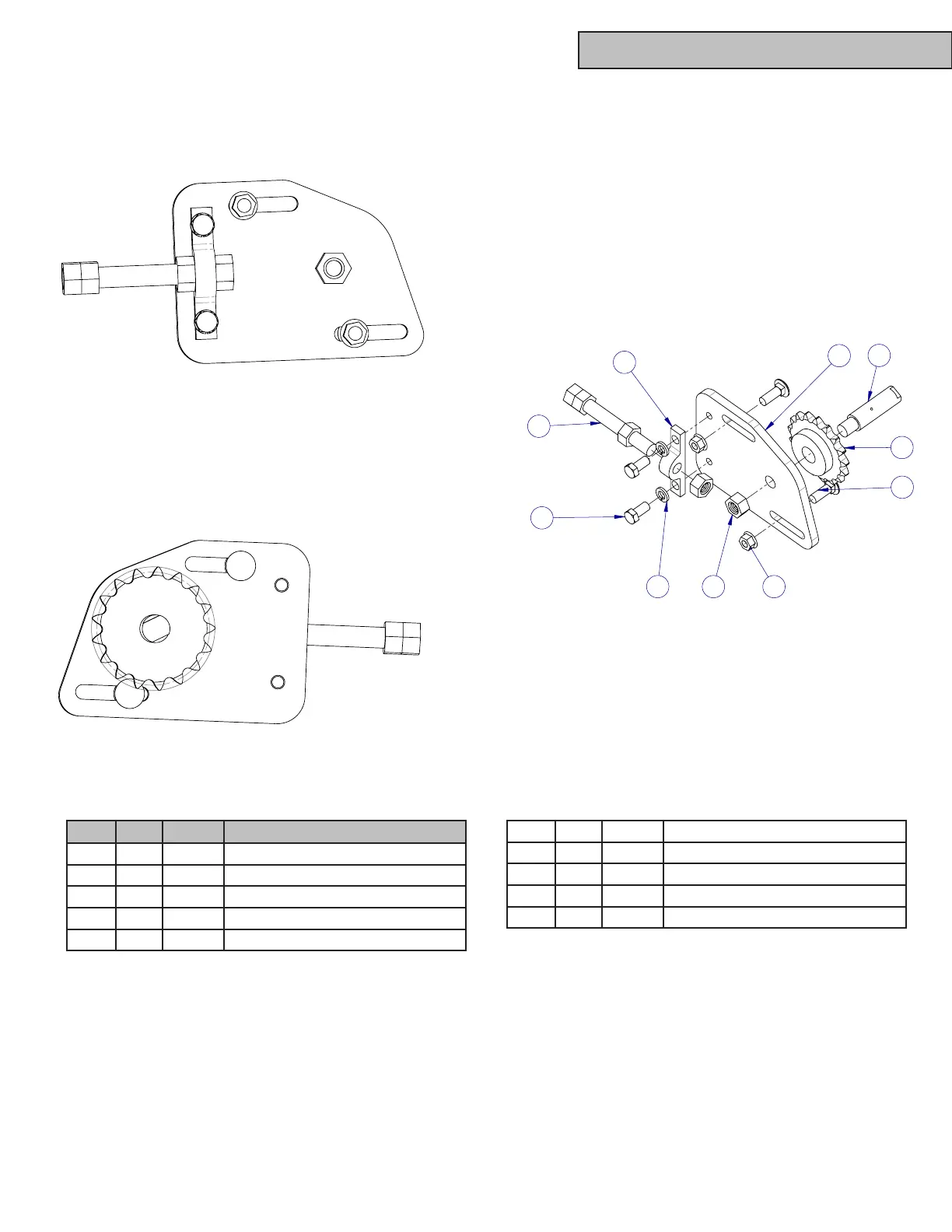

IDLER ASSEMBLY (25120)
7
5
8
9
1012
3
6
4
ITEM QTY. PART # DESCRIPTION
1 5 724801 NUT HEX 3/4-10 GR8
2 2 726502 WASHER LOCK 1/2
3 2 722502 BOLT HEX 1/2-13 x 1
4 1 2536-08 ROD,THREADED
5 1 25119 PLATE ADJUSTER
6 1 21187 ADJUSTER NUT
7 1 802264 TIGHTENER SHAFT
8 1 802263 SPROCKET 17T 50 SERIES
9 2 722539 BOLT CARR 1/2”-13 X 1-1/2
10 2 750057 NUT-WHIZ 1/2-13 Z
