Parts Section
15
Copyright © 2012 Rayco Mfg - All Rights Reserved Rayco RG1645S Stump Cutter
Printed in U.S.A.
17 8 9 7
16897
18
14
19
1
15 11 12 3 10
13425
6
6
20
22
21
TORQUE ITEM
#1 TO 80 FT-LBS
RED LOCTITE ITEM # 2
TORQUE TO 115 FT-LBS
TORQUE SPINDLE NUT
TO 150 FT-LBS
ITEM QTY. PART # DESCRIPTION
1 8 724504 NUT LUG 1/2”-20
2 8 724501 NUT HEX 1/2-13 GR8
3 1 722201 BOLT HEX 5/16-18 X 2 GR8
4 8 722512 BOLT HEX 1/2-13 X 2.75GR8
5 8 726502 WASHER LOCK 1/2
6 2 4900-53 WASHER 1/4 X 1.531 X 2.38
7 4 726911 WASHER FLAT 1 1/2 14 GA
8 2 1200201 RING-RETAIN EXT 1-1/2”
9 2 729999 ZERK-GREASE 1/8”NPT 90DEG
10 2 760872 BEARING-GARMAX 1.25X1.00
11 1 20405 PIN PIVOT STEER AXLE
12 1 750050 NUT LOCK 5/16-18 NYLON
13 2 801472 MOTOR-ORBITAL 337CC
14 2 763859 HUB-WHEEL MOUNT
15 1 28377 AXLE, STEERING WELDMENT
16 1 28359 MOTOR MOUNT-FOLLOWER
17 1 28365 MOUNT, MOTOR LEADER ASM.
18 1 28379 TIE ROD ASM.
19 1 28381 CYINDER, STEERING ASM
20 1 802190 WHEEL LH 18X8.5-10
21 1 802191 WHEEL-TIRE ASM RH
22 1 764264 BUSHING, 1 X 3/4 X 1/2

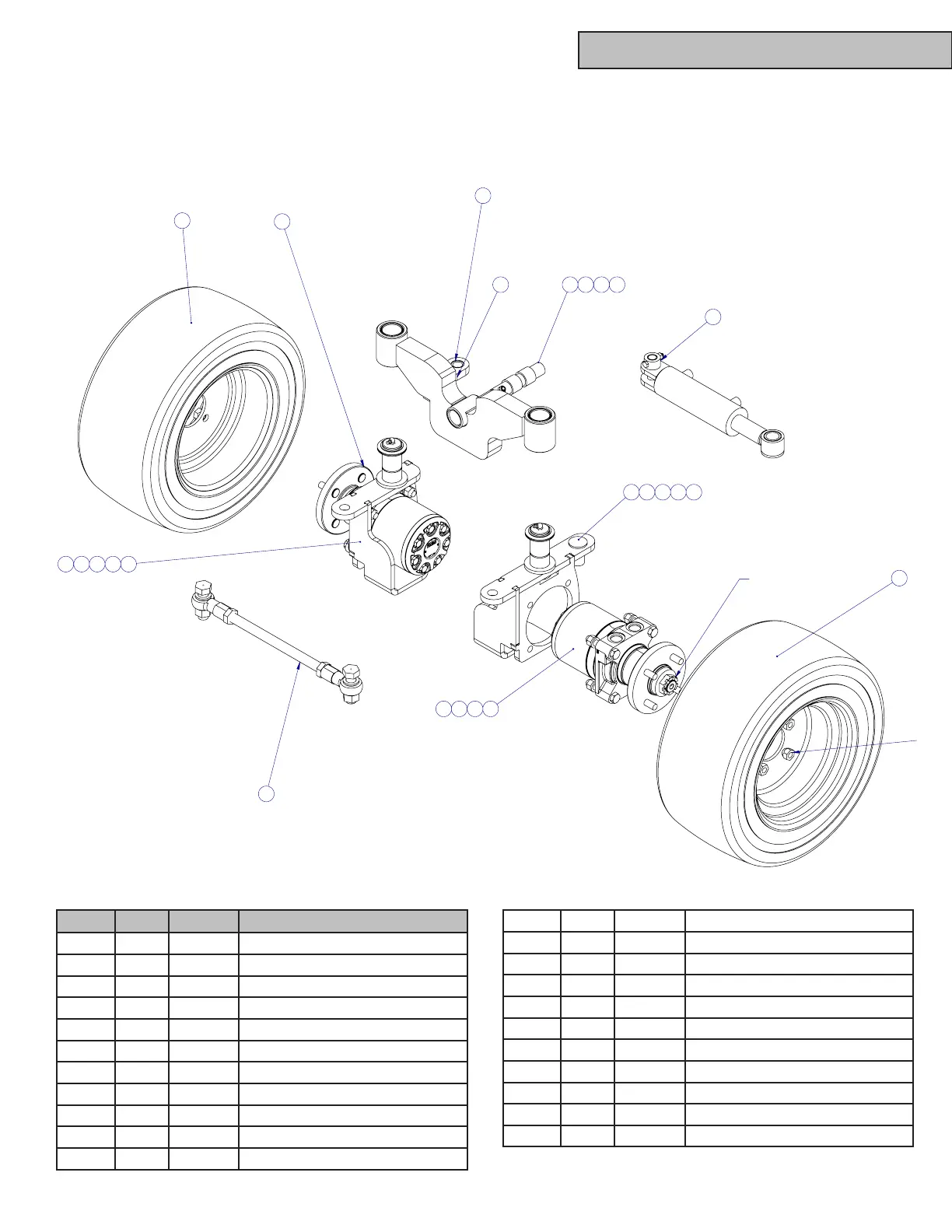

STEERING AXLE ASSEMBLY (28403)
