Parts Section
11
Copyright © 2012 Rayco Mfg - All Rights Reserved Rayco RG1645S Stump Cutter
Printed in U.S.A.

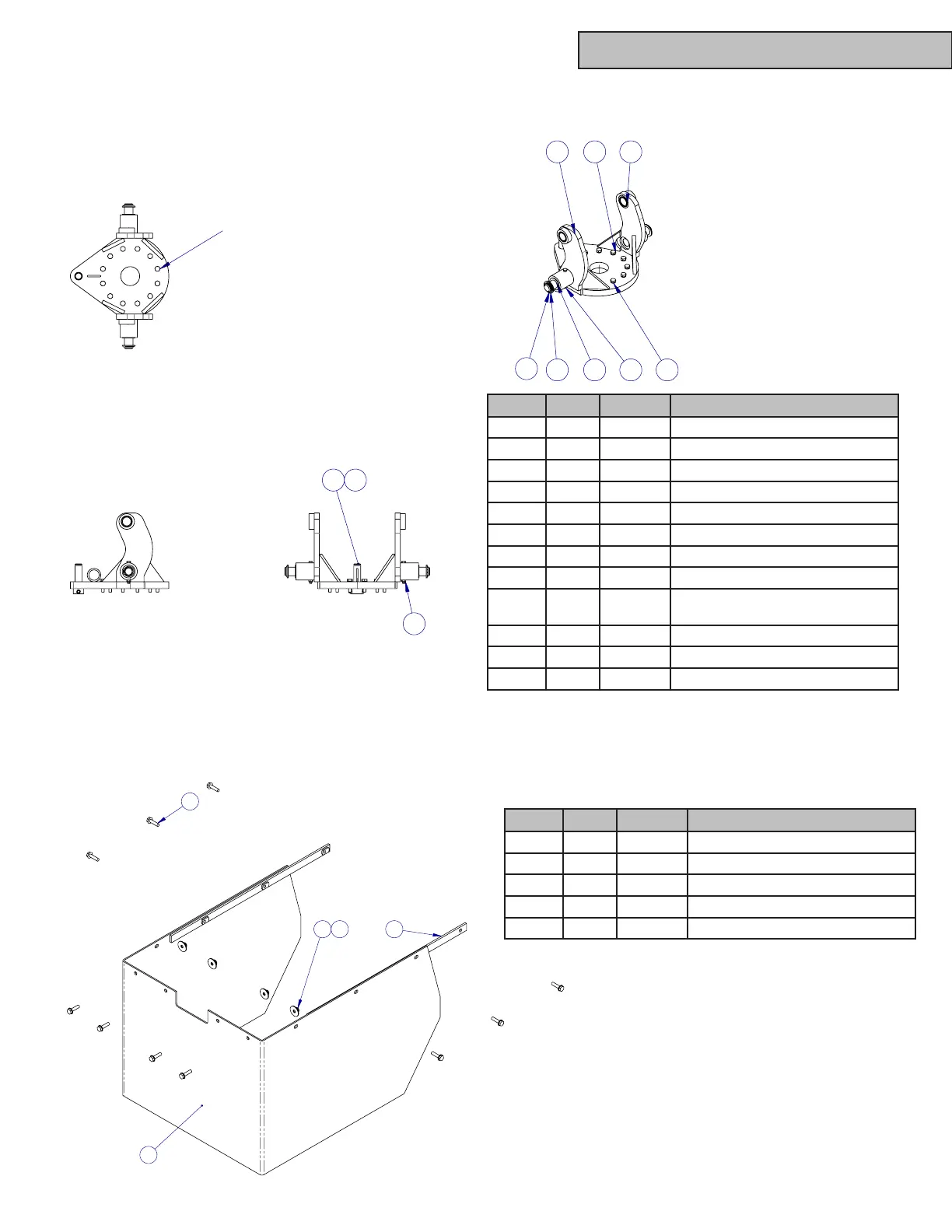

PIVOT ASSEMBLY (21775)
5
10 11
NOTE: TORQUE
TO 40 FT-LBS
BLUE LOCTITE
91 8
764
2
3
ITEM QTY. PART # DESCRIPTION
1 1 21771 PIVOT HEAD WELD/MACH SJRD
2 2 18985 PIN, BOOM LIFT CYL.
3 2 726909 WASHER FLAT 1-1/4-14GA
4 2 760701 RING-RETAIN EXT 1 1/4”
5 3 750050 NUT LOCK 5/16-18 NYLON
6 2 764101 BOLT HEX 5/16-18 X 3 GR8
7 12 726954 WASHER METRIC LOCK M10
8 12 960108 BOLT- METRIC 10-1.5 X 45
9 2 763360 BEARING POLYGON 1.5 X 1.25 X
1.50
10 1 18994 PIN-CYLINDER, SWING
11 1 722201 BOLT HEX 5/16-18 X 2 GR8
12 2 726908 WASHER FLAT 1-1/4-10GA
CURTAIN ASSEMBLY (28346)
ITEM QTY. PART # DESCRIPTION
1 1 28341 CURTAIN, FRONT
2 2 19707 BRACKET WELD-CURTAIN
3 10 722118 BOLT WHIZ 1/4-20 X 1
4 4 724508 NUT LOCK 1/4-20 NYLOCK
5 4 726607 FENDER WASHER
