Parts Section
23
Copyright © 2012 Rayco Mfg - All Rights Reserved Rayco RG1645S Stump Cutter
Printed in U.S.A.

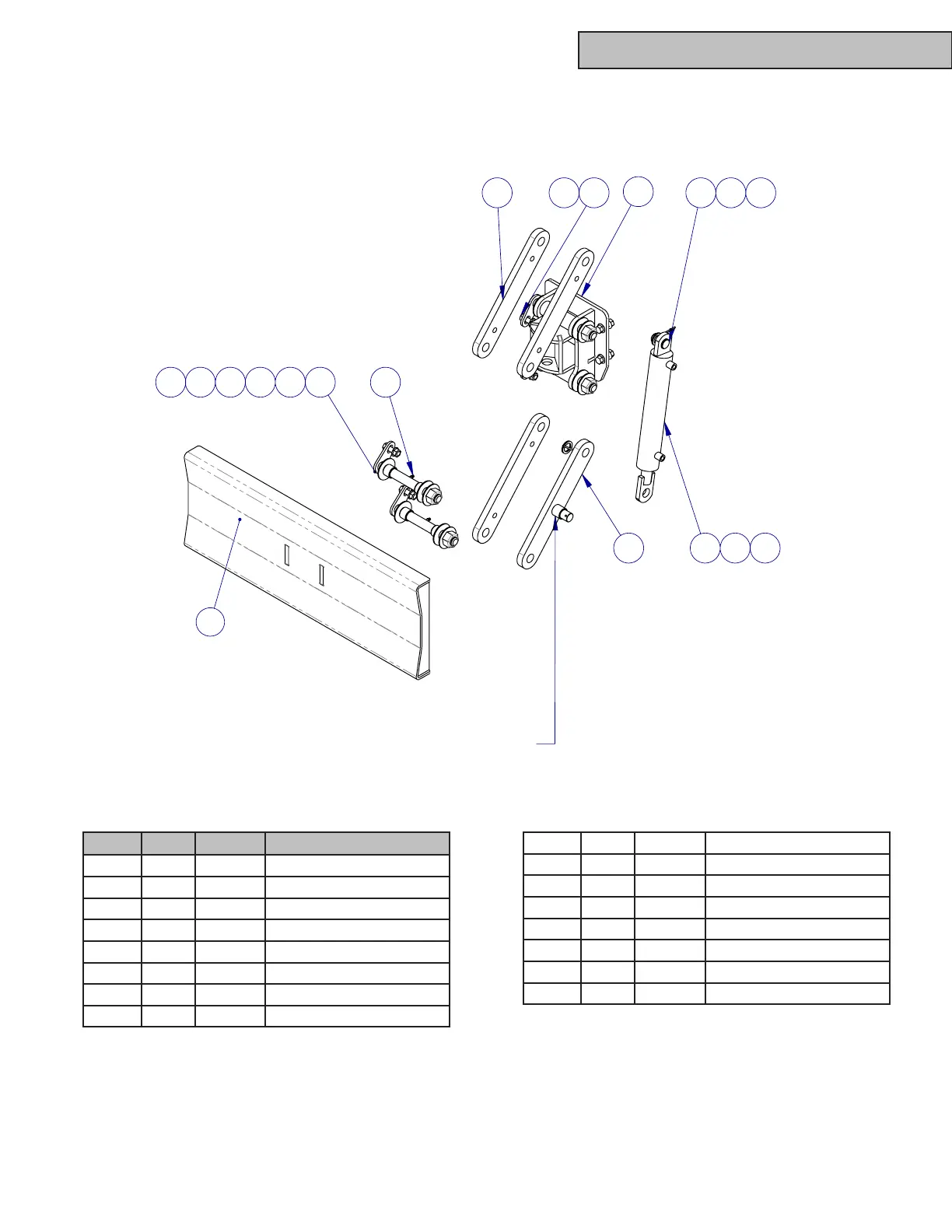

BLADE ASSEMBLY (27059)
10 11
14
7
812231
13
15
9
6
11
5
NOTE: TO BE ASSEMBLED WITH
PIN CLOSER TO BLADE
4
452
ITEM QTY. PART # DESCRIPTION
1 4 765285 NUT-HNML 1”-14
2 8 750057 NUT-WHIZ 1/2-13 Z
3 12 4900-38 WASHER 12 GA.X1.015X2.5
4 3 726907 WASHER FLAT 1-14GA
5 8 802273 BOLT WHIZ 1/2 -13 X 2
6 4 730011 ZERK-GREASE 1/4-28 STR
7 1 27058 MOUNT, BLADE WELDMENT
8 4 27048 PIN WELDMENT
9 1 24237 CYLINDER,WELDMENT 10”
10 1 14132 PIN-CLEVIS
11 2 728004 PIN-COTTER 3/16 X 1-1/2
12 8 730077 BUSHING 1.25X1X1
13 1 28306 ARM, LIFT WELDMENT
14 1 28309 BLADE, WELDMENT
15 3 28303 ARM, BLADE
16 1 726906 WASHER FLAT - 1” 10 GA.
