Rayco RG1645S - Cutter Wheel Assembly

Parts Section
14
Rayco RG1645S Copyright © 2012 Rayco Mfg - All Rights Reserved
Printed in U.S.A.
1
2 22
3
18
9
TORQE TO 60 FT-LBS
USE BLUE LOCTITE
15
11
25
1915
20
26
27
14
7
21
8
13
6541228
4 5 6 16 23
24
1710
28597 SPACER,
BEARING

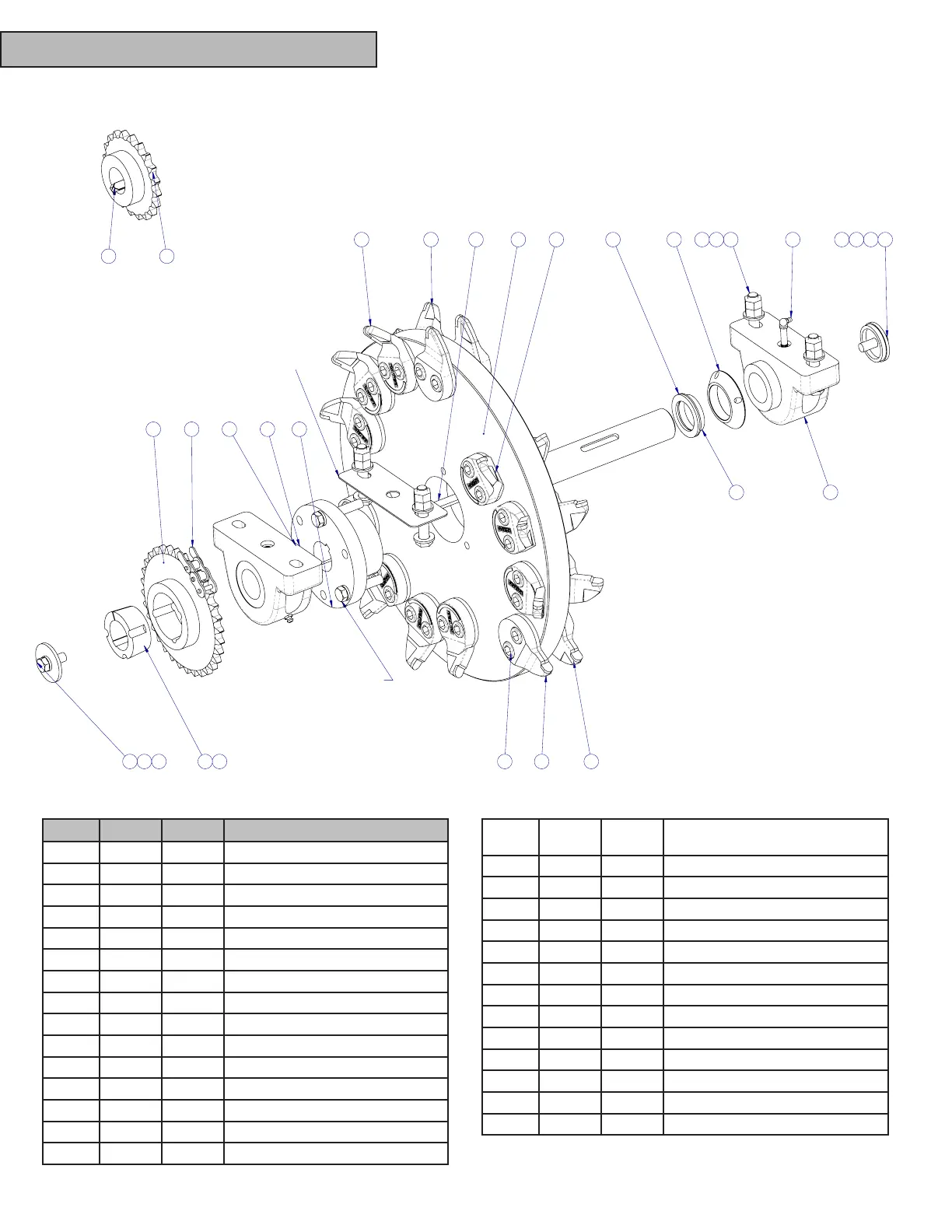

CUTTER WHEEL ASSEMBLY (28343)
ITEM QTY. PART # DESCRIPTION
1 1 130003 BUSHING-E 1-3/4
2 1 2583-04 3/8 KEYSTOCK X 1.75
3 2 761402 BEARING-PB 1-3/4
4 2 4900-33 WASHER 7 GA. X .531 X 2.25
5 2 726502 WASHER LOCK 1/2
6 2 722503 BOLT HEX 1/2-13 x 1 1/4
7 9 2933c TOOTH, ONE PIECE, C-BORED
8 9 2933t TOOTH, ONE PIECE, TAPPED
9 1 8562 BUSHING C.W. SHAFT
10 8 724602 NUT HEX 9/16-18 GR8
11 1 21914 GEARBOX KEY
12 1 22394 1/4” X 1.765” X 2.130”
13 3 3144C TOOTH, ONE PIECE, C-BORED
14 3 3144T TOOTH, ONE PIECE, TAPPED
15 2 763481 WASHER FLAT 1-3/4-10 GA.
16 1 762434 BUSHING-TAPER LOCK 2012 X 1-
3/4
17 8 801494 WASHER, 9/16”
18 4 722627 BOLT HEX 9\16-18 X 3-1/4 GR8
19 2 27356 BEARING COLLAR
20 2 761415 WASHER FLAT 1-3/4-14 GA.
21 24 718014 BOLT-POCKET 2 3/4 1960 S
22 1 28531 SHAFT, CW
23 1 2583-09 3/8 KEYSTOCK X 1 1/4
24 1 28584 CHAIN-DRIVE ASM #60 45SJRS
25 1 802266 SPROCKET-CHAIN 30T
26 1 28562 REWORK, SPROCKET
27 1 28515 CUTTER WHEEL
28 1 802262 ZERK-GREASE 1/8”NPT 90DEG
29 1 730080 GREASE ZERK 1/8 PTF STR
