Parts Section
22
Rayco RG1645S Copyright © 2012 Rayco Mfg - All Rights Reserved
Printed in U.S.A.

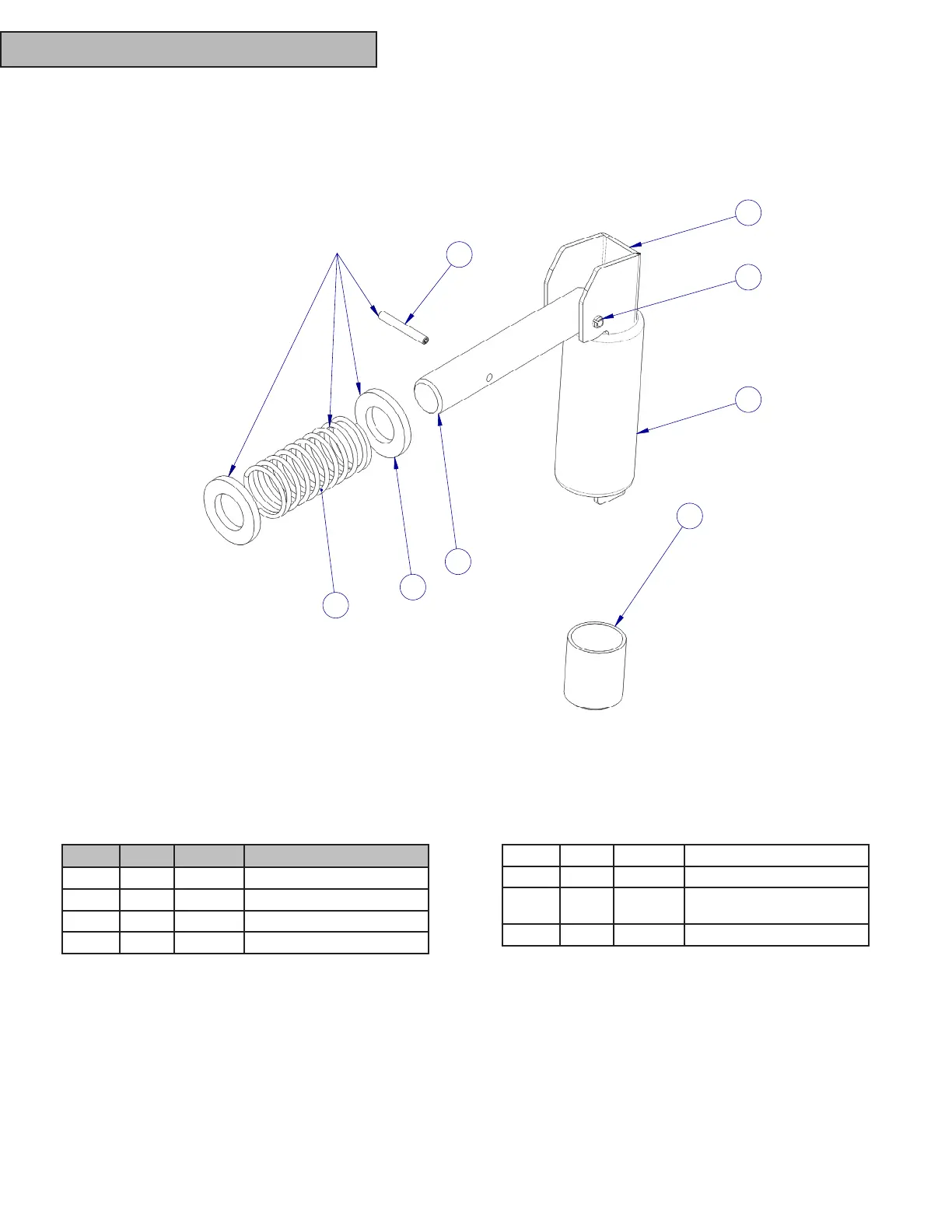

SWING-OUT LATCH ASSEMBLY (24644-A)
ITEM QTY. PART # DESCRIPTION
1 1 24642 HANDLE PIN
2 1 24643 HANDLE
3 1 730086 PIN-ROLL 3/16” X 1/2”
4 1 801045 BLACK END CAP
5 1 28354 GRIP FOAM 3/4” ID X 3”
6 2 4900-11 WASHER 10GA .640 X 1.125
7 1 730075 PIN-ROLL 1/8 X 1 HARD-
ENED
8 1 630012 SPRING - LOCK 3/4”
3
1
2
4
5
6
7
8
NOTE: PRE-ASSEMBLE ALL EXCEPT
FOR BOTTOM PIN AND SPRING
To Next Page
