User Guide of RFL-C3000XZ~RFL-C12000XZ
3 Installation
3.1 Dimensions
The mechanical dimensions of RFL-1500/1500-ABP，RFL-2000/2000-ABP，RFL-3000/3000-ABP，
RFL-2000/4000-ABP ， RFL-4000/2000-ABP ， RFL-4000/4000-ABP and RFL-6000/6000-ABP are
shownas follow:
a) The dimensions of the RFL-1500/1500-ABP，RFL-2000/2000-ABPare shown in Figure 1 (taking
RFL-1500/1500-ABP as an example).

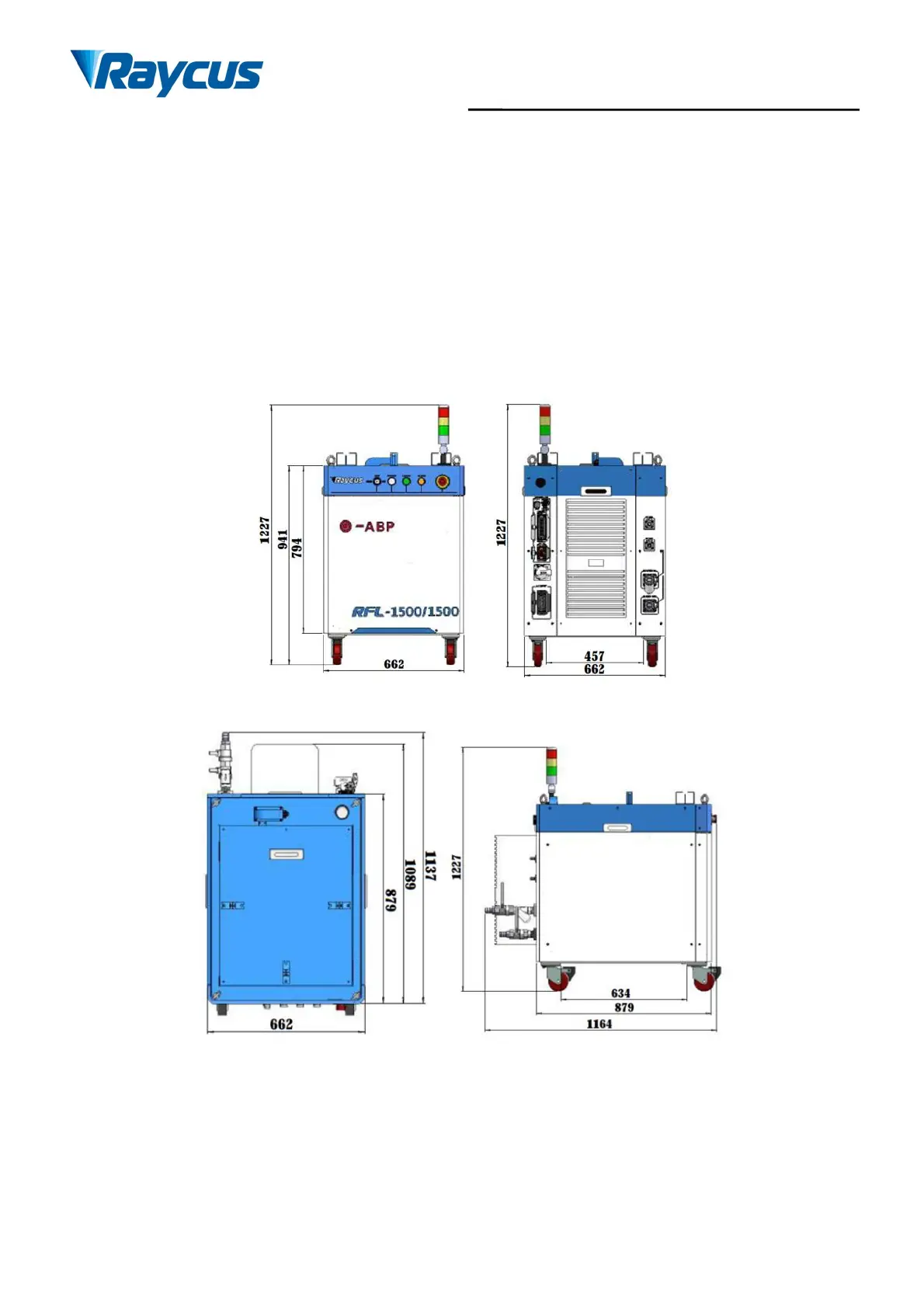

Figure 1.a - Front and rear view
Figure 1.b - Top and leftside view of the product
Figure 1 Dimensions of RFL-1500/1500-ABP
Those two models of RFL-1500/1500-ABP and 2000/2000-ABP share a same cabinet, henceforth
the same dimensions of 670×990×1160mm (width × depth × height, including casters and rings,
excluding the stats lamps), and the weight is about 250kg for RFL-1500/1500-ABP, and about 280kg
for RFL-2000/2000-ABP.
