Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C3000XZ~RFL-C12000XZ
5.1.1 AD Mode Enable
When the AD mode is enabled, the power of the laser is determined by the analog voltage of 1 or 2
feet of the XP4; if the AD mode is not enabled, the power of the laser can be set by the Raycus Laser
Control System or by sending the “SDC XX” command.
5.1.2 Emission External Control Enable
When the emission external control is enabled, the laser emission is determined by the level difference
between the pins of MOD+, MOD- in the XP2 port; if the emission external control is not enabled, the laser
emission and shutdown are determined by the output button in the Raycus Laser Control System, or send
“EMON” command to turn laser emission on, and send “EMOFF” command to turn laser emission off.
5.1.3 Guide laser (Red Guide Beam) Control
In“ON” mode guide laser can only be turned on/off by using Raycus Laser Control System, or by
sending command of “ABN” (on)/ “ABF” (off).
When the guide laser is turned on, the laser will turn off the “Ready” signal, and the green indicator
of “Status Lamp” will turn off. When the guide laser is turned off, the laser “Ready” signal will resume
immediately, and the green indicator of “Status Lamp” will be lit on.
5.1.4 Programming Mode
In“ON” mode, when the current program number of the laser is not 0, the laser runs in the
“Programming” mode.
Please use the Raycus Host Computer Software to edit the waveform and select the pre-run program
number.

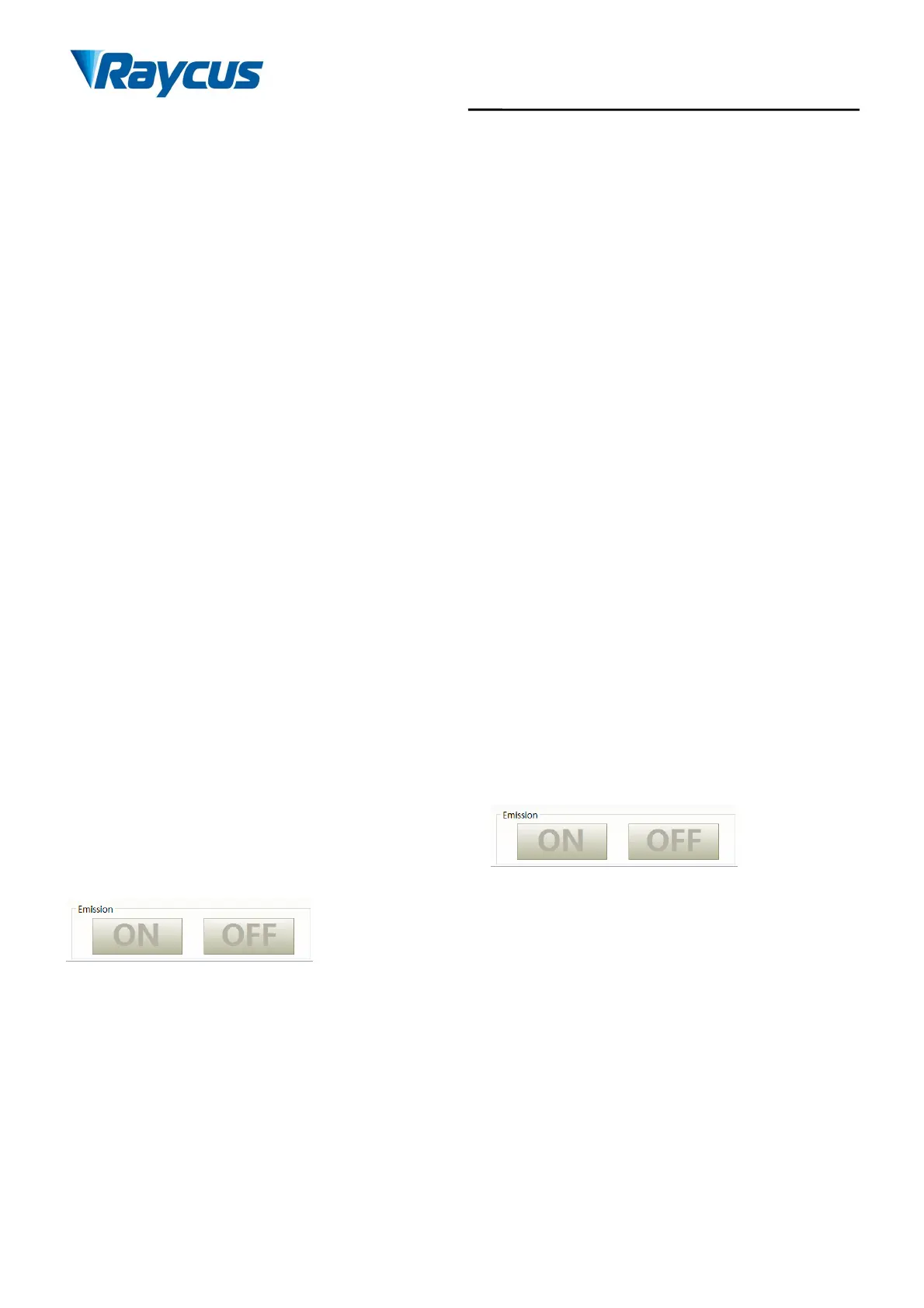

When the laser is in the internal control mode, press the “ON” button, or
send the “EMON” command, the laser will start to run the program, send “EMOFF” or press the
“OFF” button can terminate the laser emission at any time；
When the laser is in “External Control” mode, the rising edge of MOD starts the program to start
execution, and the falling edge of MOD can terminate the program at any time
5.2 REM Mode
5.2.1 AD Mode
When the Pin A1 and Pin A6 of the XP1 port are both set high, the laser runs into the “AD” mode, and
the current laser emission power is determined by the analog voltage of Pin 1 and Pin 2 of the XP4 port.
