Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C3000XZ~RFL-C12000XZ

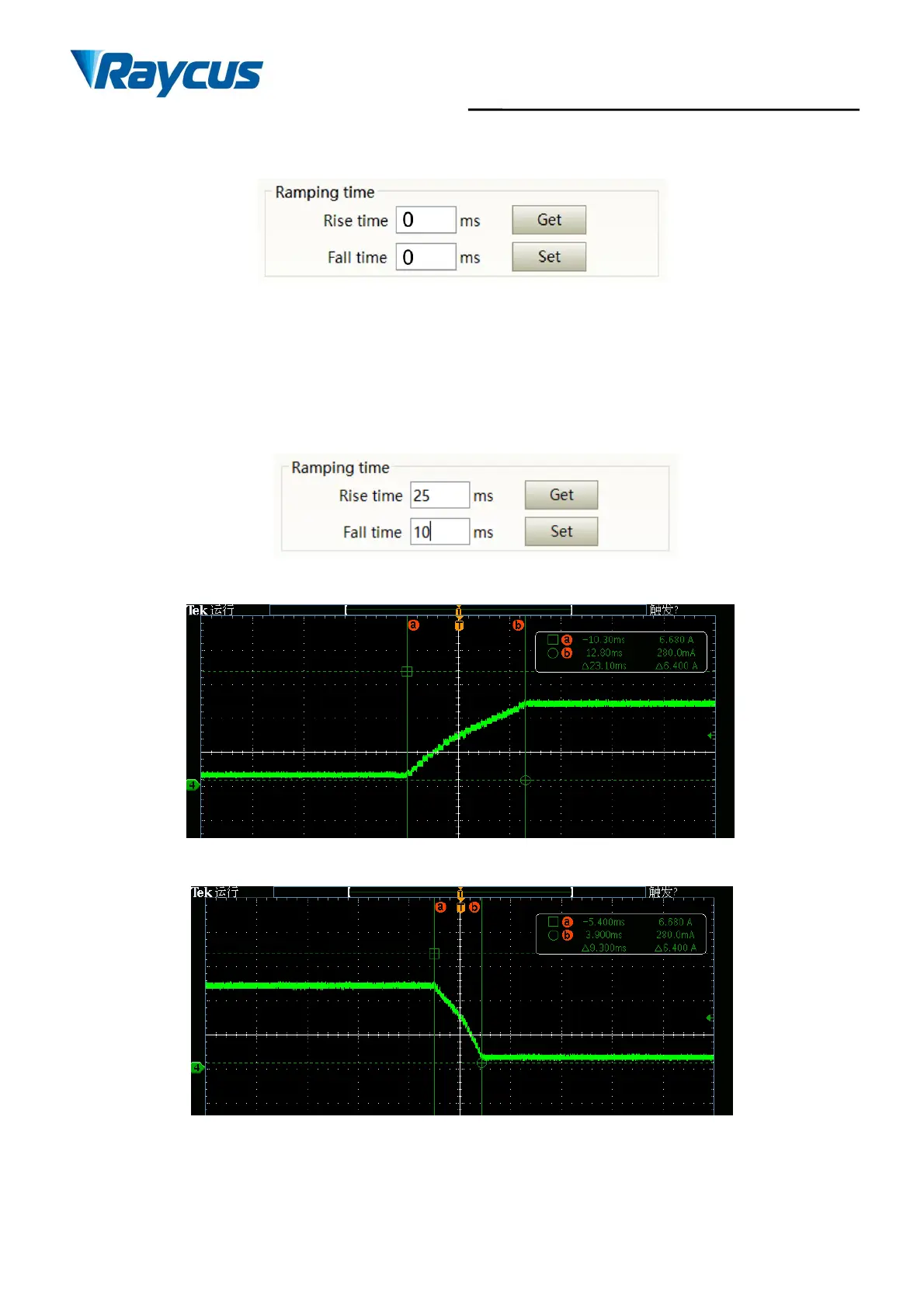

8.3.5 Power Slow Rise & Down Parameter Setting Area
Figure 43 Slowrise and fall parameterarea
Click to read parameters, users can read the power rise and fall time stored in the laser. Click on set
parameters to set new power rise and fall times.
When the rise and fall time are all set to 0, the power ramp-up and ramp-down function is automatically
turned off; when one is not 0, the ramp-up and ramp-down function is automatically turned on, for example:
Figure 44 Slow rise and fall setting
Figure 45 The power ramping time rise
Figure 46 Thepowerramping time fall
