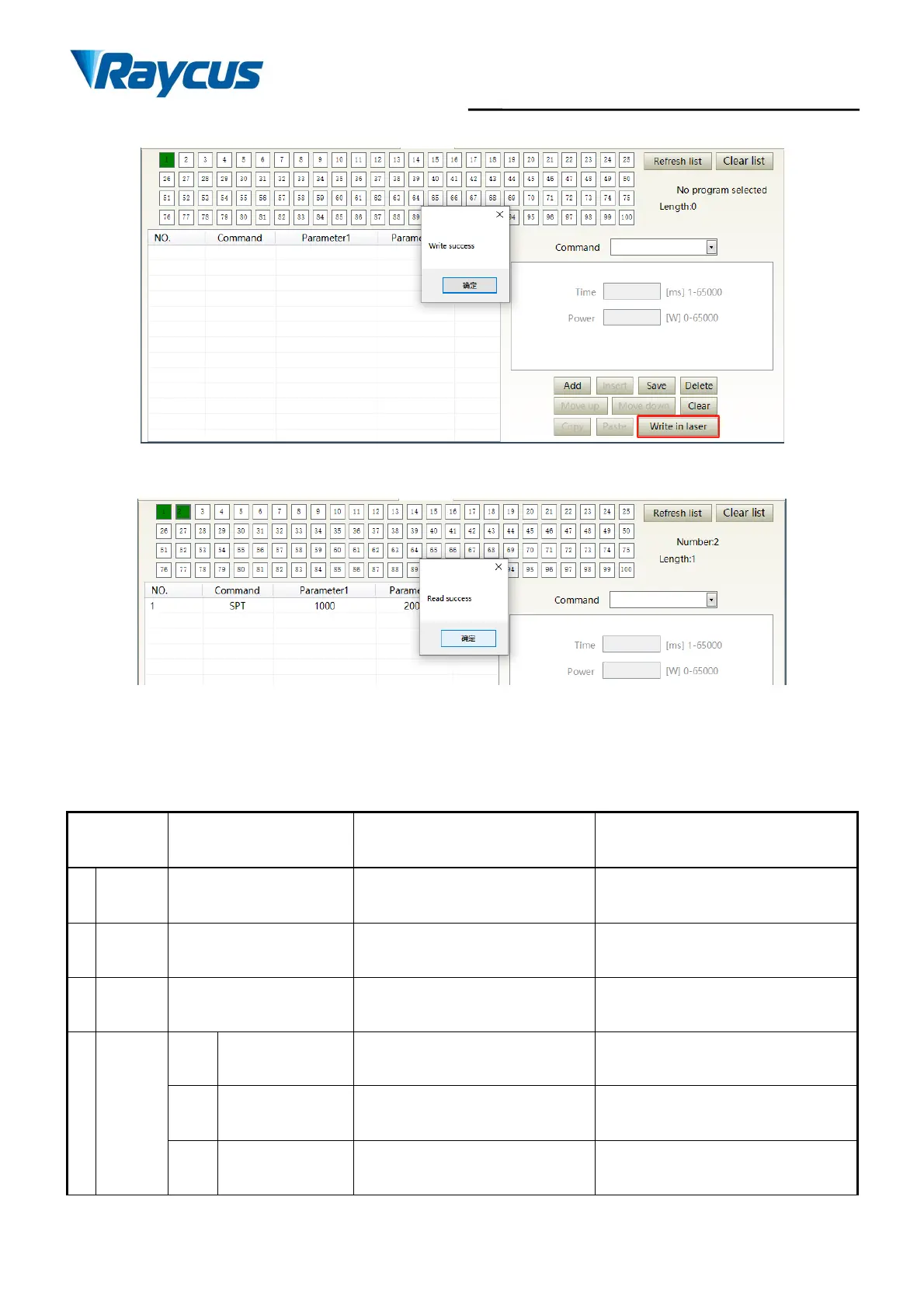

Figure 74 Step 4: After editing all commands, click“Write Laser”
Figure 75 Step 5: New waveform number will turn green when usersre-click the“RefresherList”
8.13.5 Command Explanations
Table 16 Command explanations in laserworkingstatus
Code (1
Byte)
Parameter1(2 bytes)
Parameter 2 (4 bytes)
Note
1
Stop
none
none
The program end command. the last
command must be this command.
2
SPT
0～65000 (ms)
0～65000W
Change power to 2 in time 1
3
SPR
0～65000(W/ms)
0～65000W
Change power to 2 in power change
ratio 1
4
WAIT
1
Wait for sync
signal low level
Null
2
Wait for sync
signal high level
Null
3
Wait for sync
signal rising
Null
