Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C3000XZ~RFL-C12000XZ
The high-level time of MOD must be greater than the program running time. If MOD gives a falling
edge in advance, the Raycus Laser Control System will display that the laser program is abnormally
terminated.
6.5 Set the Power Analog Quantity in REM Mode to Control the Laser Emission

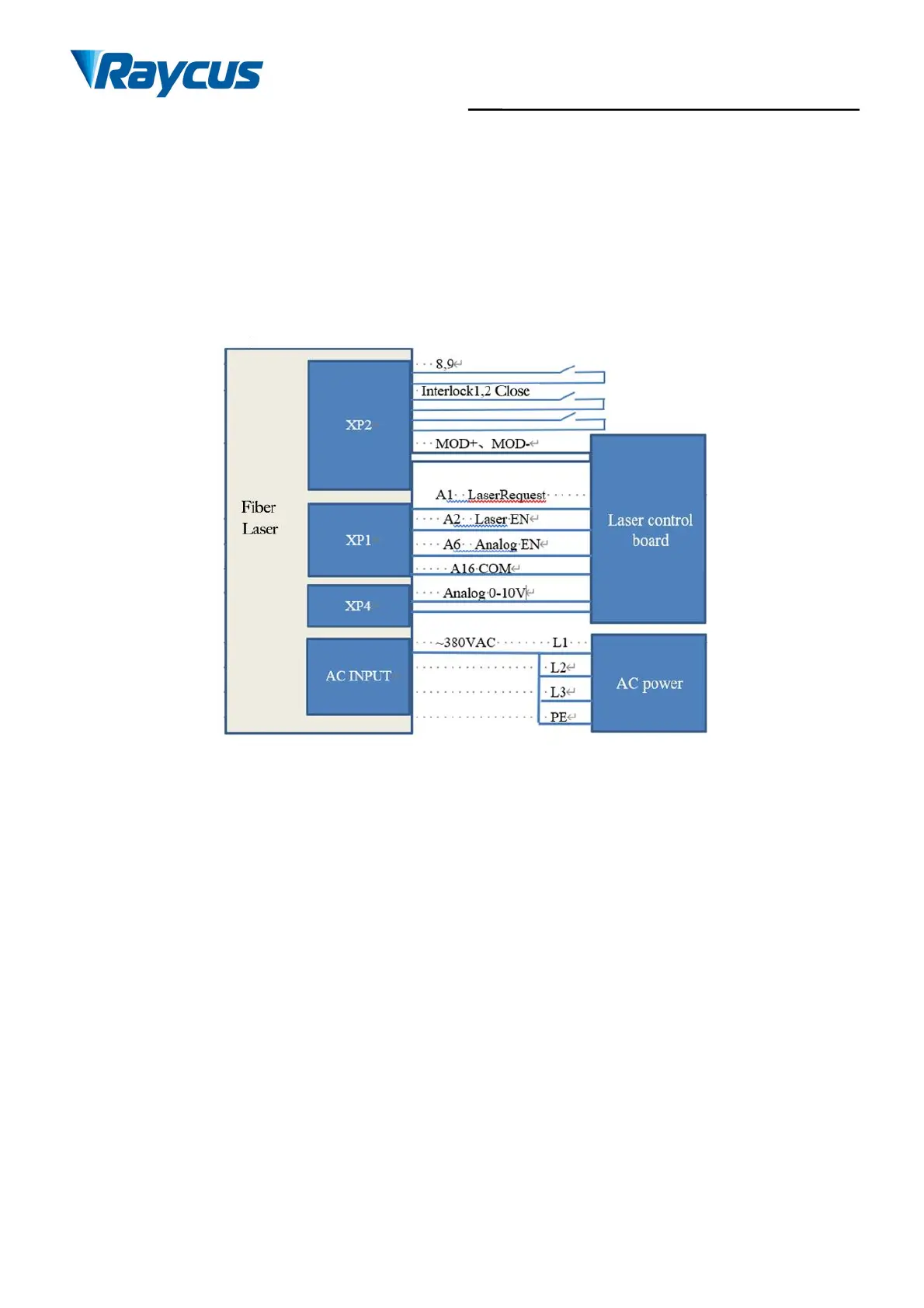

Figure 25 REM mode power and laser emission are externally controlled wiring diagram
Operation method:
a) Turn the knob switch on the rear panel to “ON”;
b) Turn the key switch to “REM”;
c) Short-circuit pin 8/9 on XP2;
d) XP1-A1 connects to 24V, XP1-A6 connects to 24V;
e) Connect XP1-A5 to 24V and turn on the guide laser; after checking the optics, connect XP1-A5 to
0V and turn off the guide laser;
f) XP1-C1 is connected to 24V, and the main power is turned on (users can also directly press the
LASER button, or the host computer software clicks the main power “ON”);
g) Waiting for “Ready”;
h) XP1-A2 connects to 24V, and the control board outputs analog and MOD signals.
