Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C3000XZ~RFL-C12000XZ
4 Using the Product
Please visit Raycus official website to download the latest Raycus Laser Control
Software and its user manual as well. Website: http://www.raycuslaser.com
4.1 Front Panel

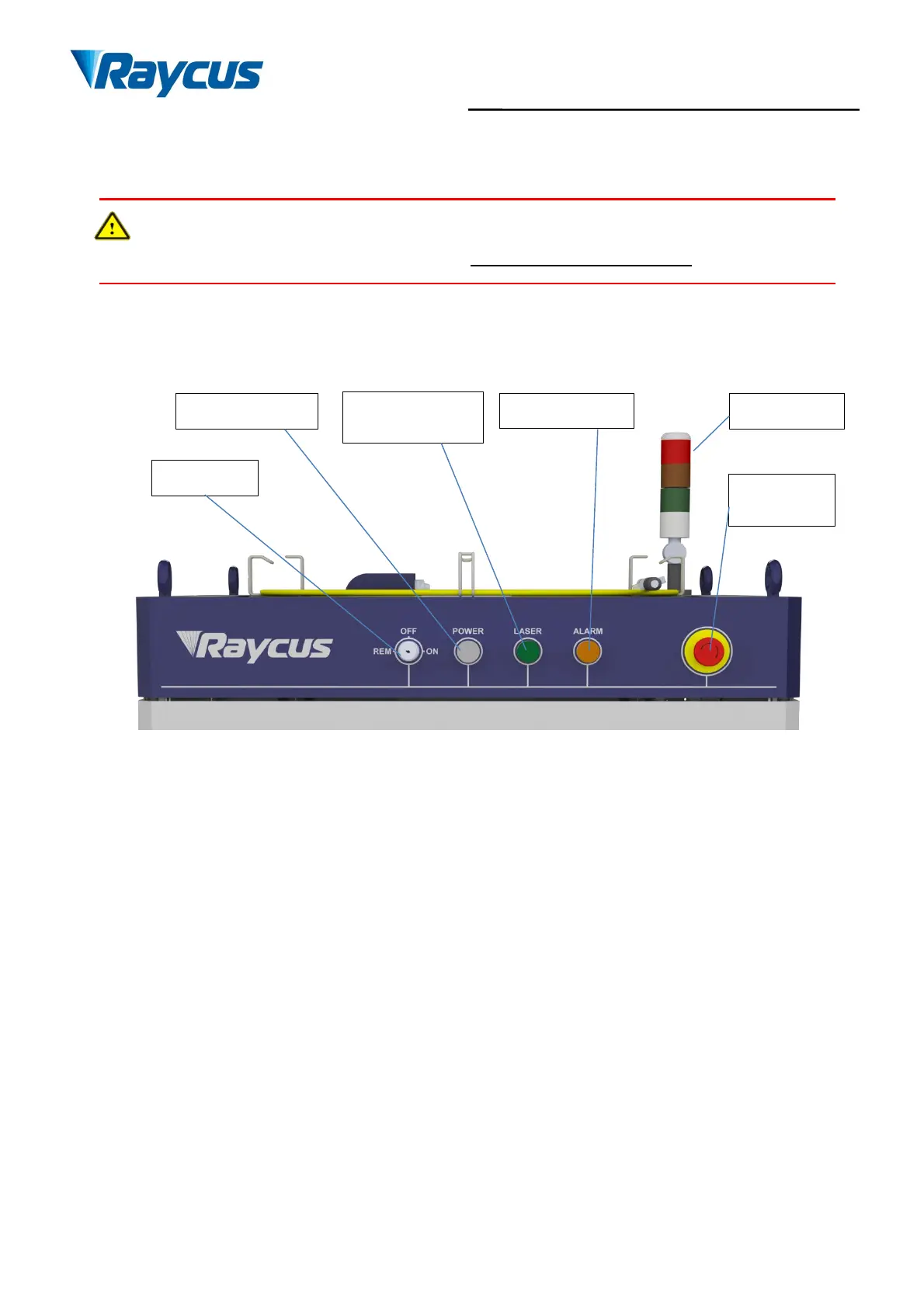

Figure 8 Front panel
REM/OFF/ON (Key Switch)：
The main power switch of the product, to be operated with a key (enclosed as a standard accessory).
Insert the key and turn clockwise to the “ON” position, the main control part of laser source is powered
on and the Power Indicator (White) lights on.
Or turn counterclockwise to “REM” position, and short-connect the Pin 8 and Pin 9 of XP1 Port to
work in “REMOTE” mode. And Hardwire control mode is also accessed with key at “REM” position.
POWER Indicator (White)：
When main control system is powered on, this indicator will illuminate white.
LASER Button/Indicator (Green)：
When main control system is powered on (Power Indicator illuminates white) and all Interlock ports
are connected properly, press this button to power on the main power module of laser source and this
indicator will illuminate green.
To Next Page
