Wuhan Raycus Fiber Laser Technologies Co., Ltd.

User Guide of RFL-C3000XZ~RFL-C12000XZ

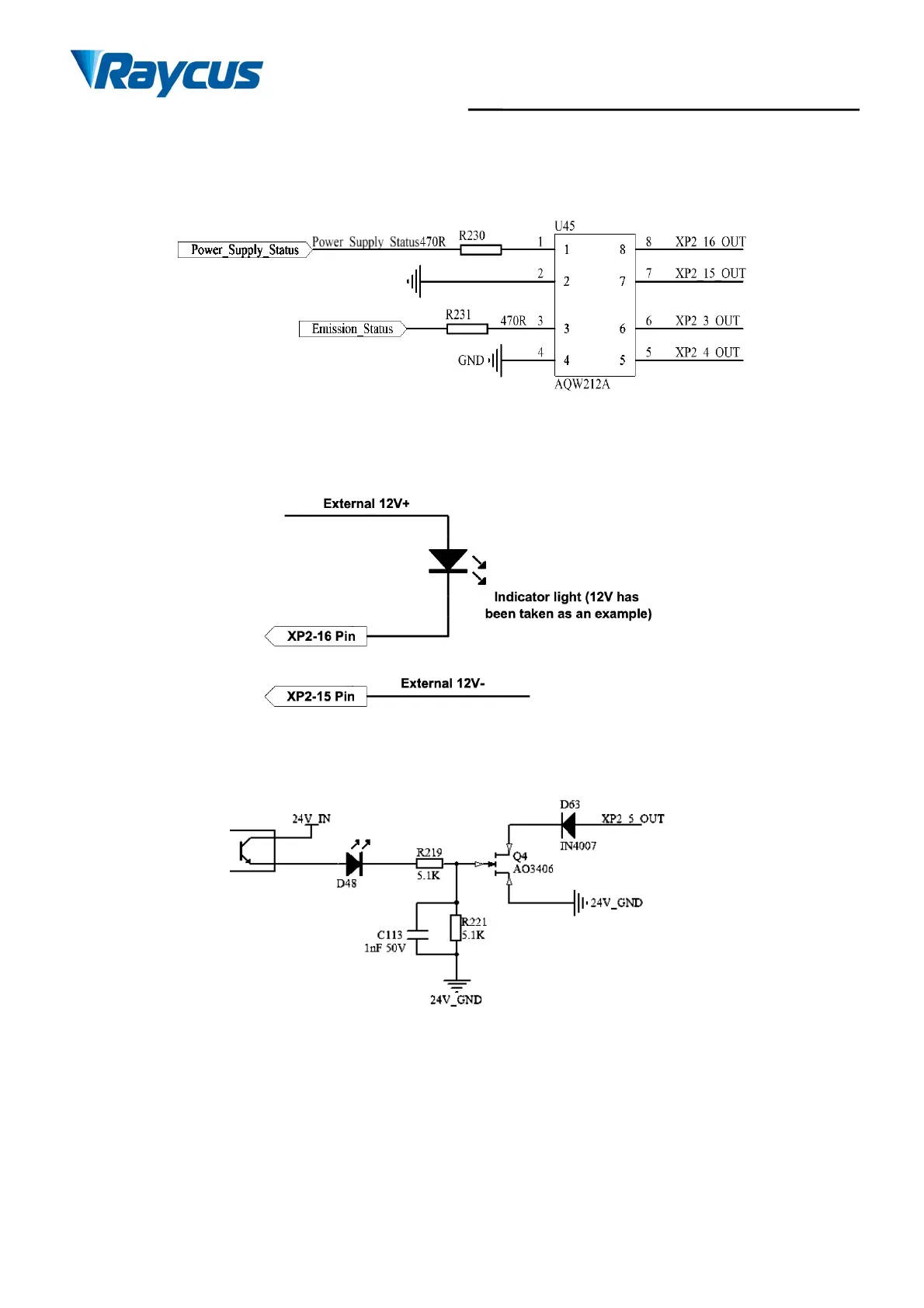

XP2's 3/4 laser emission indication, 15/16 is the main power supply output indication, the internal

circuit diagram is shown in Figure 13.

Figure 14 Internal schematic diagram

Recommended wiring diagram (12V has been taken as an example)

Figure 15 Recommended wiring diagram

c) Active Light Indicator and Main Power on Indicator

Figure 16 Internal circuit diagram

Table of Contents2
Safety Information6
Security Label6
Laser Safety Grade7
Optical Safety7
Electrical Safety7
Other Safety Guidelines8
Product Description9
Features9
Package Parts9
Unpacking and Inspection9
Operation Environment10
Attentions11
Specifications11
Installation13
Dimensions13
Installation Requirements16
Cooling Requirements18
Requirements for Coolingwater18
Requirements for Deliverycable Coolingsystem19
Other Requirements20
Using the Product21
Front Panel21
Rear Panel22
Power Connection24
Control Interface Definition26
Safety XP2 24 Pininterface27
Hardwire XP130
XP3 RS232 Interface33
XP4 Analog Interface33
XP5 Ethernet Interface33
Interlocking34
Schematic Diagram of the Laser Electrical Circuit34
Operation Start-Ups Sequences35
Control Mode Selection36
On Mode37
AD Mode Enable38
Emission External Controlenable38
Guide Laser (Red Guide Beam) Control38
Programming Mode38
Rem Mode38
AD Mode38
External Control39
Guide Lasercontrol39
Programming Mode39
Laser Wiring Mode and Operation Steps40
Internal Controlin on Mode40
Laser Operatingin External Control Mode40
In on Mode, the Laseremission Poweris Externallycontrolledby Analogsignal41
Laser Operatingin Programming Mode42
Set the Power Analog Quantityin Rem Mode to Controlthe Laser Emission43
Power Communication Setting in Rem Mode44
Programming Mode in Rem Mode45
Rs232 and Internet Communication Commands47
Port Configuration47
Laser Communication Protocol (Ethernet Port & Serial Port)47
Raycus Laser Control System Instructions52
Main Interface of the Software52
Multi-Laser Control52
Add/Deletelaser53
Delete Laser54
Modify Laser IP54
Main Working Status Display55
Laser's Cumulativeoperatingtimedisplayarea56
Laser Workingstatusdisplayarea56
Laser Power-Up, Mode Selection, Laser Emission Control Area57
Programming Mode Test Area58
Power Slow Rise & down Parameter Setting Area59
Laser Emission Parameters Read the Settingsarea60
Laser Parameter Displayarea61
Alarm Type Display Area61
Ring Light Parameters Setting62
Raycus Laser Control Software Operating Mode Selection63
Language64
Authorization (Time-Limited Locking)64
Authorization in Usermode64
Authorization in Authorization Mode65
About67
Log (in Diagnosticmode)68
Download Log68
Download Record of Historicalfault68
Downloaded Fileaddress69
Module Parameters (in Diagnosticmode)69
Programming Settings (Waveform Editing)70
View the Number of Wavebarsinside the Currentlaser70
Check Waveformcontent70
Empty Allwaveforms71
Edit Waveform71
Command Explanations73
Warranty, Repair and Return75
General Warranty75
Limitations of Warranty75
Service and Repair75
