Raycus RFL-3000/3000-ABP - Page 46

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C3000XZ~RFL-C12000XZ
42
g) Waiting for “Ready”;
h) XP1-(A8-14) select the number of the pre-executed program, set XP1-A2 high to start executing
the program.

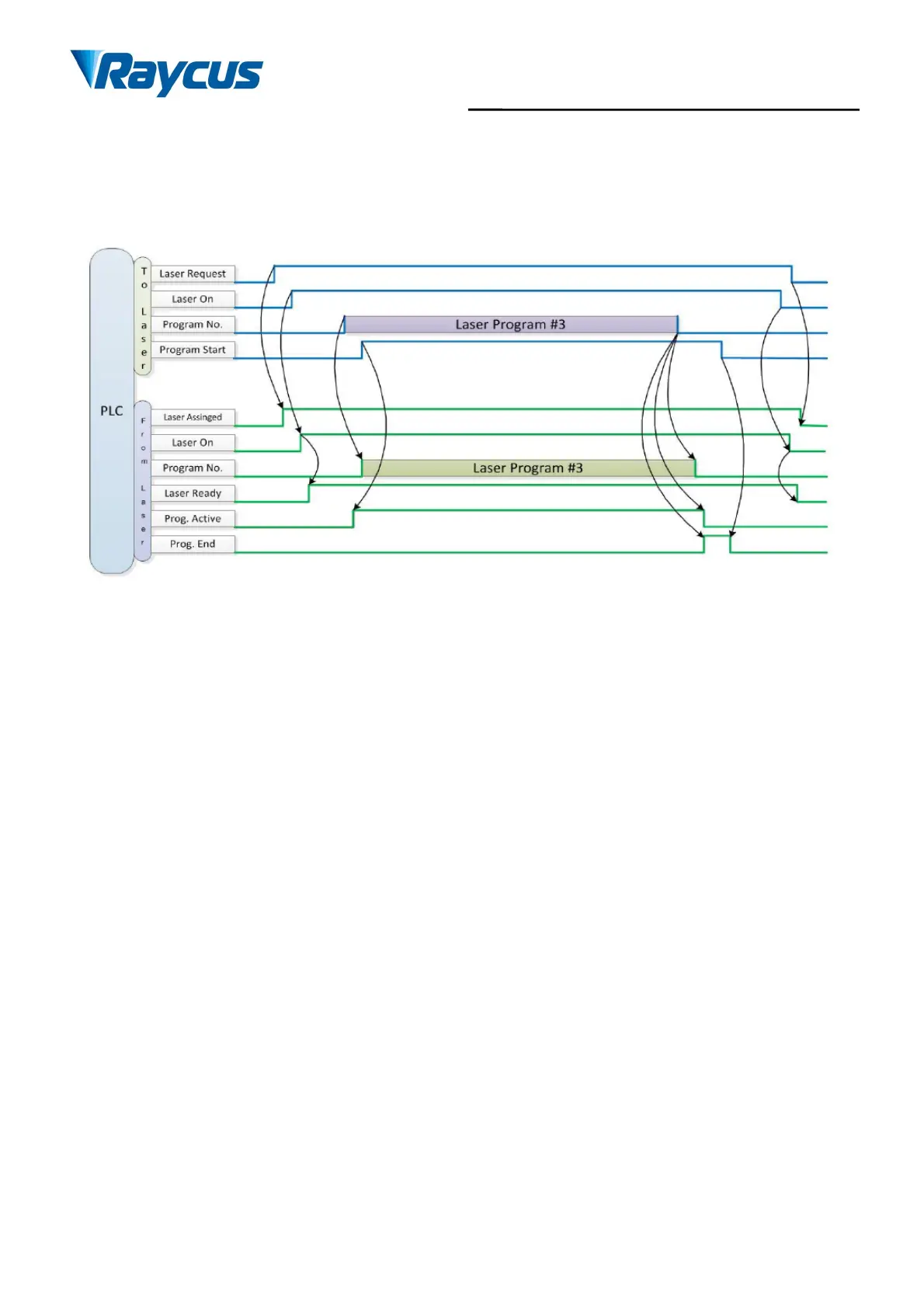

Figure 29 Timing diagram
