Raycus RFL-C1000 User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd
User Guide of Global Version 2000 W CW laser
Raycus User Guide | Installation
11
14

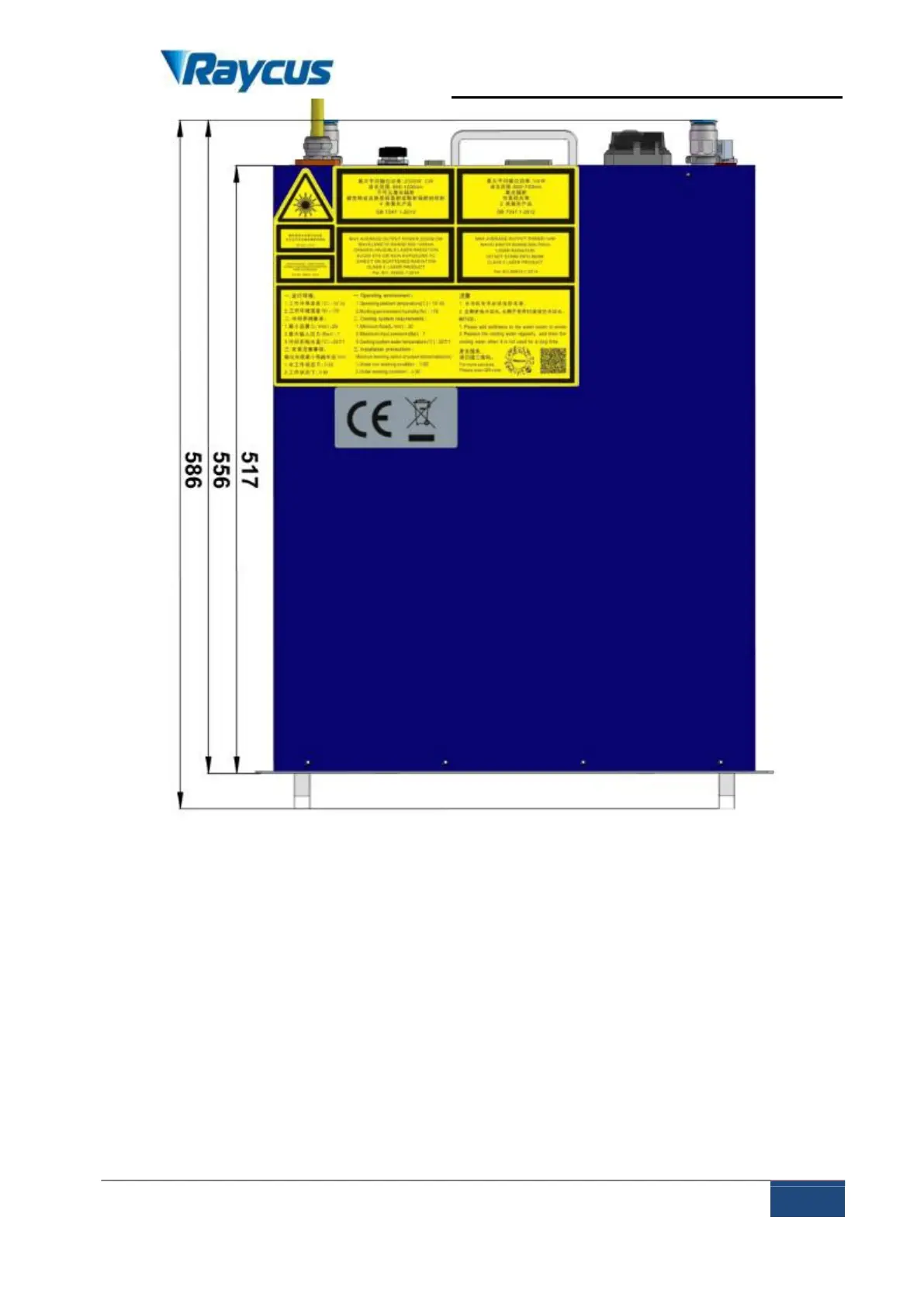

Figure 2 (c) Top view (Unit: mm)
3.2 Size and installation of output optical cable
Raycus continuous wave fiber laser uses different laser output cables
according to different laser models.
3.2.1 Global Version 2000W CW laser output optical cable
The output cables of Raycus Global Version 2000W CW lasers are
self-made QBH output cables. The specific appearance dimensions are shown in
Figure 3 below:
