Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL- RFL-C3000S-CE
37
g) When the duty cycle of the internal output frequency of the laser is set, set the output
frequency/duty cycle/pulse width; (the output light is determined by the modulation
signal of pin 15.16 and the output frequency and duty cycle set by the upper computer
software); the internal output frequency of the laser is not required When the duty cycle
is used, the default setting parameters are that the frequency is 100Hz and the duty cycle
is 100%.
h) Modulation signal (15, and 16-pin) provide a high level to turn on the laser.
4.8.2.3 Power communication setting parameters in the external control mode, external
modulation, external envelopes

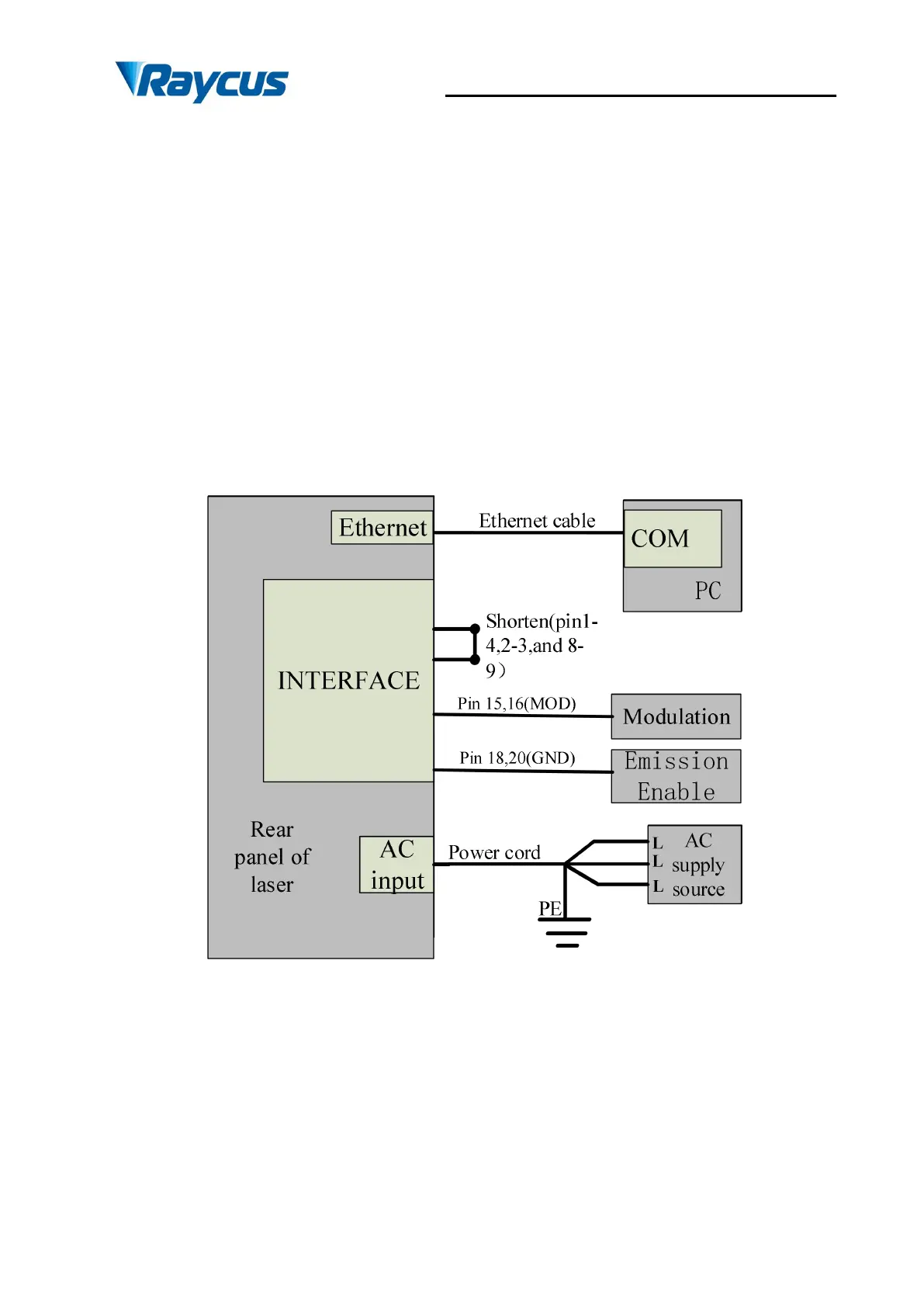

Figure 21 In the external control mode, the power internal control, out -of -light external control,
and the external enable wiring chart
Operation method:
a) Shortconnect the 8 and 9 pins on the INTERFACE 24 pins (the control board is powered
on);
b) Open the laser clientware;
