k) Open the laser clientware;
l) Click “the guide laser ON” button to view the guide laser;
m) Open the AD mode
、
external modulation mode, turn off the external enable.
n) Waiting “Ready”;
o) When the internal output frequency occupation ratio of the laser, set out the light
frequency/duty cycle/pulse width; (out of the output of the light and the output ratio of the
upper machine software set by the 15.16 -footed signal and the upper machine software); the
internal output frequency of the laser is required for At the time of occupation ratio, the
default setting parameter is 100Hz, and the duty cycle is 100%;
p) Control board card output analog (12, 14 pin) and outlet signals (15, 16 pin).
4.8.2.5 In the external control mode, the power simulation amount is set in external
settings, external modulation mode, external enable

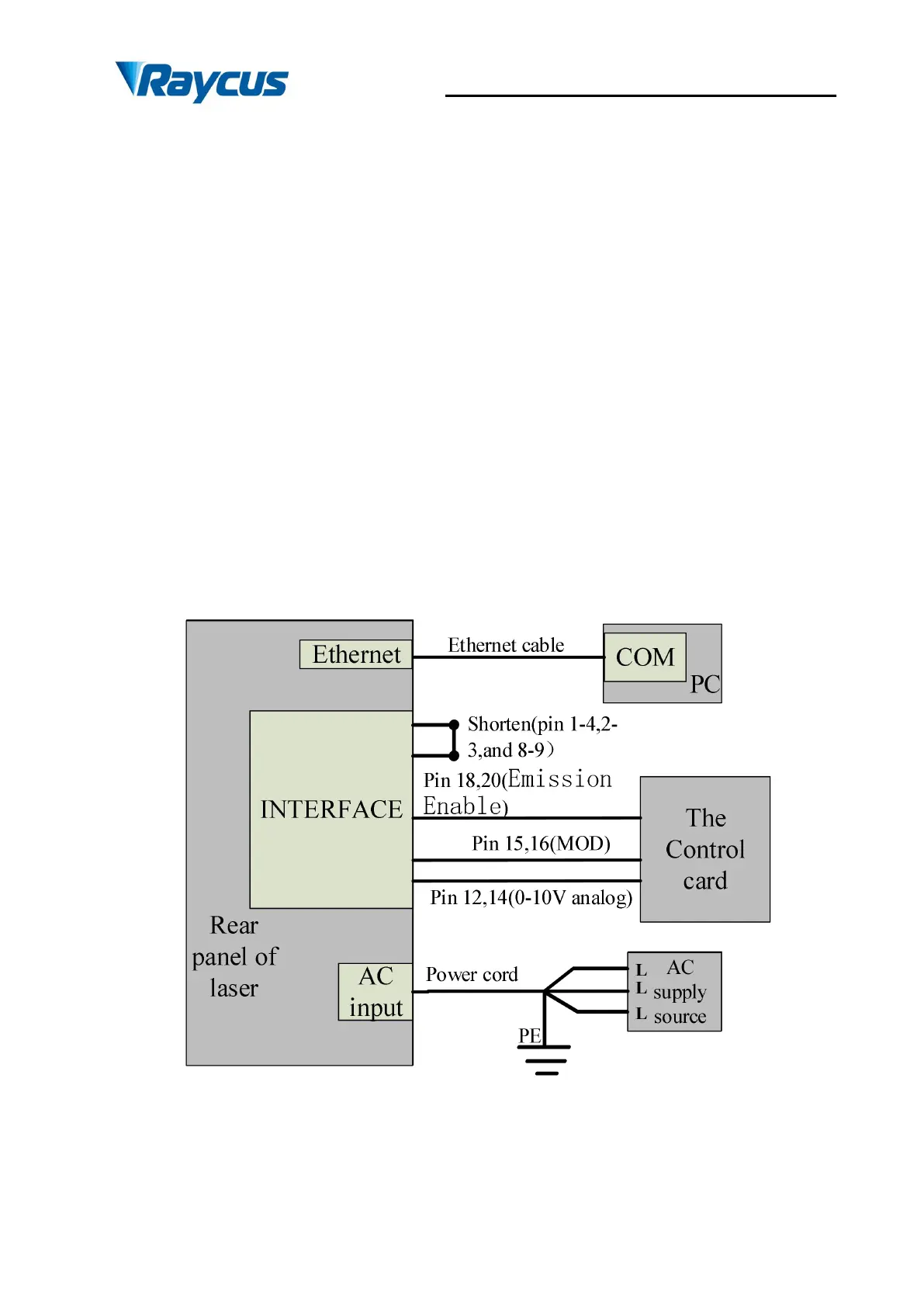

Figure 23 In the external control mode, the power, light, and enable all control wiring diagrams
Operation method:
