32
Figure 17 Alarm information interface of main control module
Connect the network through the system parameter interface of the main control module:
AP mode: the laser is a WiFi hotspot (the hotspot name and password can be configured).
After the mobile phone is connected to the laser WiFi hotspot, you can use Ruike's mobile app to
view the real-time status of the laser;
STA mode: the laser can automatically connect to the mobile phone hotspot or wireless router
(the hotspot name and password can be configured). The laser establishes a connection to Ruike's
cloud server through WiFi and sends real-time data, which can realize the functions of remote
viewing and parameter setting.

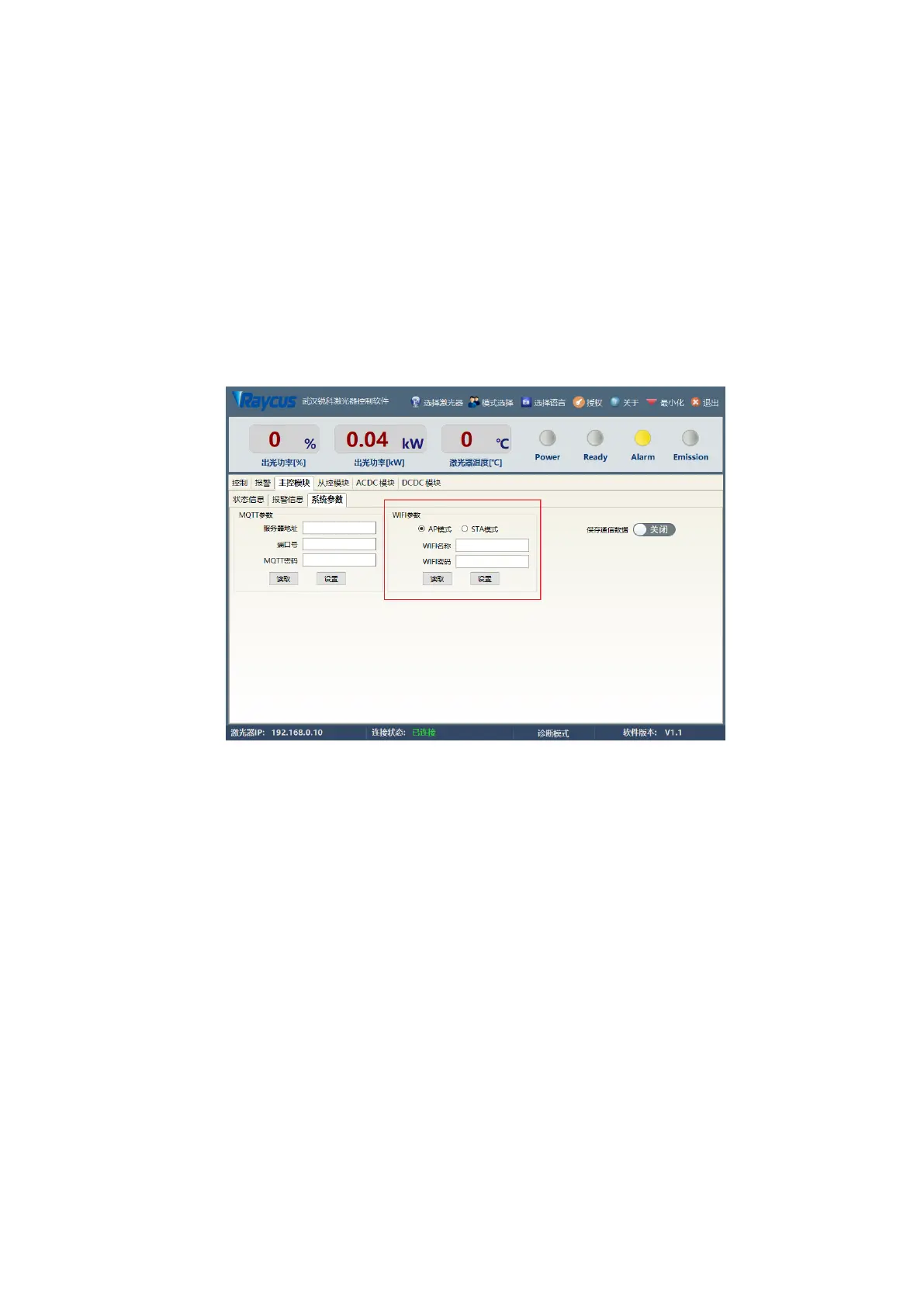

Figure 18 Main control module system parameter interface
4.7.9 Slave control module
The slave control module contains all the status, alarm and optical status of the slave control
module. The status and alarm information are automatically refreshed. The refresh interval does
not exceed 100ms. The data of the slave control module needs to be forwarded by the master
control module, so there is only the currently selected page In the slave control module, the upper
computer software will automatically read and refresh the status and alarm information, reduce the
communication frequency, and avoid occupying too many resources of the master control module.
