Raymarine AXIOM 2 PRO - SideVision, DownVision and CPT-S Transducer Connection; CHIRP Transducer Connection

Splitpairtransducers:Extensioncablesfittedbetweenthetransducerand
the‘Y’cablemustbefittedinequallengthpairs(i.
e.:eachtransducer’sfinal
cablelengthmustbethesame).
12.2SideVision,DownVisionandCPT-S
transducerconnection
SideVision™,DownVision™andCPT-Stransducerscanbeconnectedtothe
display’sRV/RVMTransducerconnectionusingtheRV25-pintoDV9-pin
adaptorcable(partnumber:A80490).

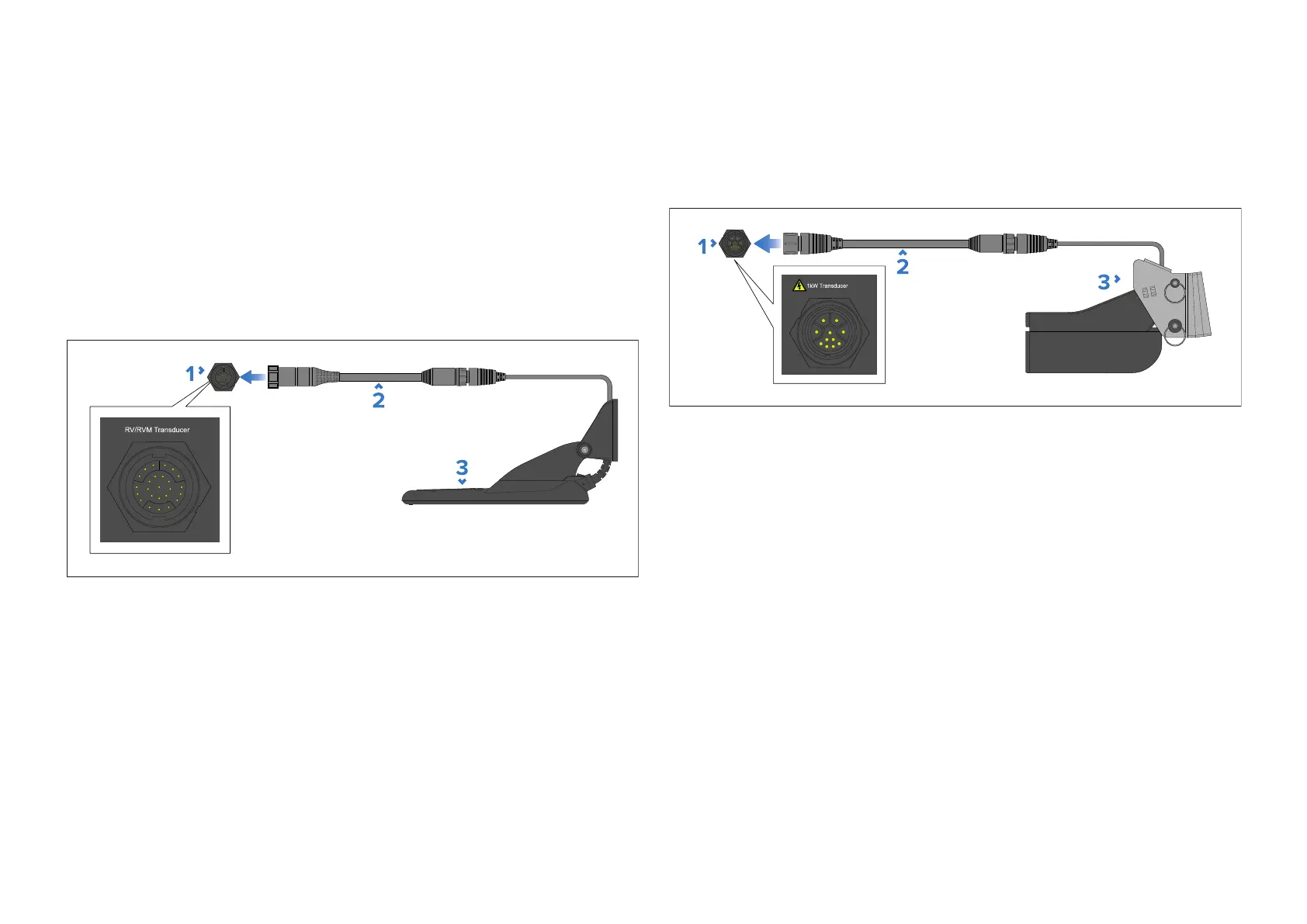

ExampleDownVision™transducerconnection
1.Display’ sRV/RVMTransducer25-pinconnector.
2.RV25-pintoDV9-pinadaptorcable(partnumber:A80490).
3.Transducer(DownVision™transducerillustrated).
ForalistofcompatibleSideVision™transducersreferto:
p.22—SideVision™transducers
ForalistofcompatibleDownVision™transducersreferto:
p.23—DownVision™transducers
ForalistofcompatibleCPT-Stransducersreferto:
p.23—CPT-Sconicalbeamtransducers
12.3CHIRPtransducerconnection
CHIRPtransducerscanbeconnecteddirectlytothedisplay’s11-pin1kW
Transducerconnection.B75&B175transducersrequireanoperationcable
(partnumber:A80328).
ExampleCHIRPtransducerconnection
1.Display’s1kWTransducer11–pinconnector.
2.Operationcable(partnumber:A80328)isrequiredforB75&B175
transducers.
3.CHIRPtransducer.
ForalistofcompatibleCHIRPtransducersreferto:p.23—CHIRPtransducers
64
