Where am I?
Monitoring a course....
Card No. 12
FIND SHIP GOTO ROUTES TRACKS PRESENTATION
?
More information.....
See the 'Using the CDI' chapter of the Reference Manual
D6734_2
What do the steering instructions tell me?
Boat off center line.
Correction arrow(s) indicate direction to steer
to maintain course to target waypoint.
The greater the XTE, the more arrows.
On course
Boat on center line.
Zero XTE
0ff course
XTE
0.027nm
XTE
0.000nm
How do I monitor my course?....
Your course is shown on the chart application whilst motion mode is active.
Using COG and heading vectors (Press DATA - CHART VECTORS - COG/HDG VECTORS).
Use the Course Deviation Indicator (CDI). With your display receiving accurate heading and position
information, you can to monitor your course and accurately steer to a target waypoint.
3nm North-Up Relative Motion Local
Boat
On course
line
Target
waypoint
Direction to
next waypoint
Target waypoint
Correction
arrow
Status bar
'Rolling road'
CDI data

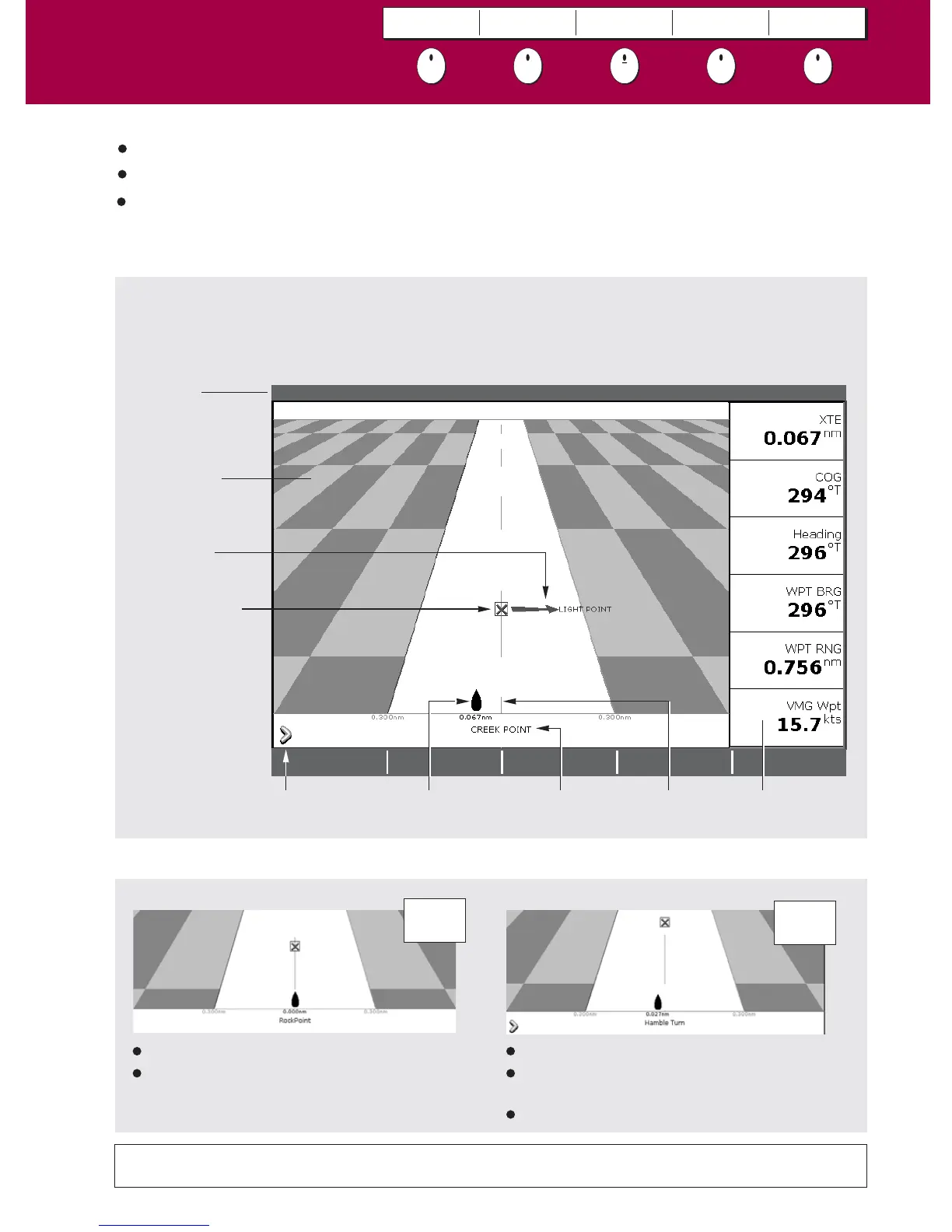

What does the CDI show me?....
The CDI gives a graphical representation of your boat's course. This 'rolling road' format represents
a width of sea equal to the Cross Track Error (XTE) limits that you have specified in the Setup menu.
As you travel towards the target waypoint, the checkered pattern moves down the screen to
simulate movement at a rate proportional to your boat's speed.
