How do the controls work?
D6762_3
ERASE WAYPOINT SORT LIST
SET DEFAULT SYM
& GROUP...
WAYPOINT
GROUPS...
EDIT WAYPOINT…
EDIT DEFAULT
SET UP DEFAULT
SYMB GROUP
WAYPOINT AT
CURSOR
WAYPOINT AT
VESSEL
WAYPOINT AT
POSITION…
GO TO WAYPOINT
OPTIONS…
REVIEW AND EDIT
WAYPOINTS
WPTS/
MOB
PAGE
ACTIVE
MENU
DATA

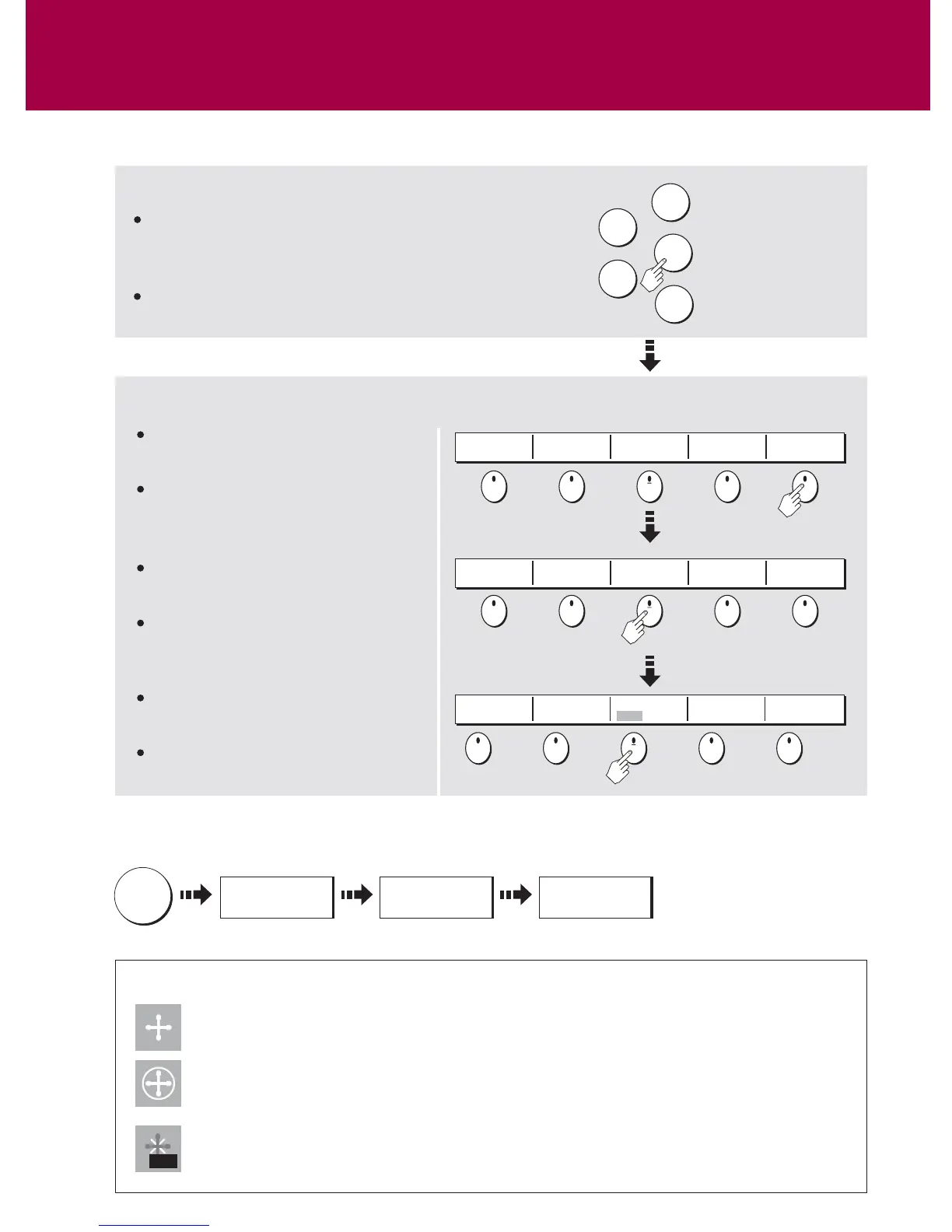

Example:
This example shows the
series of button and soft
key presses required to
change the waypoint
default symbol or group.
Access system functions or change what you see on-screen.
Within the text of this document they are written in bold capitals
e.g. WPTS/MOB.
Press and hold to access short cuts - see individual buttons on
facing page.
They change depending on application or
function being performed.
Press and hold MENU to display help
information for the currently displayed soft
keys.
Press the corresponding key (below the
screen) to select.
Further soft keys may be displayed.
If a key has several options, each press
will highlight the next option.
If a key displays a single value or a slider
above, use the rotary control to adjust.
Within the text of this document they are
written in capitals e.g. SORT LIST.
Buttons
Soft keys
D7366-1
D7368-1
WPT
The Cursor appears on the screen as a white cross.
To make it easier to locate on screen, the cursor changes to a circle with a cross in it, when it is
moved after a 10 second period of inactivity.
The cursor is context-sensitive. When it is placed over an object e.g. a waypoint or chart feature, it
changes color and a label or information associated with the object is displayed. When you place
the cursor over certain items, the soft keys change to enable you to access related operations.
WPTS/
MOB
REVIEW AND EDIT
WAYPOINTS ...
SET DEFAULT SYM
& GROUP...
SET UP DEFAULT
SYMB GROUP
This process of pressing buttons and soft keys to navigate to the required function, is simplified within this guide
and represented by a strip e.g.
The Cursor
General Operation
Using the controls
Card No. 2
To Next Page
