Raymarine E-Series Operating Guide

D6740_2
?
More information ....
See 'Using the Chart' chapter of the Reference Manual
How your boat moves on the screen is referred to as the motion mode. The default setting for
the chart is Relative Motion. This means that your boat is fixed on the screen and the chart moves
relative to your boat e.g.
PRESENTATION...
CHART MODE AND
ORIENTATION...
Press
Press
MOTION MODE
TM RM AR
Press
How do I change how my boat moves on the chart?
If necessary, you can change
the motion mode to True (TM)
or Autorange (AR), using the
PRESENTATION soft keys.
How do I change the chart orientation?
PRESENTATION...
CHART MODE AND
ORIENTATION...
Press
Press
ORIENTATION
H-UP N-UP C-UP
Press
The orientation of the chart refers to the relationship
between the chart and the direction that you are travelling in.
It is used in conjunction with motion mode (see below) to
control how your boat and chart relate to one another and how
they are displayed on screen.
The default mode for chart orientation is North Up (N-up). This
means that your chart is displayed with true north upwards. As
your heading changes the boat symbol moves accordingly.
If necessary, you can change the
orientation to Head Up (H-up) or
Course Up (C-up), using the
PRESENTATION soft keys.
North-up
What can I see?

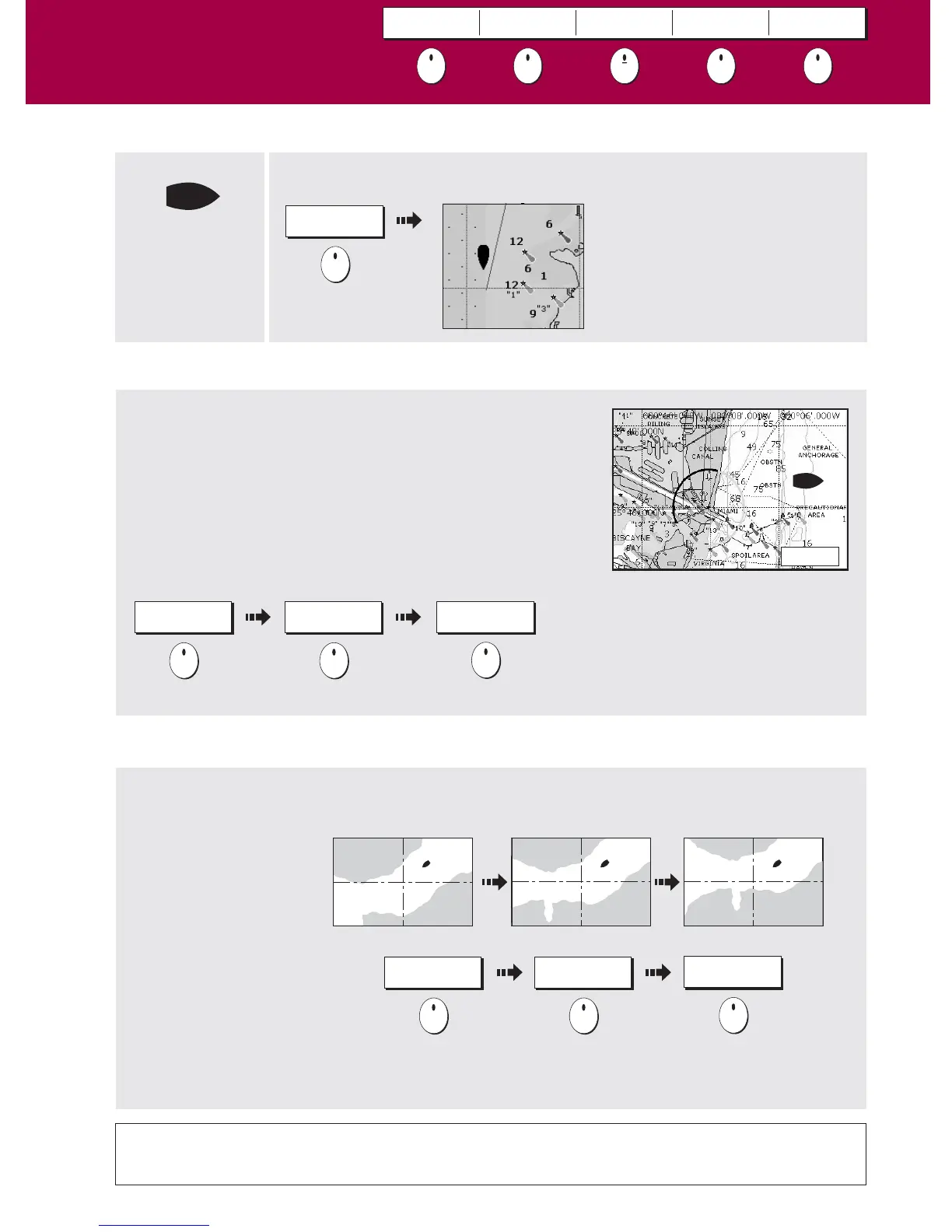

Using the chart ...
Card No. 6
FIND SHIP GOTO ROUTES TRACKS PRESENTATION
How do I find where I am on the chart?
FIND SHIP
Press
If you cannot find the boat symbol on the screen:
The boat symbol
indicates your
position.
When you pan the chart, motion mode is suspended. If your boat is not on screen, press FIND SHIP.
The screen automatically pans to
your boat's position and re-
activiates the motion mode (see
below - 'How do I change how
my boat moves on the chart').
