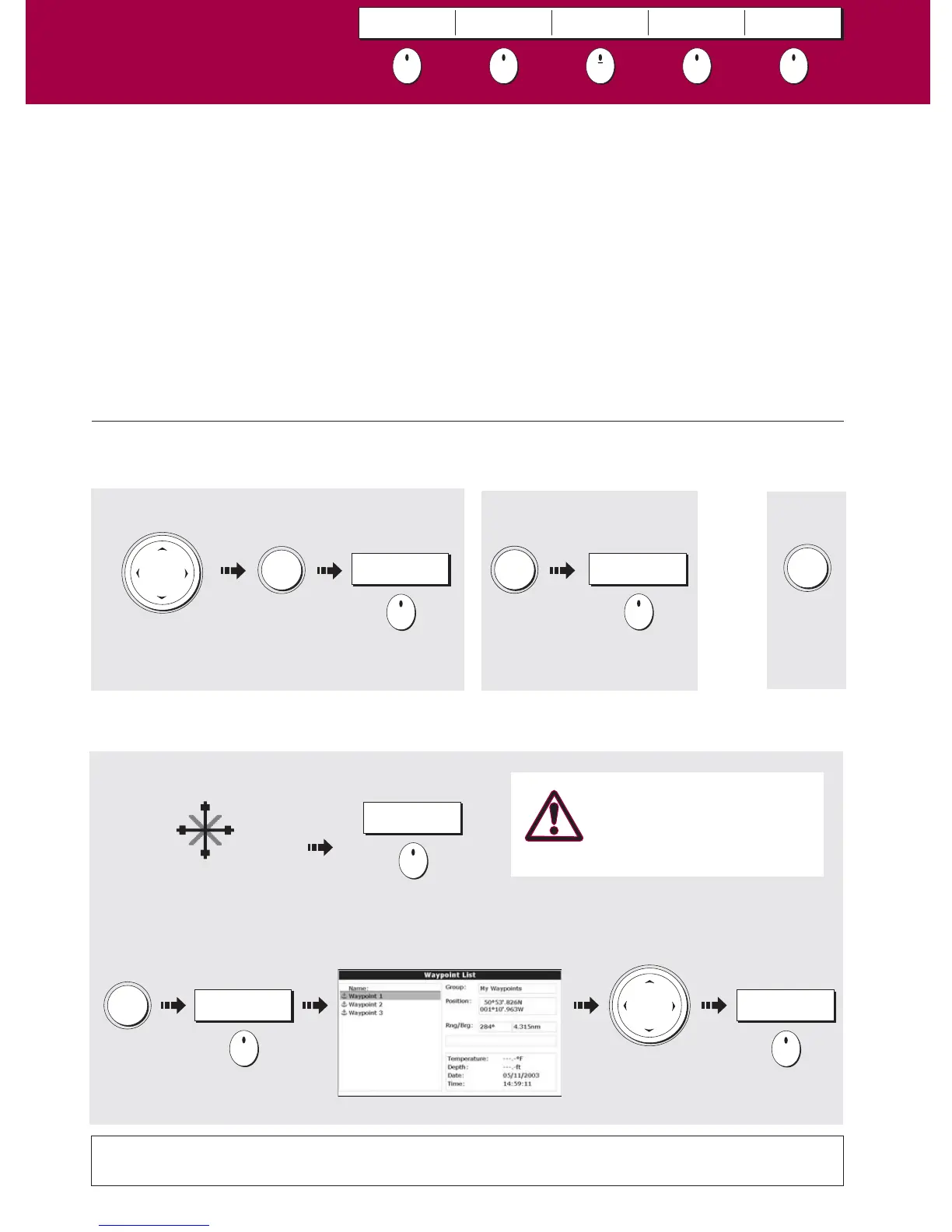

Raymarine E-Series Operating Guide

?
More information ...
See the 'Working with Waypoints' chapter of the Reference Manual
D6729_2
How do I navigate to a waypoint ...
Place the cursor over
the appropriate waypoint.
... using the cursor?
... using the waypoint list?
Highlight
required
waypoint
GO TO WAYPOINT
Press
WPTS/
MOB
Press
GO TO WAYPOINT
OPTIONS
...
Press
GO TO WAYPOINT
Press
WAYPOINT AT
CURSOR
How do I place a waypoint ...
... at the cursor?
... at the vessel?
... OR
Move cursor to
required position
using trackpad.
WPTS/
MOB
Press
Press
WAYPOINT AT
VESSEL
WPTS/
MOB
Press
WPTS/
MOB
Press x2
Press
What is a waypoint?
A waypoint is a position marked on a chart, radar or fishfinder screen to indicate a site (for fishing, diving
etc), or as a position to go to. You can place a waypoint at the cursor position, your boat's position or at
a specified position (using Lat/Long or Loran TD co-ordinates). Waypoints are represented in chart or
radar applications as an 'X' (this can be changed if required) and by a vertical line labelled WPT in
Fishfinder. The details of each waypoint are stored in a waypoint list which can hold up to 1200
waypoints. If you have networked two or more E-Series Displays, the waypoints are stored on the master
display and transferred to other displays via the SeaTalk High Speed network. If required, waypoints can
be archived to a CompactFlash card or transferred to another NMEA compatible instrument. Waypoints
can be renamed, edited, grouped, or erased, as necessary. To make full use of waypoint features, ensure
your display is receiving heading and position data.
Basic Navigation
Working with Waypoints
Card No. 7
WAYPOINT AT
CURSOR
WAYPOINT AT
VESSEL
WAYPOINT AT
POSITION ...
GO TO WAYPOINT
OPTIONS ...
REVIEW AND EDIT
WAYPOINTS
CAUTION
Always check that your route
to a waypoint is safe before
travelling towards it.
