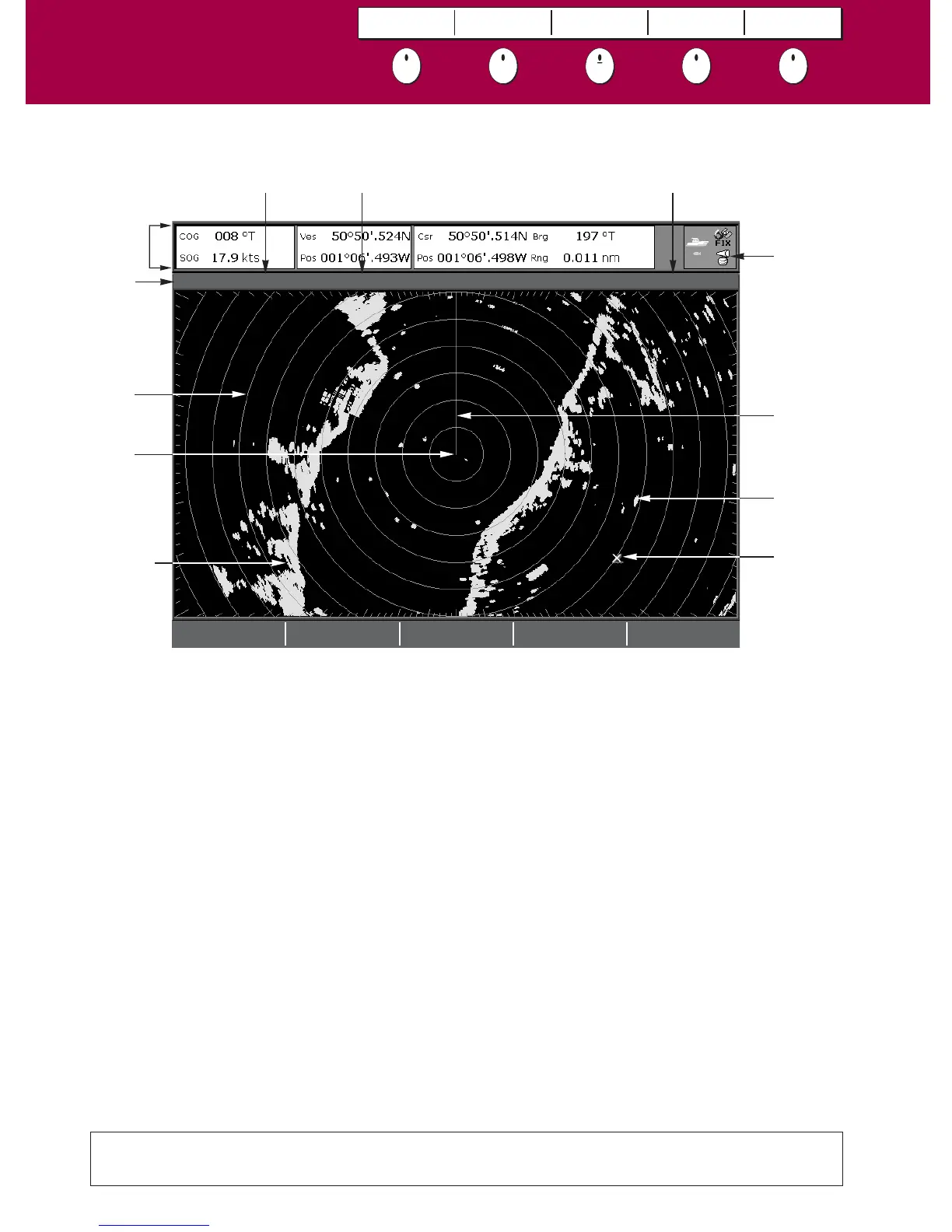

What does the radar show me?....
?
More information ....
See the 'Using the Radar' chapter of the Reference Manual.
3nm
Head-Up Relative Motion Rings ½nm
VRM/EBL… GAIN…
PRESENTATION…
TARGET
TRACKING…
TARGETS
DISPLAY…
Orientation
Data bar
Surface
vessel
Waypoint
D6731-2
Ship's
heading
marker
Icon
confirming
radar
connection
Range
ring
Landmass
Boat's
position
Range
Motion mode Range ring spacing
Typically your boat's position is at the centre of the display, and its dead ahead bearing is indicated by a
vertical heading line, known as the Ship's Heading Marker (SHM).
Remember that the radar picture may vary from visual observations that you make; a nearby small object
may appear the same size on the screen as a distant large object. However, with experience the
approximate size of different objects can be determined by the relative size and brightness of the echoes.
What is around me?
Understanding the radar
Card No. 9
VRM/EBL
TARGET
TRACKING
GAIN TARGETS PRESENTATION
To Next Page
