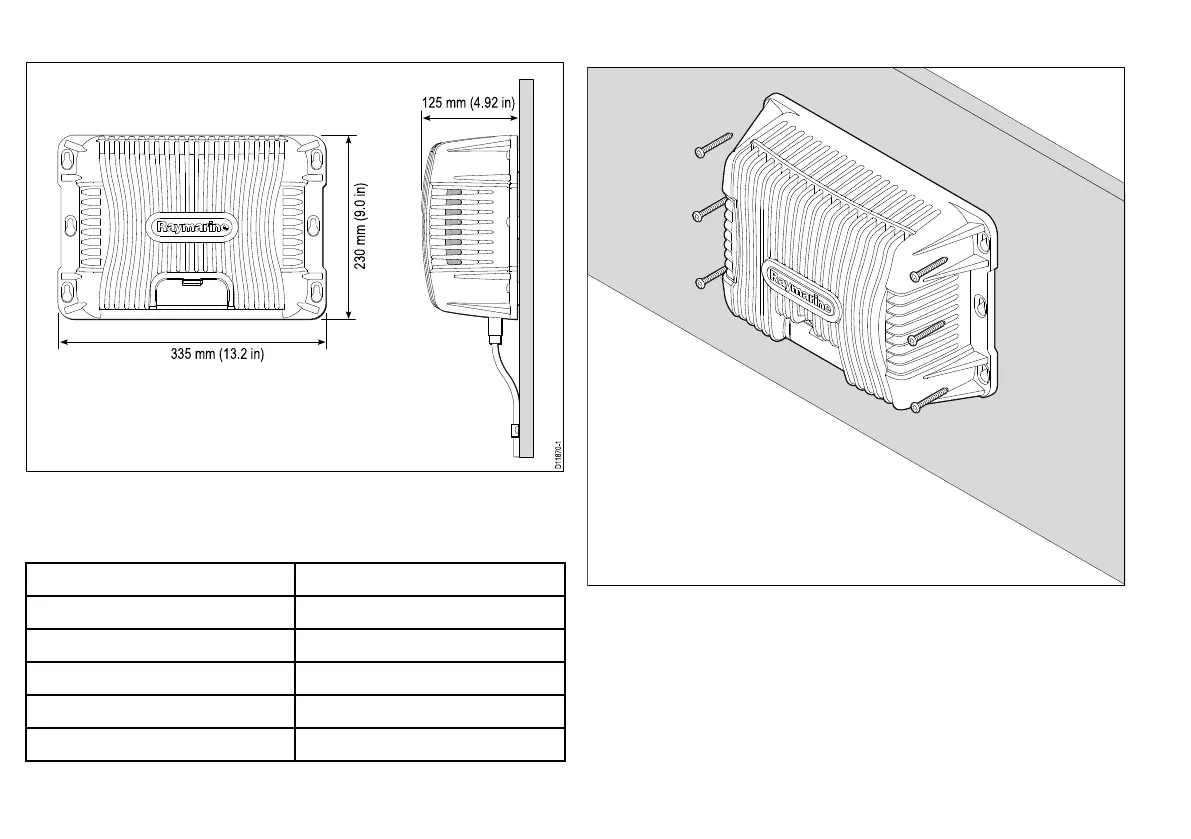

Dimensions
D11870-1
335 mm (13.2 in)
230 mm (9.0 in)
125 mm (4.92 in)
Mountingclearances
Allowthefollowingclearancesfromotherequipmentandsurfaces.
SideDistance
Top
100mm(3.94in)
Left100mm(3.94in)
Right
100mm(3.94in)
BottomEnoughtoallowcableentry.
Front
150mm(5.91in)
Mountingarrangement
78G-Seriesinstallationinstructions
