Raypak 5350 - Page 16

16
WATER IN (FROM POOL OR SPA)
FILTER
CHECK VALVE
CHEMICAL INTRODUCTION
WATER OUT (TO POOL OR SPA)
REQUIRED BYPASS. ADJUST TO PROVIDE 40-80 GPM FLOW THROUGH THE UNIT.
F10124
INLET AND OUTLET
ARE 2" UNIONS
PLUMB THE UNIT AFTER THE FILTER, AND BEFORE ANY CHLORINATORS.

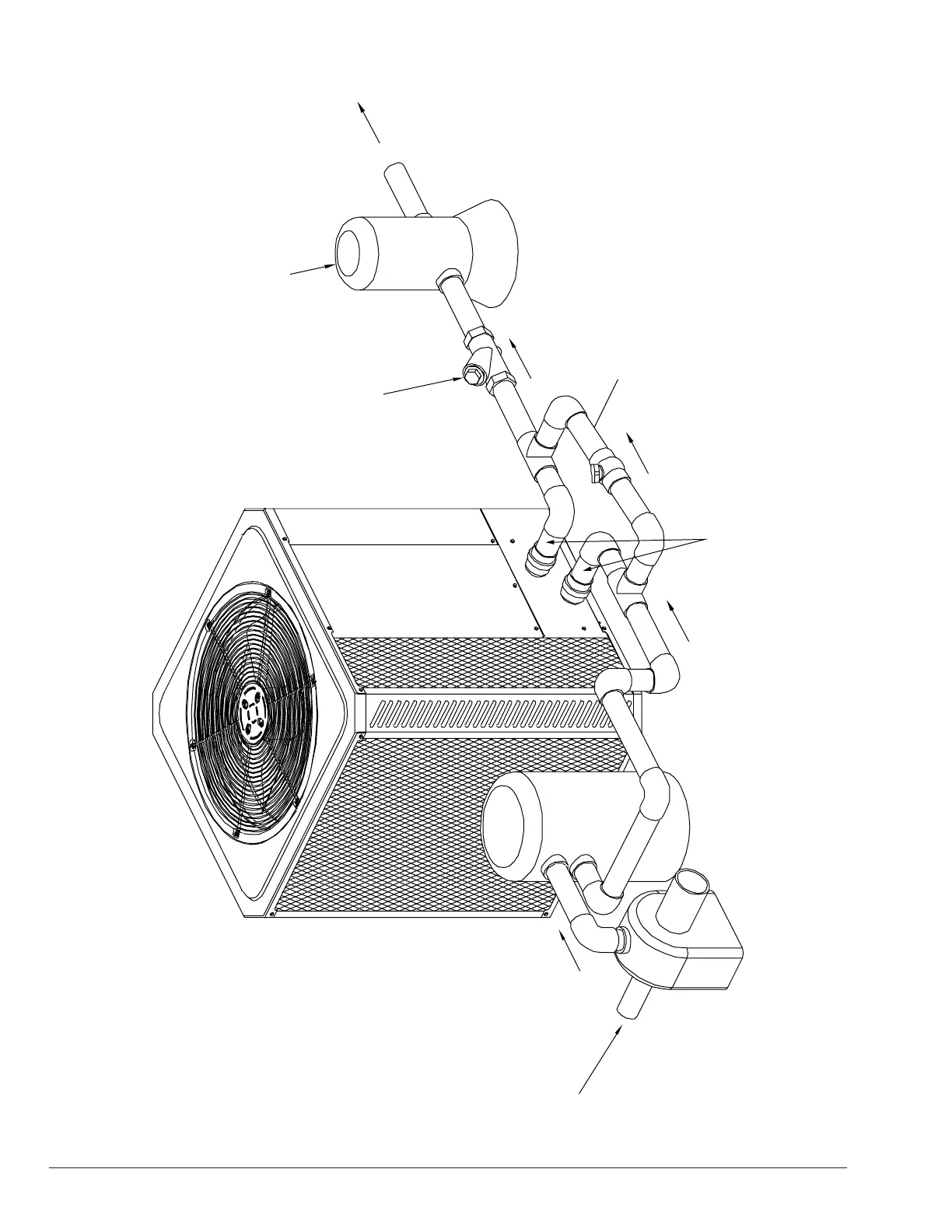

Figure 9. For Systems with Flow over 80 GPM (303 lpm)
