17
4 SYSTEM PIPE DIAMETERS,
OR 12" (30.5 cm) MAX,
WHICHEVER IS LESS
MINIMUM SYSTEM FLOW IS 120% OF
THE FLOW REQUIRED BY EITHER UNIT.

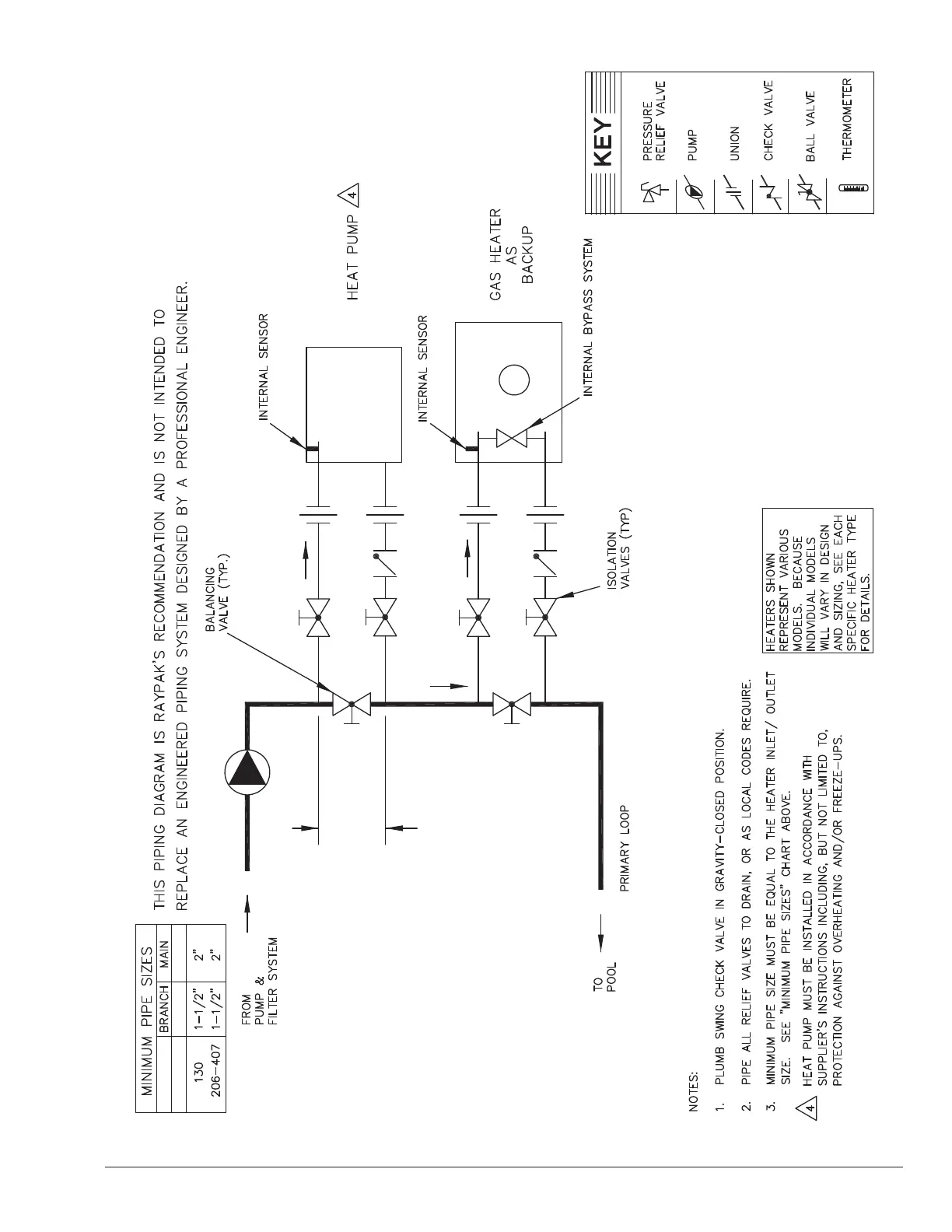

Figure 10. Piping for Heat Pump Pool Heater and Gas Pool Heater
