Chapter 1: DVR Features
DVR Feature
z MPEG-4 compression
z 4-Channel: 4 BNC Camera Inputs - 2 BNC Video Outputs
9-Channel: 9 BNC Camera Inputs - 1 BNC Video Output
4-Channel: 2 Audio Inputs - 2 Audio Outputs
9-Channel: 1 Audio Input -1 Audio Output
z System Format : NTSC /PAL
z Motion Detection with Sensitivity and Area Settings
z Time Schedule, Alarm and Motion Triggered Recording Modes
z Hard Disk Support up to 500GB
z Supports PTZ Control via RS-485 Port
z View and Operate over Network (Broadband Connection Required)
z Built-in USB 2.0 Port for Backup to Computer or USB Memory Stick Backup (Optional)
z VGA Output (Optional)
Chapter 2: Overview
2.1 Front Panel

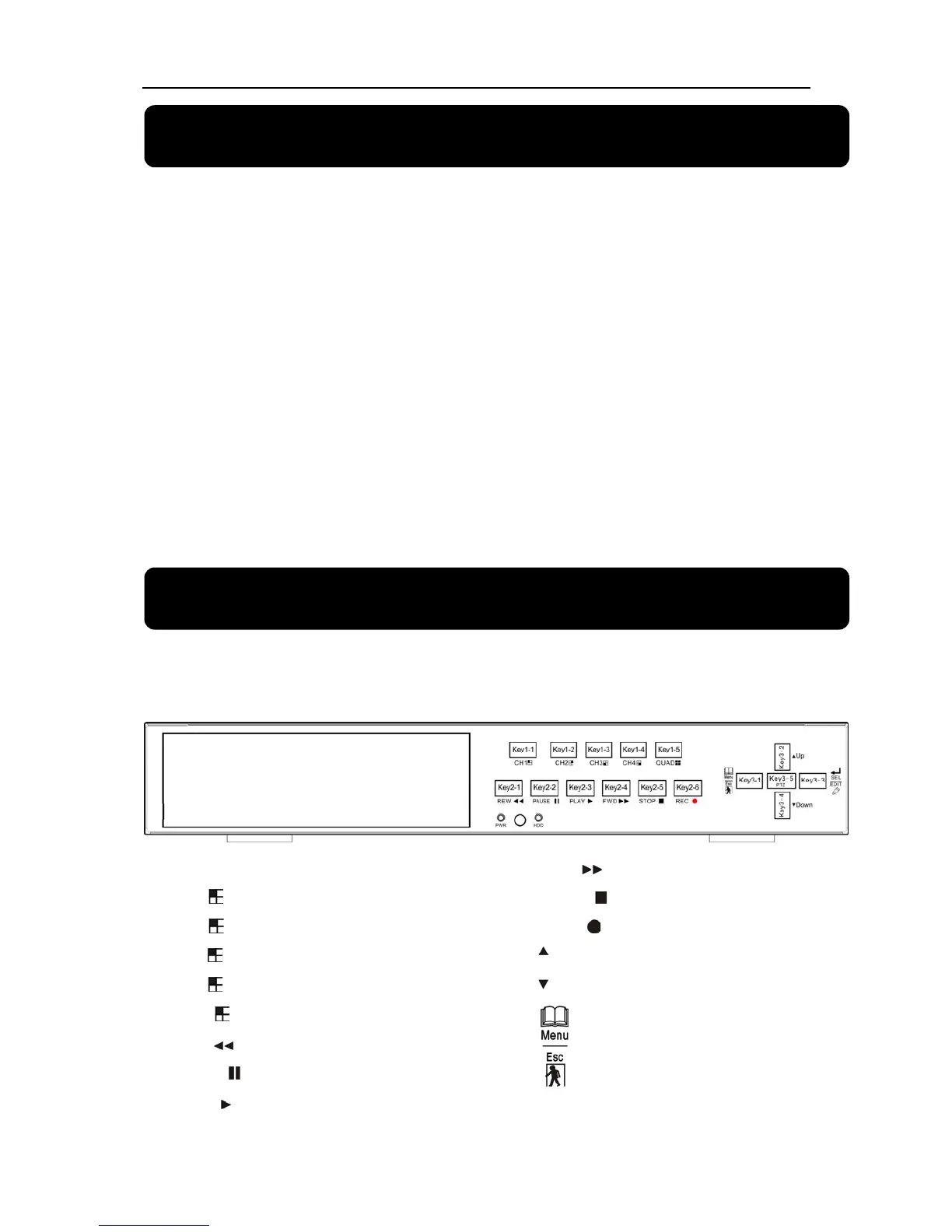

2.1.1 4-CH DVR front panel
1. Circumgyrate Door (optional)
2. CH1 : CH 1
3. CH2 : CH 2
4. CH3 : CH 3
5. CH4 : CH 4
6. Quad : View all channels
7. REW : Rewind play/Focus
8. PAUSE : Pause/Auto sequence display
9. PLAY :Play
10. FWD : Forward Play
11. STOP :Stop record
12. REC : Record
13. :UP
14. :DOWN
15.
:Menu/ESC/Left
