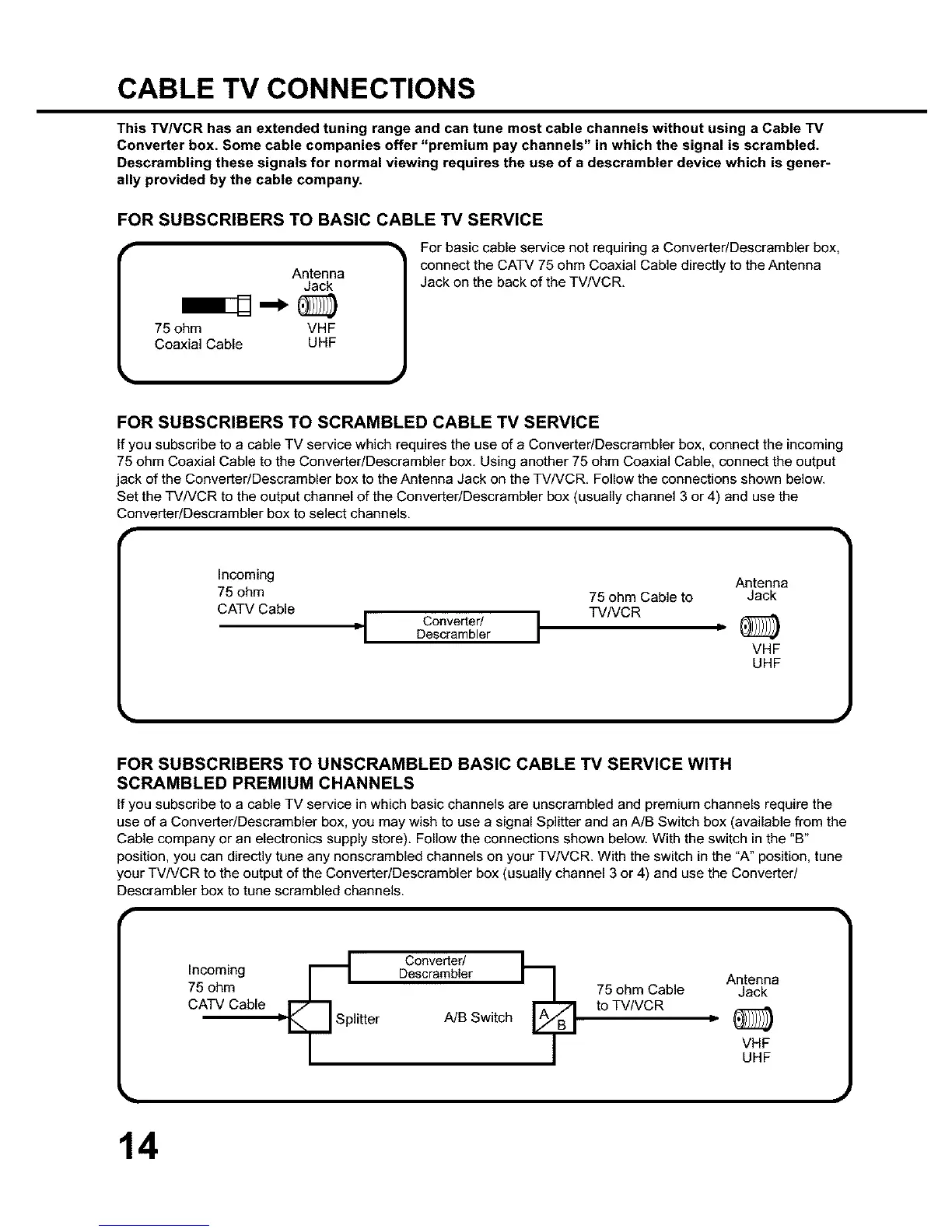

CABLE TV CONNECTIONS

This TVNCR has an extended tuning range and can tune most cable channels without using a Cable TV

Converter box. Some cable companies offer "premium pay channels" in which the signal is scrambled.

Descrambling these signals for normal viewing requires the use of a descrambler device which is gener-

ally provided by the cable company.

FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE

Antenna

Jack

75 ohm VHF

Coaxial Cable UHF

• For basic cable service not requiring a Converter/Descrambler box,

connect the CATV 75 ohm Coaxial Cable directly to the Antenna

Jack on the back of the TVNCR.

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE

If you subscribe to a cable TV service which requires the use of a Converter/Descrambler box, connect the incoming

75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output

jack of the Converter/Descrambler box to the Antenna Jack on the TVNCR. Follow the connections shown below.

Set the TVNCR to the output channel of the Converter/Descrambler box (usually channel 3 or 4) and use the

Converter/Descrambler box to select channels.

Incoming Antenna

75 ohm 75 ohm Cable to Jack

CATV Cable TV/VCR

='I Converter/Descrambler I D

VHF

UHF

FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH

SCRAMBLED PREMIUM CHANNELS

If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require the

use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (availablefrom the

Cable company or an electronics supply store). Follow the connections shown below. With the switch in the "B"

position, you can directly tune any nonscrambled channels on your TV/VCR. With the switch in the "A" position, tune

your TV/VCR to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/

Descrambler boxto tune scrambled channels.

_Sp Converter/

Incoming Descrambler Antenna

75 ohm 75 ohm Cable Jack

CATV Cable to TV/VCR

litter A/B Switch t,

VHF

UHF
