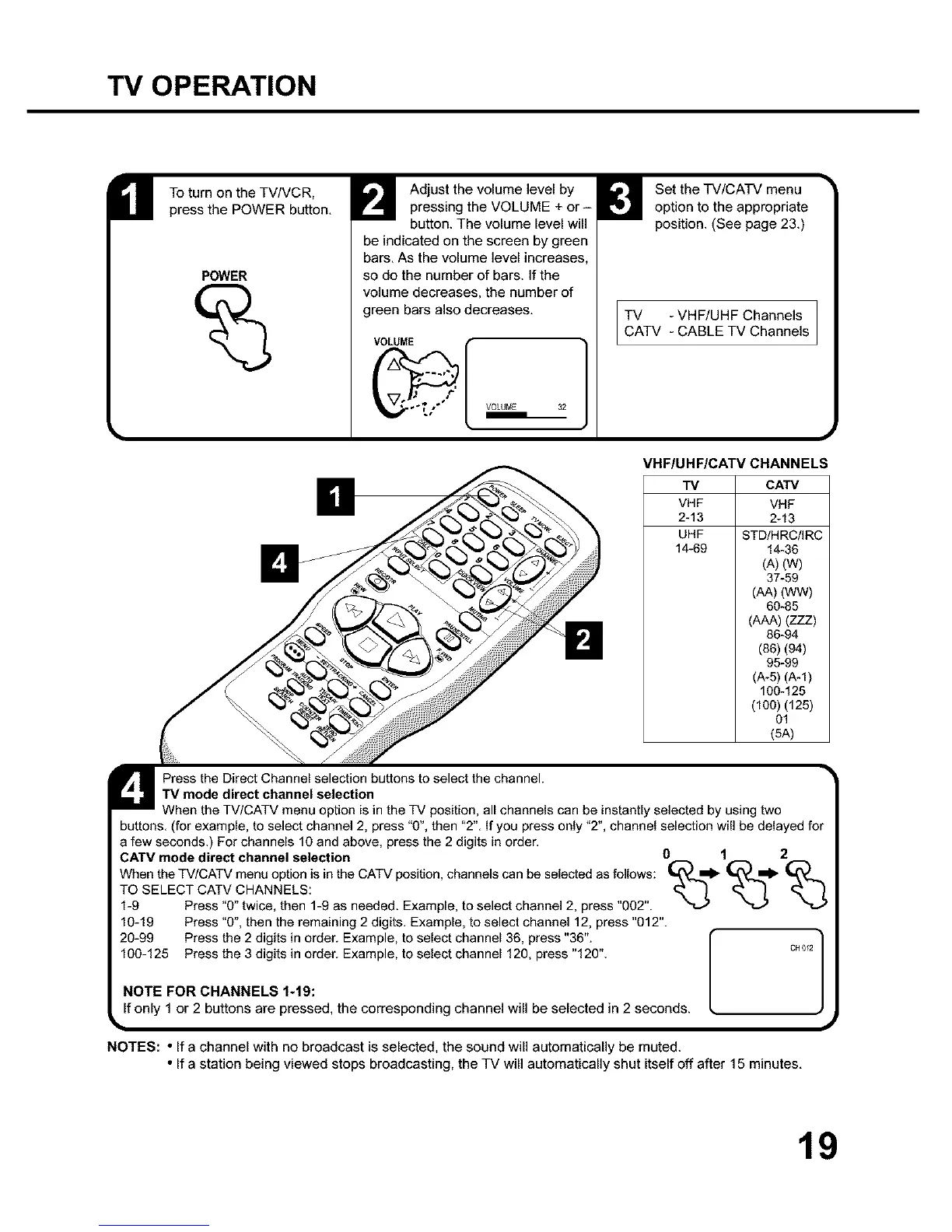

TV OPERATION
To turn on the TV/VCR, Set the TV/CATV menu
press the POWER button, option to the appropriate
position. (See page 23.)
POWER
Adjust the volume level by
pressing the VOLUME + or-
button. The volume level will
be indicated on the screen by green
bars. As the volume level increases,
so do the number of bars. If the
volume decreases, the number of
green bars also decreases.
TV - VHF/UHF Channels
VOLUME 1_[ VOLUME 32
CATV - CABLE TV Channels
I!
VHF/UHF/CATV CHANNELS
TV CATV
VHF VHF
2-13 2-13
UHF STD/HRC/IRC
14-69 14-36
(A)(W)
37-59
(AA)(WW)
60-85
(AAA) (ZZZ)
86-94
(86) (94)
95-99
(A-5) (A-l)
100-125
(100) (125)
01
(5A)
Press the Direct Channel selection buttons to select the channel.
TV mode direct channel selection
When the TV/CATV menu option is in the TV position,all channels can be instantly selected by using two
buttons. (for example, to select channel 2, press "0", then "2". If you press only "2", channel selection will be delayed for
a few seconds.) For channels 10 and above, press the 2 digits in order.
CATV mode direct channel selection 0 1 2
ToWhenthe TV/CATV menu °ption is in the CATV positi°n' channels can be selected as foUows: _1_ _1__SELECTCATV CHANNELS:
1-9 Press "0" twice, then 1-9 as needed. Example, to select channel 2, press "002".
10-19 Press "0", then the remaining 2 digits. Example, to select channel 12, press "012".
20-99 Press the 2 digits in order. Example, to select channel 36, press "36".
100-125 Press the 3 digits in order. Example, to select channel 120, press "120".
NOTE FOR CHANNELS 1-19:
If only 1 or 2 buttons are pressed, the corresponding channel will be selected in 2 seconds.
I CH012 ]
NOTES: • Ifa channel with no broadcast is selected, the sound will automatically be muted.
• If a station being viewed stops broadcasting, the TV will automatically shut itself off after 15 minutes.
19
