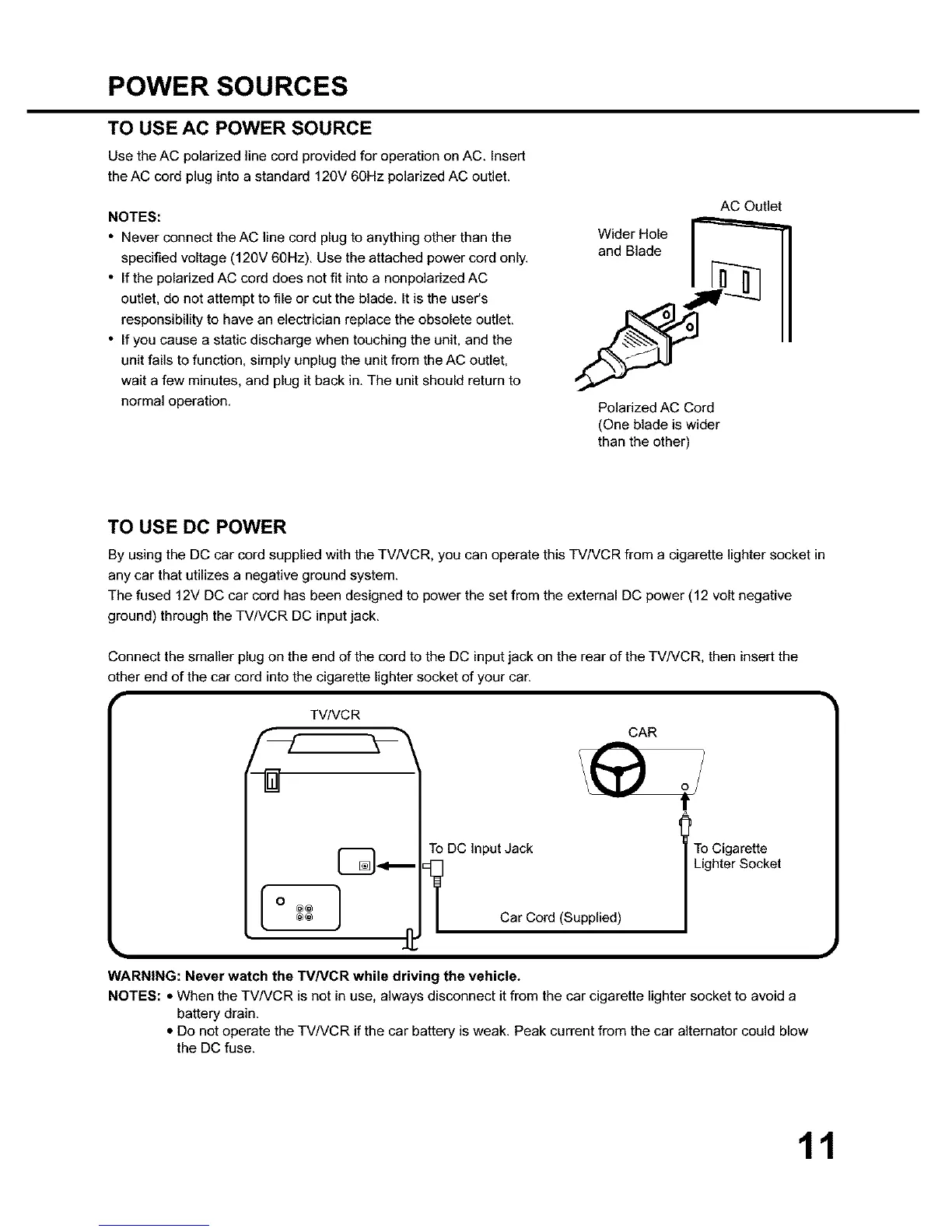

POWER SOURCES
TO USE AC POWER SOURCE
Use the AC polarized line cord provided for operation on AC. Insert
theAC cord plug into a standard 120V 60Hz polarized AC outlet.
NOTES:
• Never connect the AC line cord plug to anything other than the
specified voltage (120V 60Hz). Use the attached power cord only.
• If the polarized AC cord does not fit into a nonpolarized AC
outlet, do not attempt to file or cut the blade. It is the user's
responsibility to have an electrician replace the obsolete outlet.
• If you cause a static discharge when touching the unit. and the
unit fails to function, simply unplug the unit from the AC outlet,
wait a few minutes, and plug it back in. The unit should return to
normal operation.
AC Outlet
Wider Hole
__._and Blade
Polarized AC Cord
(One blade is wider
than the other)
TO USE DC POWER
By using the DC car cord supplied with the TVNCR, you can operate this TV/VCR from a cigarette lighter socket in
any car that utilizes a negative ground system.
The fused 12V DO car cord has been designed to power the set from the external DO power (12 volt negative
ground) through the TV/VCR DC input jack.
Connect the smaller plug on the end of the cord to the DC input jack on the rear of the TVNCR, then insert the
other end of the car cord into the cigarette lighter socket of your car.
TV/VCR
I 0 @@@@
To DO Input Jack arette
Lighter Socket
Car Cord (Supplied)
WARNING: Never watch the TV/VCR while driving the vehicle.
NOTES: • When the TVNCR is not in use, always disconnect it from the car cigarette lighter socket to avoid a
battery drain.
• Do not operate the TVNCR if the car battery is weak. Peak current from the car alternator could blow
the DC fuse.
11
