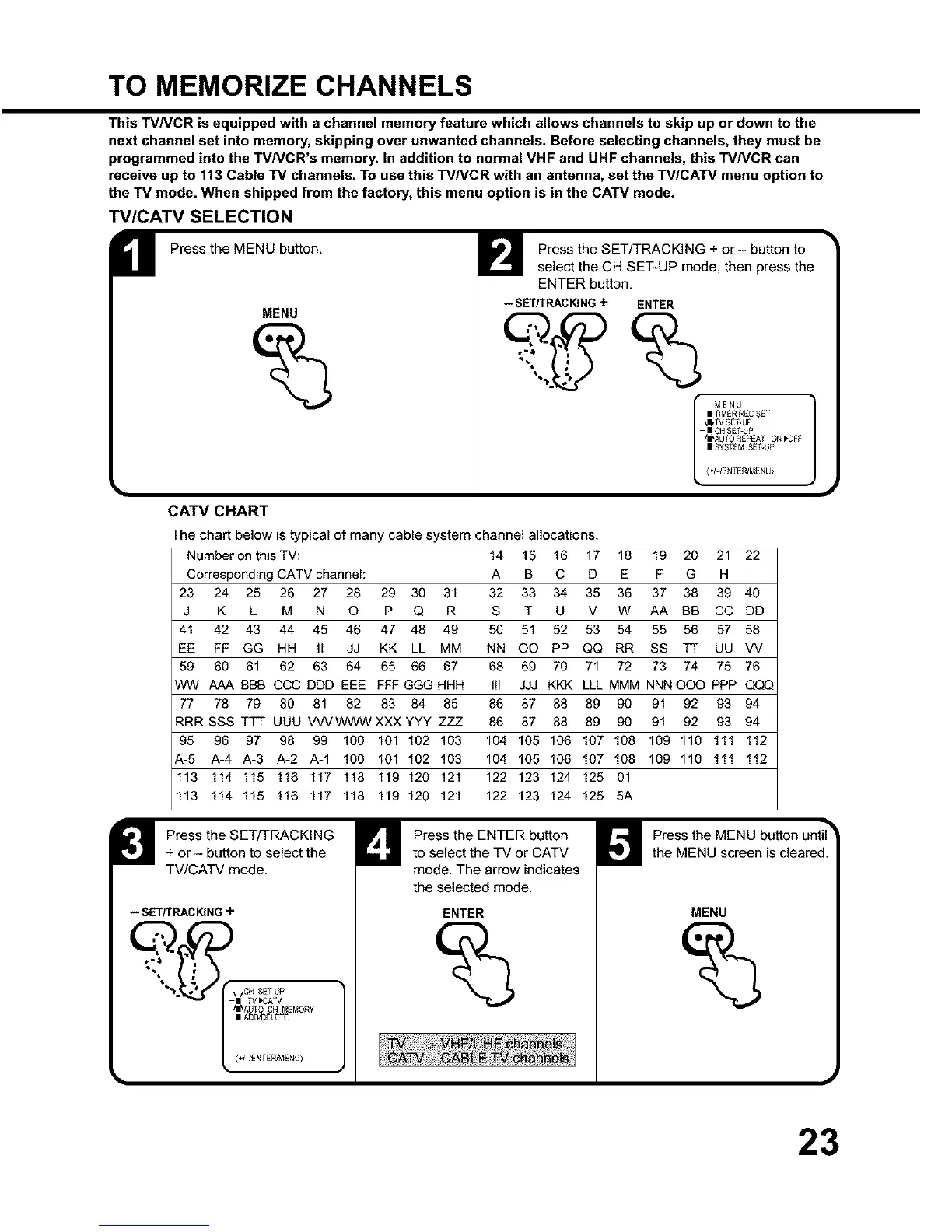

TO MEMORIZE CHANNELS
This TVNCR is equipped with a channel memory feature which allows channels to skip up or down to the
next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be
programmed into the TVNCR's memory. In addition to normal VHF and UHF channels, this TVNCR can
receive up to 113 Cable TV channels. To use this TVNCR with an antenna, set the TV/CATV menu option to
the TV mode. When shipped from the factory, this menu option is in the CATV mode.
TV/CATV SELECTION
Press the MENU button.
MENU
%
Press the SET/TRACKING + or- button to
select the CH SET-UP mode, then press the
ENTER button.
--SET/TRACKING+ ENTER
MENU 1
| TIMERRECSET
_'TV SET-UP
- | CH SET-UP
*_'AUT0 REPEAT ON_FF
| SYSTEMSET-UP
_+/=/ENTE_MENU/
CATV CHART
The chart below is typical of many cable system channel allocations.
Number on this TV: 14 15 16 17 18 19 20 21 22
Corresponding CATV channel: A B C D E F G H I
23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
J K L M N O P Q R S T U V W AA BB CC DD
41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58
EE FF GG HH II JJ KK LL MM NN OO PP QQ RR SS TT UU VV
59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76
WW AAA BBB CCC DDD EEE FFFGGG HHH Ill JJJ KKK LLL MMM NNN OOO PPP
77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94
RRR SSS TTT UUU VVVVWVWXXX YYY ZZZ 86 87 88 89 90 91 92 93 94
95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112
A-5 A-4 A-3 A-2 A-1 100 101 102 103 104 105 106 107 108 109 110 111 112
113 114 115 116 117 118 119 120 121 122 123 124 125 01
113 114 115 116 117 118 119 120 121 122 123 124 125 5A
Press the SET/TRACKING
+ or - button to select the
TV/CATV mode.
--SET/TRACKING +
| ADD/DELETE
<÷J-/ENTER]MENU>
Press the ENTER button
to select the TV or CATV
mode. The arrow indicates
the selected mode.
ENTER
%
the MENU screen is cleared.
MENU
%
23
