SAM 400 SPEED-AREA-DISTANCE METER
16

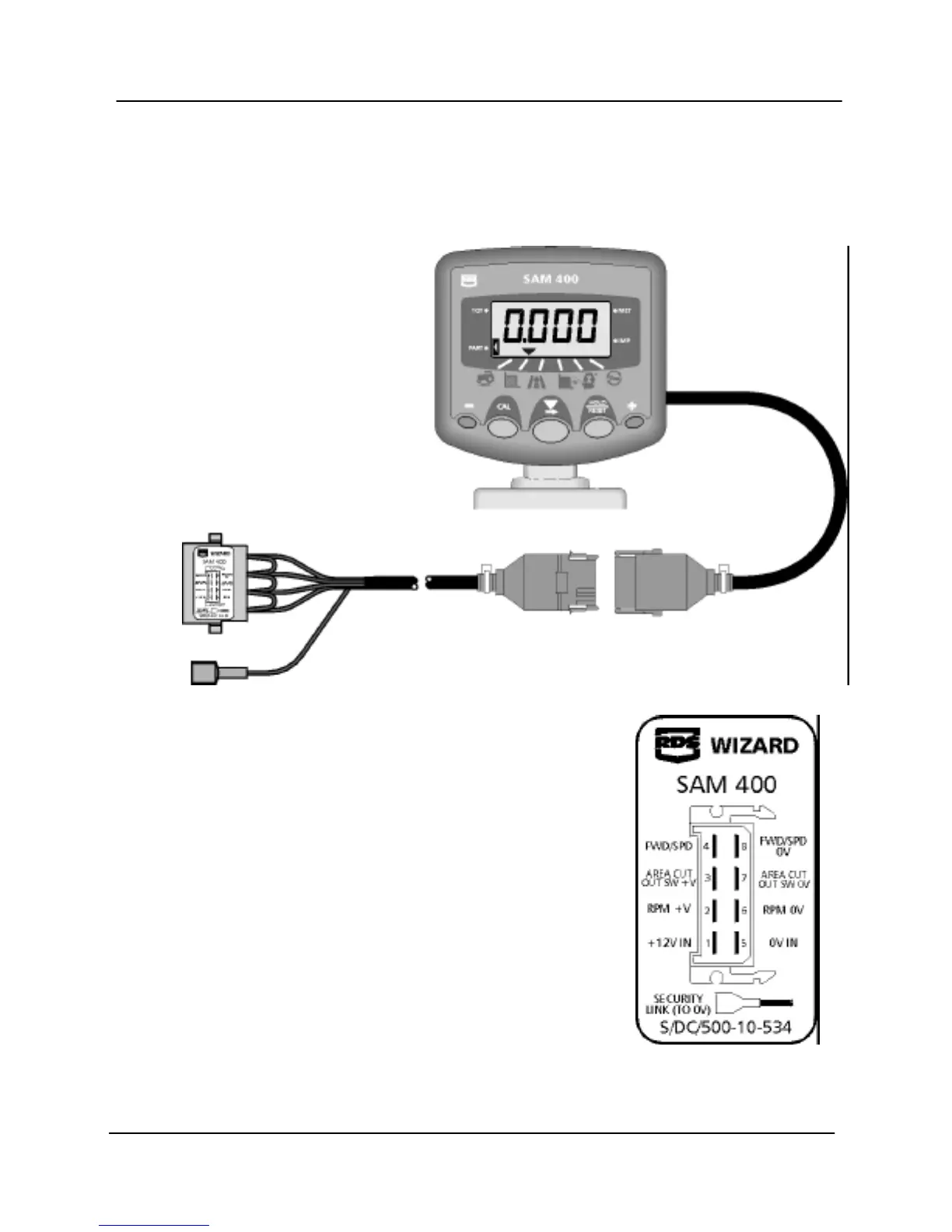

Wiring Connections – SAM 400 (without WCI/ACI)
A 12-way Qikmate to 8-way AMP interconnection cable Pt No. S/CB/327-1-
053 is supplied to connect to the sensors, power supply etc.
Please refer to the “Work measurement
Installation” manual S/DC/500-10-261 for
details on power supply, fitting sensors /
cutout switches etc.
The AMP connector accepts the standard
¼” female crimp terminals. The wiring
label (S/DC/500-10-534) identifies the
wiring connections as shown.
NOTE: Connecting the security link wire to 0V to
allows the area total 2 , distance total 2 and
engine hours total to be reset in the normal
operating mode.
