SAM 400 SPEED-AREA-DISTANCE METER
7
(ii) Optional Width Correction Interface
A Width Correction Interface (WCI)
enables the operator to select a part width
- 1/4, 1/2, 3/4, or full width as required.
When the WCI is switched to a part width,
the display will alternate between the
currently selected channel and '1/4', '1/2',
'3/4' or 'FULL' corresponding to the switch
position, and area accumulation is
reduced accordingly.
The WCI works in addition to the standard area override switch.
(iii) Area Compensation Interface
An Area Compensation Interface (ACI) connects between the SAM 400 and
the sprayer switchbox. It detects which boom sections are on/off in order for
the instrument to calculate the actual working width and apply the correct
rate.
NOTE: The Nozzle spacing and No of nozzles per section are programmed for each
section in turn, in the CAL mode.

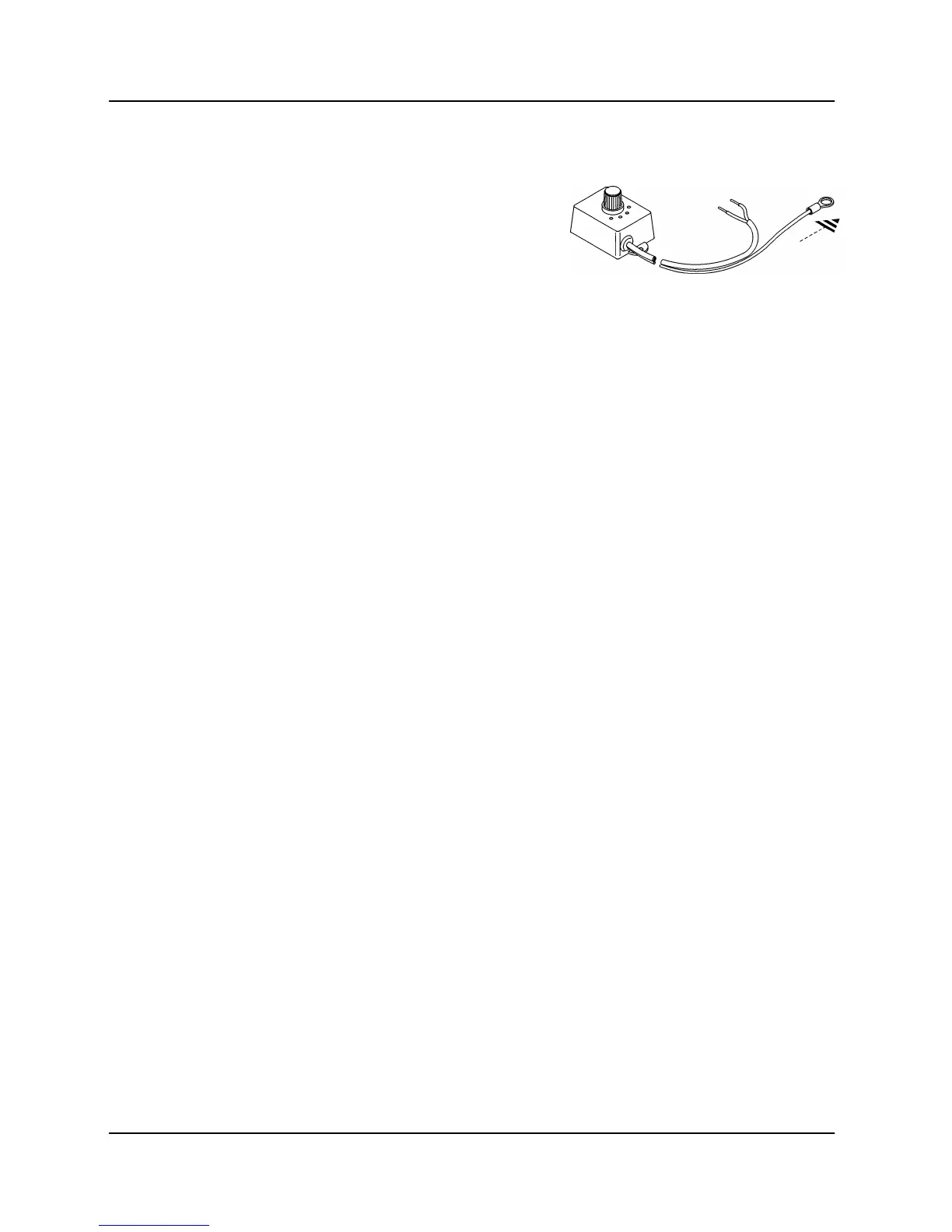

Width Correction Interface
