SAM 400 SPEED-AREA-DISTANCE METER
17

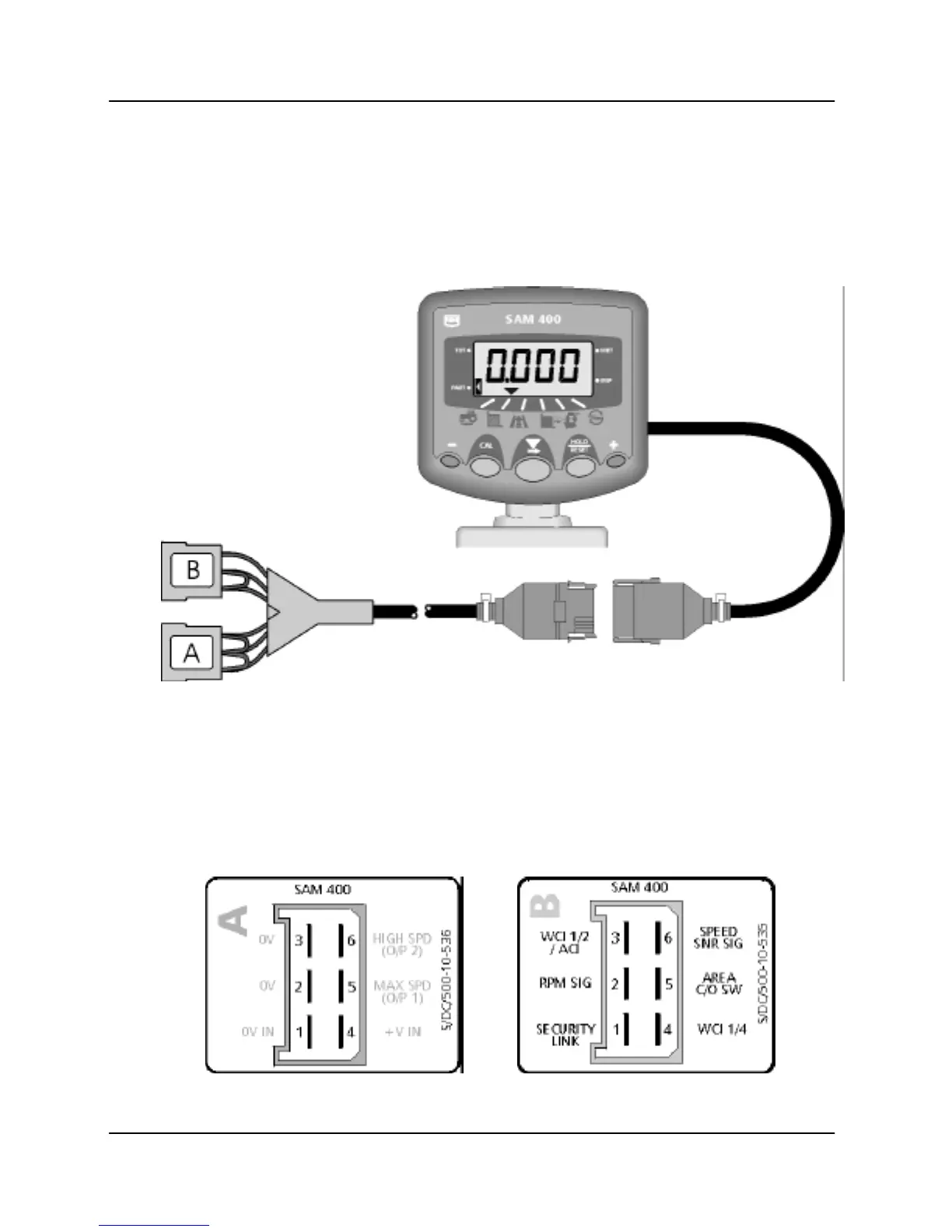

Wiring Connections – SAM 400 (With WCI / ACI)
You will require the following cable in order to connect a WCI switch, ACI
switch, or to utilise Outputs 1 and 2.
Pt No. S/CB/327-1-063 (2 x 6-way AMP)
Please refer to the “Work measurement Installation” manual S/DC/500-10-
261 for details on power supply, fitting sensors / cutout switches etc. The ACI
has it's own installation and wiring instructions.
The AMP connector accepts the standard ¼” female crimp terminals. The
wiring labels (S/DC/500-10-535 and S/DC500-10-536) identify the wiring
connections as shown.
2 x 6-way AMP
connectors
