Manual opening and closing in case of failure (RED)
Manual opening (without manual unlocking device)

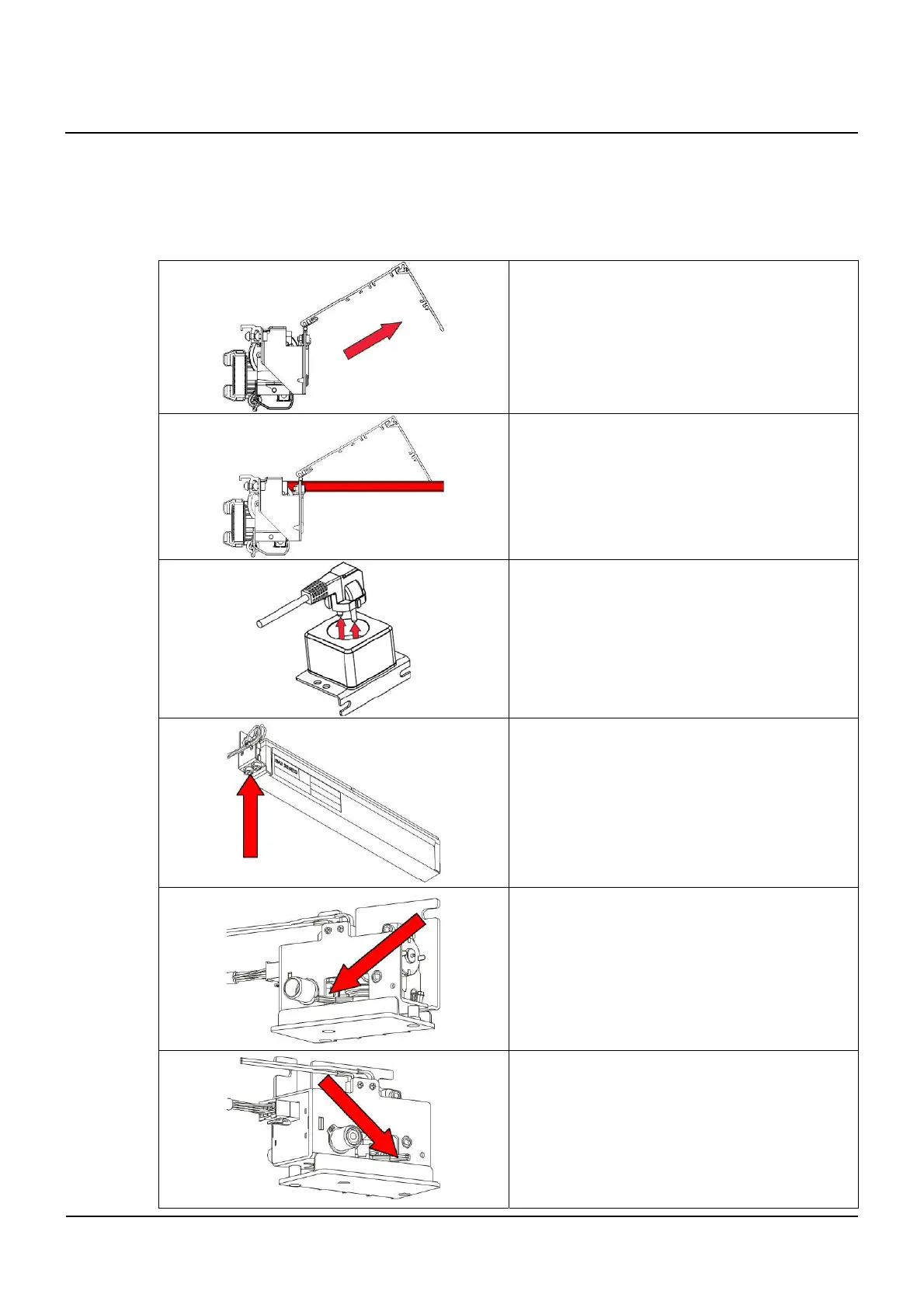

Initial situation:
The door is disconnected from the mains and is blocked in the closed and locked position.
▪ Open the operator casing (swing out).
Note:
If you pull near the hinges, it will assist the
opening of the casing.
▪ Swivel out the red holding bar in order to keep
the casing in open position.
▪
A
s a precaution remove the plug from the
socket.
▪ The socket is located under the casing.
▪ Besides, unscrew both accumulator (storage
battery) fuses.
▪ The accumulator is located under the casing.
▪ The locking system is provided with an un-
locking lever.
▪ Turn the lever clockwise and hold this one in
place.
▪ The door unlocks and can be slid open by
hand.
▪ Close the casing with a strong pressure on
the area of the hinges.
