Installation — Wiring | 23
SENSOR INPUT WIRING (E A1–A2)
Connecting the TVMSRogue to analogue sensors�
TANK LEVEL SENSORS
Tank level sensors can be connected to the TVMSRogue for measuring tank levels including grey
water or clean water tanks. Not all tank level sensors are compatible with TVMS Rogue, so check
compatibility before purchasing. Float sensors are recommended because they are readily available
and have simple two-wire installation.
TANK LEVEL SENSOR WIRING
For connector pinout information, see 'Input Cable Connector (E) Pinouts', 'Sensors'(page49).
1. Connect the wires from the tank-level sensor to a numbered pair of Yellow and Green wires on
the Input Wiring Loom (at E A1 or A2).
2. Insulate the ends of individual unused wires (like-numbered Red and Black wires) to prevent
them from shorting. DO NOT heatshrink/tape multiple unused wires together as a single bundle.
3. Configure via the REDARC Configurator App.

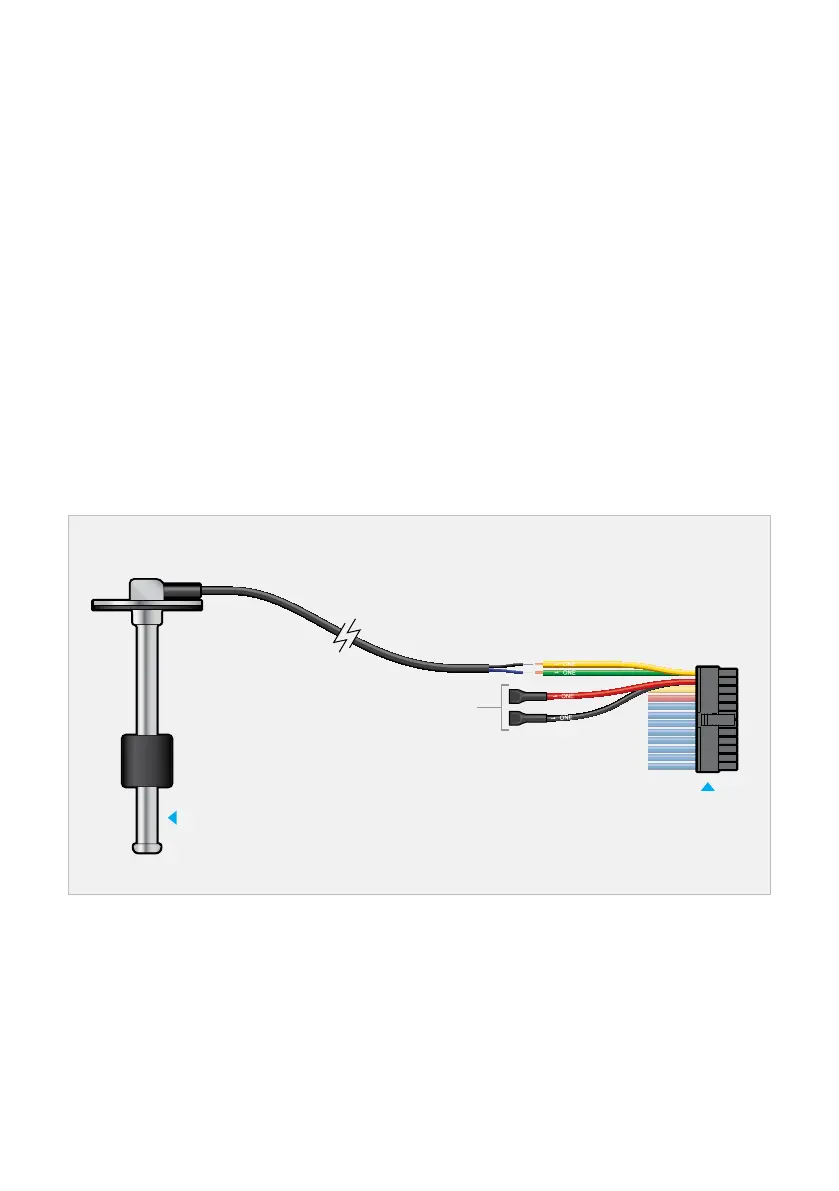

Tank Level Sensor Wiring (typical two-wire float sensor)
Tank Level Sensor
Input Loom
Insulate ends of individual
unused wires
To Next Page
