Installation — Wiring | 27
POWER INPUT WIRING (A)
Connecting the TVMSRogue to the auxiliary battery�
Note: Wiring components including fuses, lugs, extension cables and consumables are not supplied.
CAUTION
Do NOT modify the Power Wiring Loom cable while it is plugged into the Main Unit.
The chassis/ground connection should be made away from batteries and fuel lines.
Ensure all connection surfaces are clean, paint-free, and protected against corrosion.
POWER INPUT CABLE SIZING
CAUTION: Selecting the wrong cable size could result in harm to the installer or user and/or
damage to the battery or other equipment installed in the system.
The installer is responsible for ensuring that all installer-supplied cables are the correct size and
type (i.e. has physical performance properties and ratings suitable for the install conditions).
The cable between the TVMSRogue and auxiliary battery must a large enough gauge to prevent
excessive voltage drop over its length. As voltage drop occurs between battery positive and ground,
the total Cable Install Length of Positive and Negative cable combined must be considered. Refer to
the Cable Size Selection Table for the correct cable size for your cable length.

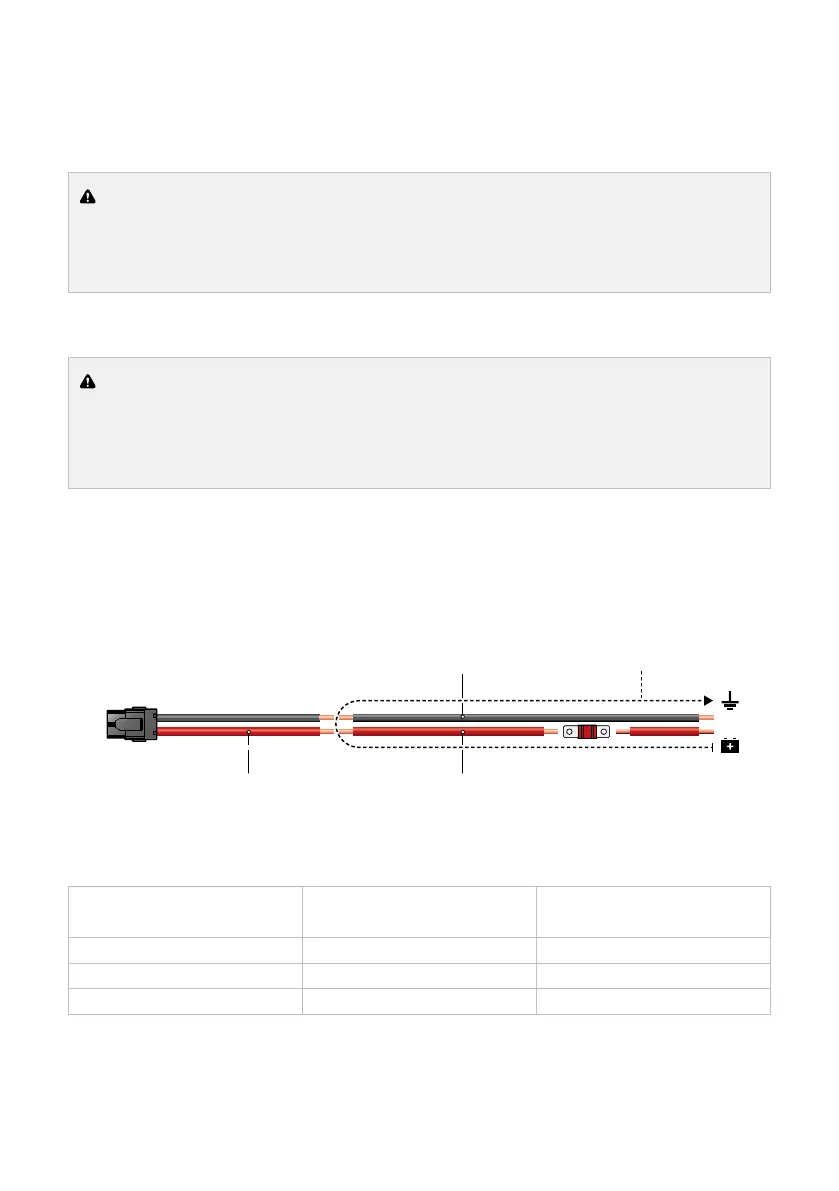

Power Wiring Loom
(supplied)
Positive Cable
(not supplied)
Negative Cable
(not supplied)
Total Cable Length
CABLE SIZE SELECTION TABLE
Cable Install Length*
(Positive + Negative Combined)
Recommended Cable
Cross Section
Closest Equivalent
(AWG/BAE/B&S)
< 2 m (< 6'8") ≥ 7.7 mm² 8
2 – 5 m (6'8" – 16') ≥ 13.5 mm² 6
5 – 12 m (16' – 40') ≥ 20.2 mm² 4
* Cable Install Length refers to the total length of the cables (positive and negative combined) from the auxiliary battery positive
terminal to the grounding point.
