BlackMax – Installation and Operation Manual
Page 17 of 36
Issue date: 24/11/2023. Version 13.0

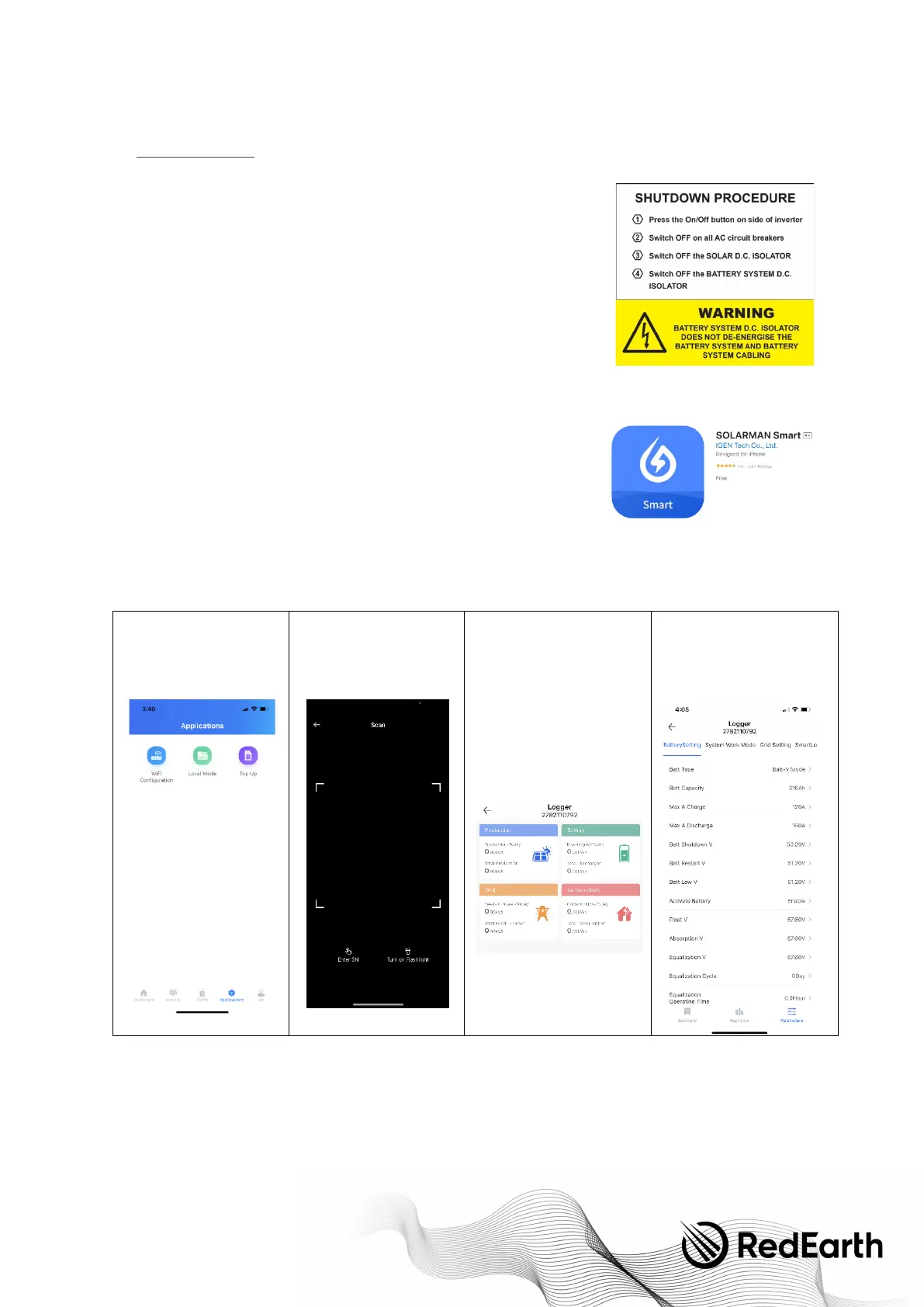

Shutdown procedure
The
shutdown procedure
is the reverse of the “turn on” procedure and is shown below. This procedure label can be found
attached to the lid of the BlackMax.
1. Press the “On/Off” button (#1) on the left-hand side of the inverter. Button is OUT
when system is OFF.
2. Tu r n O F F a l l A C c i r c u i t b r e a ke r s ( # 2 ) , f o u n d o n t h e l e f t s i d e o f t h e u n i t .
3. Switch OFF the SOLAR D.C. ISOLATORS (#3), found on the right side of the unit.
4. Switch OFF the BATTERY SYSTEM D.C. ISOLATOR (#4), found on the right side of the
unit.
The battery breaker on top of each battery does not have to be turned off if the BATTERY
SYSTEM D.C. breaker is already off. However, it is recommended to turn them off for long
term storage (up to 6 months).
Tip: If the BlackMax is put into storage, after 6 months the system should be restarted to
recharge the batteries (e.g., via a generator).
Adjusting the inverter parameters
The BlackMax has been commissioned and tested in RedEarth’s factory.
Only minor parameter adjustments may be required:
The most feature rich method of updating any settings on the BlackMax is through the
SolarMan smart application. Similar results can be achieved via the screen directly on
the BlackMax however the most efficient method is to use this application in Local
Mode
How to Access Local Mode
To a c c e s s L o c a l M o d e f o l l o w t h e s t e p s b e l o w :
1. Once logged in,
navigate to the
"Applications Tab and
select "Local Mode"
(Green Button).
2. Once logged in,
navigate to the
"Applications Tab and
select "Local Mode"
(Green Button).
3. Yo u wi l l t h en b e
prompted to scan the
small QR code located
on the wifi dongle at the
bottom of the inverter, or
enter the logger serial
number located on the
BlackMax install card.
4. After connecting you will
see some summary data
5. To v i e w r e a l -time data
select "Real time".
6. To a d j u s t p a r a m e t e r s
locally, select
"Parameters"
