Parts kit

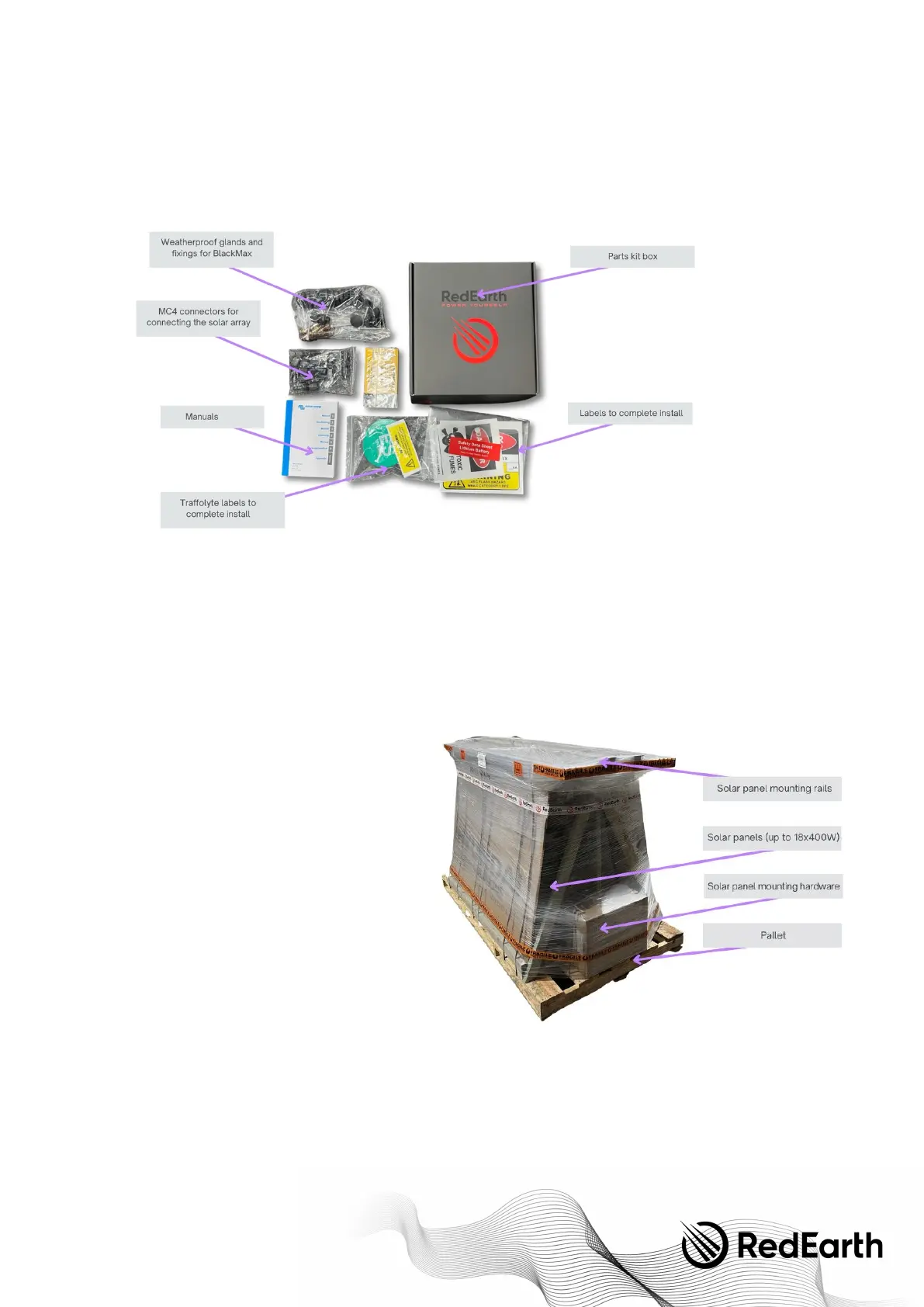

The BlackMax system is supplied with a parts kit containing all the addition items needed to complete the installation.
Complete BlackMax PowerStation kit (option)
RedEarth also provides a convenient BlackMax PowerStation kit. This includes the BlackMax on a small pallet and the solar
panels as well as all mounting equipment for a typical tin roof on a second pallet as shown.
The PowerStation kit includes the following items,
• BlackMax (with 1, 2 or 3 Troppo lithium batteries)
• 15A lead for connecting a typical
small generator.
• Note that no generator is provided
however RedEarth can recommend
some models that work with the
BlackMax.
• Solar Panels (up to 18 x 400W panels
= 7.2kW) subject to change as panel
sizes continue to increase
• Clenergy solar panel mounting
hardware and rails for tin roof along
with required PV cables.
o The list below shows the
parts included for an order
with 16 solar panels.
o The PV rails are cut in half
to be 2.1m long (additional
PV rail splices are included)
• Dimensions for the solar panel kit
pallet (1.2m wide x 2.1m long x 1.4m
high)
• Weight of solar panel kit pallet weight
= 450kg (16 panels)
