BlackMax – Installation and Operation Manual
Page 5 of 36
Issue date: 24/11/2023. Version 13.0

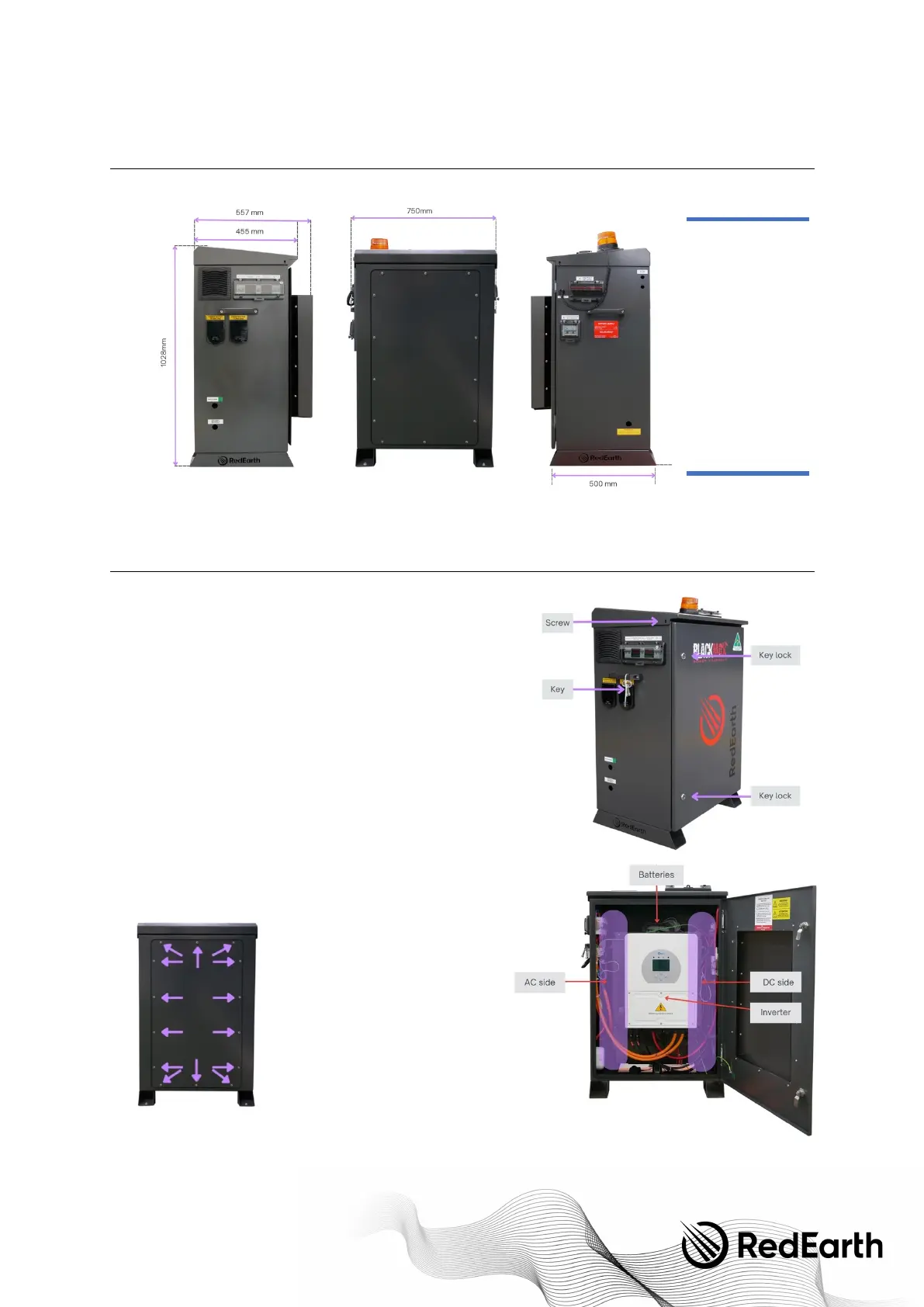

Dimensions
Description of the BlackMax
Opening the BlackMax
RedEarth’s BlackMax energy storage system can be accessed via the
top (lid) or the front door.
To o p e n t h e l i d , 2 s c r e w s ( o n e f r o m e a c h s i d e ) m u s t b e r e m o v e d a n d
then the lid can be lifted and pivoted on the rear hinge.
To a c c e s s f r o m t h e f r o n t , t h e r e a r e 2 l o c k s o n t h e f r o n t d o o r . T h e k e y
to open these locks comes tied to the left handle and must be kept
out of the reach of children.
Inside layout
The BlackMax is divided internally into four main areas, The AC
electrical switchgear, the DC electrical switchgear, the inverter, and
the battery area.
Opening the front door provides
access to the AC side, inverter area,
and DC side. To access the AC or DC
side, you will have to remove the
clear plastic safety covers that are
held in place by 3 nuts.
Note:
Do not over tighten the nuts
holding the clear plastic cover in
place as they will crack under
pressure .
To access the battery area, either
open the top lid or remove the
screws holding the rear panel in
place. Removing and replacing
batteries is easiest via this rear panel.
The BlackMax
weighs 176kg
when fully loaded
with three (3)
Troppo batteries.
Each battery
weighs 43kg and
can be removed
for ease of
handling.
The empty
BlackMax weighs
74kg.
