7 Repair instructions

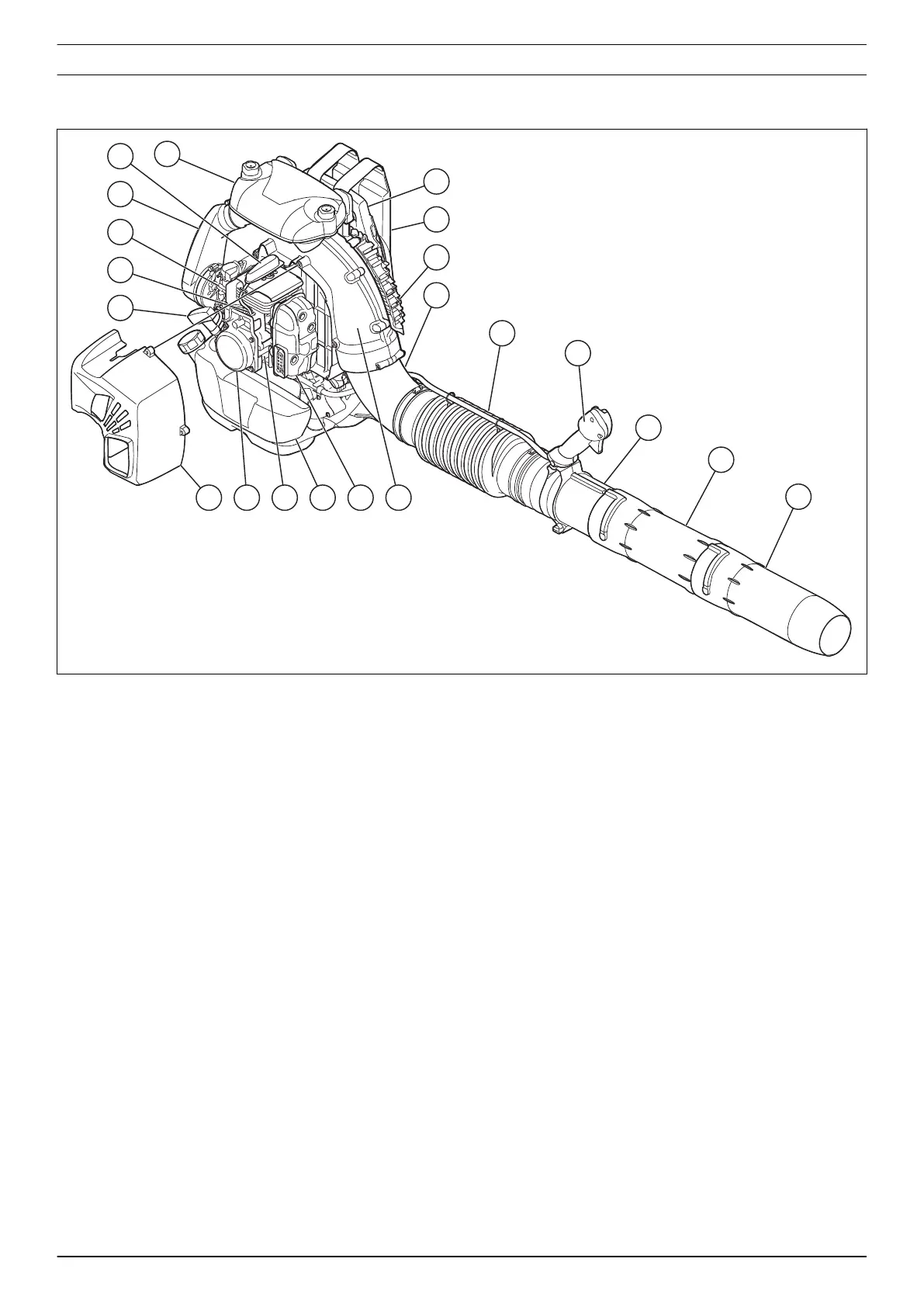

7.1 Product overview for repair instructions
1
2
3
4
5
6
8
20
19
17
14 12 11
18
16
15 1013
9
7
21
1. Frame
2. Harness
3. Fan guard
4. Air outlet
5. Flexible hose
6. Handle
7. Control pipe
8. Intermediate pipe
9. Nozzle
10. Fan cover
11. Muffler
12. Fuel tank
13. Crankcase
14. Starter unit
15. Cylinder cover
16. Starter handle
17. Ignition module
18. Carburetor
19. Inlet tube
20. Spark plug
21. Air filter and air filter holder
7.2 To clean and examine the product parts
• Clean and examine all parts fully. You find more
instructions in the chapter for each part if special
tools or procedures are necessary.
• Replace damaged or defective parts.
• Always use original spare parts.
12 - Repair instructions 1662 - 003 - 04.11.2021
