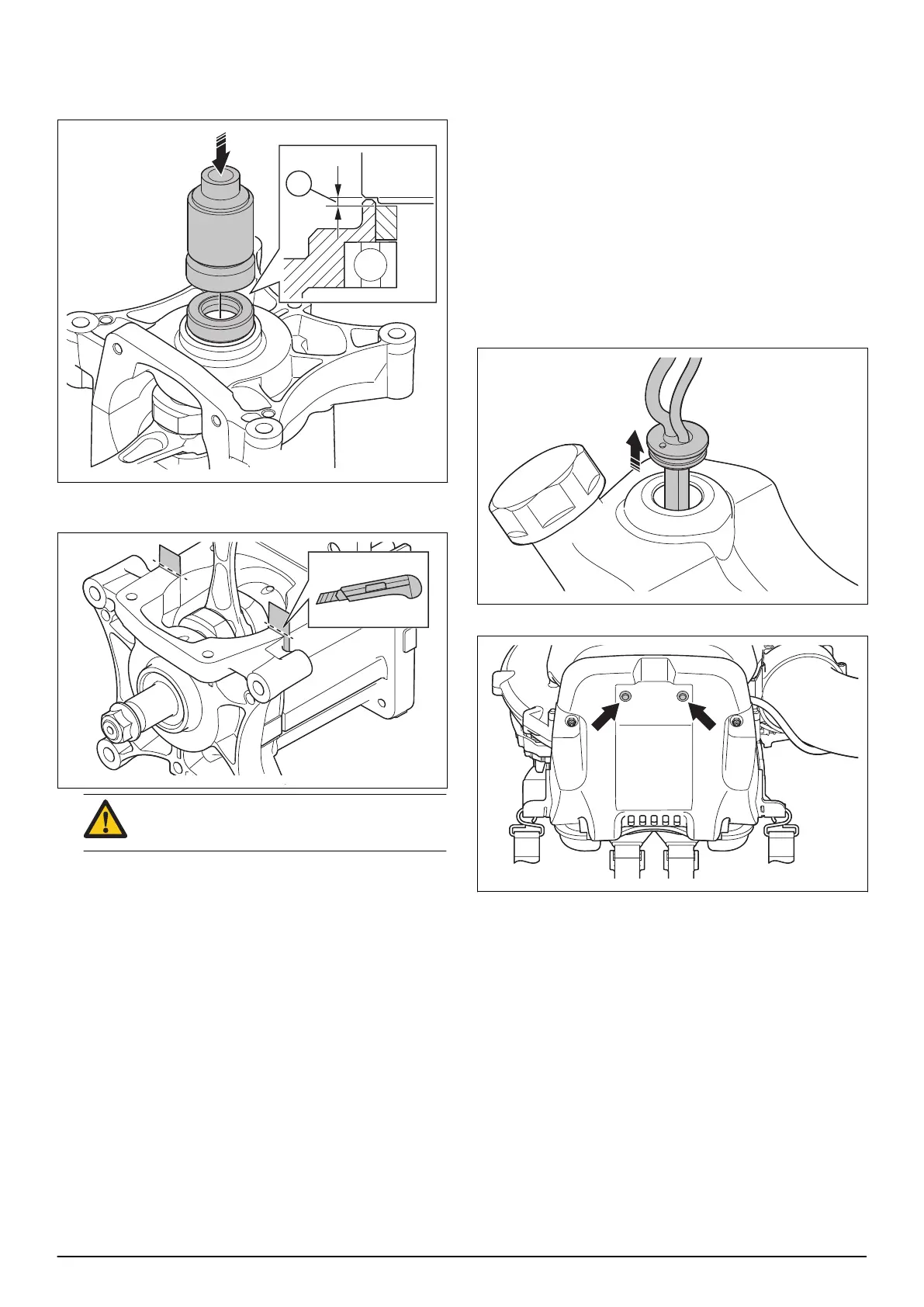

14. Push the oil seals into the crankcase on the fan side
and the starter side. Make sure that the
measurement (X) is 1.5±0.2 mm. Refer to
Servicing
tools on page 9
.
15. Cut off the crankcase gasket ends in level with the
crankcase.
CAUTION: Make sure that the top surface of
the crankcase is not damaged.
16. Install the cylinder and piston. Refer to
To remove
and install the cylinder and piston on page 25
.
17. Install the engine. Refer to
To remove and install the
engine on page 29
.
18. Install the muffler. Refer to
To remove and install the
muffler on page 15
.
19. Install the carburetor. Refer to
To remove and install
the carburetor on page 19
.
20. Install the frame. Refer to
To remove and install the
frame on page 34
.
21. Install the fan. Refer to
To remove and install the fan
on page 37
.
22. Install the flywheel. Refer to
To remove and install
the flywheel on page 24
.
23. Install the starter unit. Refer to
To remove and install
the starter unit on page 13
.
24. Remove the piston stop.
25. Do a pressure test of the engine. Refer to
To do a
leak test of the engine on page 28
.
26. Install the spark plug.
7.12 Fuel tank
7.12.1 To remove and install the fuel tank
1. Make sure that the fuel tank is empty.
2. Remove the grommet and pull the fuel hoses from
the fuel tank.
3. Remove the 2 screws and the the fuel tank.
4. Examine the fuel filter for damages. Refer to
To
clean and examine the fuel filter on page 34
.
5. Install in the opposite sequence.
1662 - 003 - 04.11.2021 Repair instructions - 33
