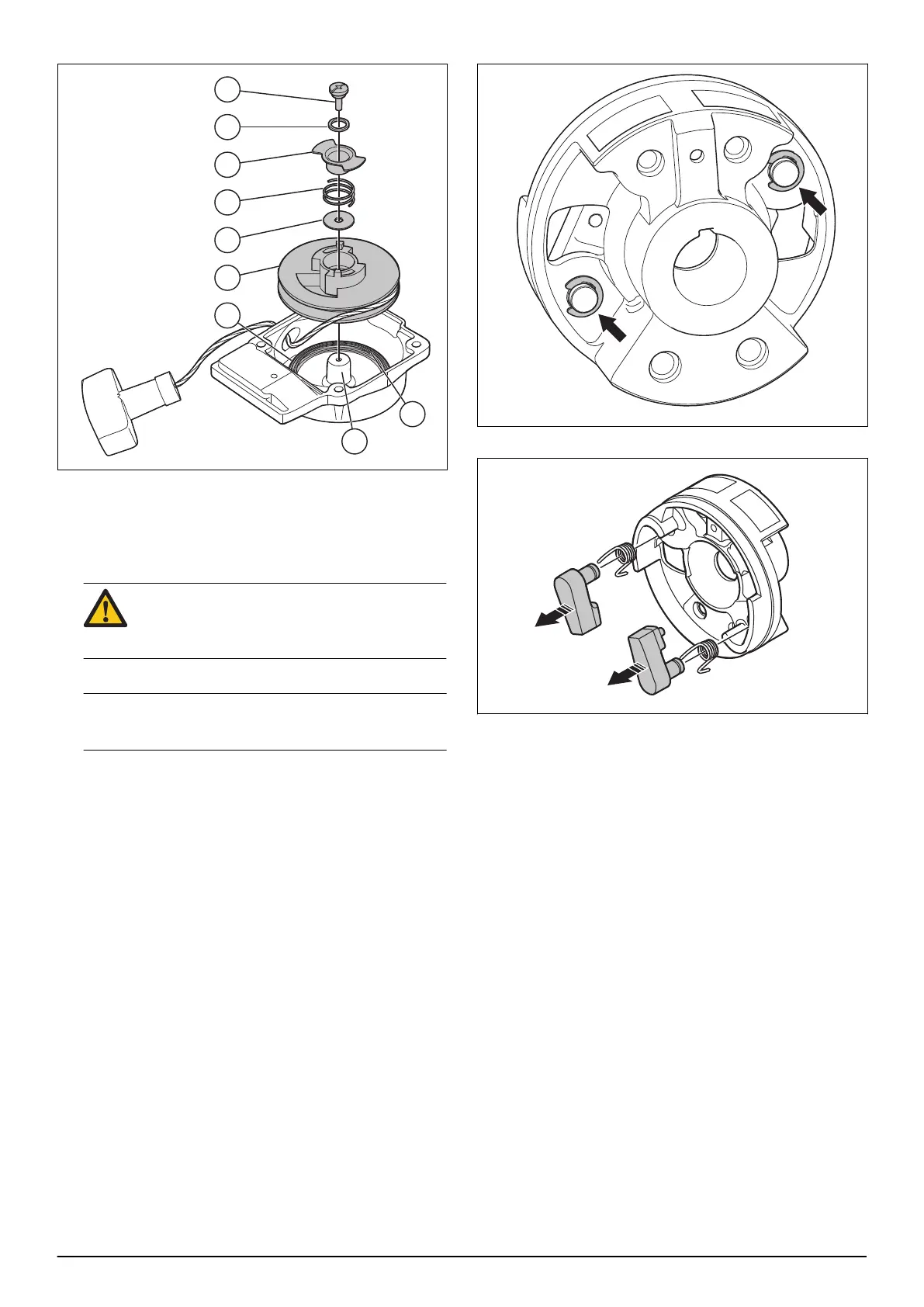

6. Remove the screw (A) and the washer (B).
7. Remove the puller (C) and the spring (D).
8. Remove the washer (E) and the pulley (F).
9. Carefully remove the recoil spring (G) from the
starter housing.
WARNING: Be very careful when you
remove the starter pulley. The recoil spring
can eject and cause injury.
10. Assemble in the opposite sequence.
Note: Apply grease to washer (B), spring (H) and
axle (I).
7.4.3 To replace the starter pawls
1. Remove the cylinder cover. Refer to
To remove and
install the cylinder cover on page 13
.
2. Remove the starter unit. Refer to
To disassemble
the starter on page 13
.
3. Remove the flywheel. Refer to
To remove and install
the flywheel on page 24
.
4. Remove the 2 snap rings.
5. Remove the 2 starter pawls.
6. Install in the opposite sequence.
14 - Repair instructions 1662 - 003 - 04.11.2021
