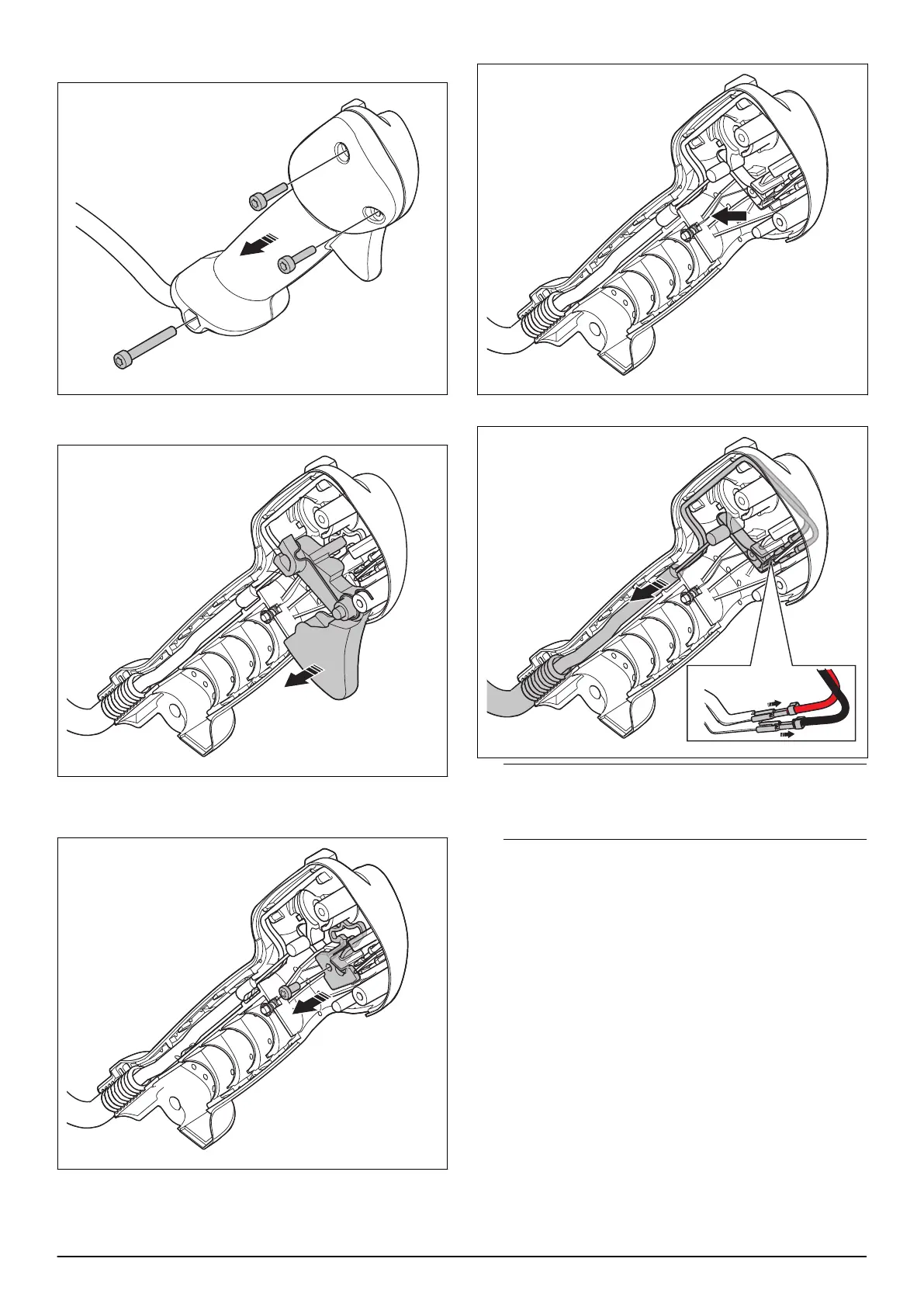

3. Remove the 3 screws, the handle bracket and the
right handle half.
4. Remove the trottle trigger and the throttle trigger
spring.
5. Disconnect the throttle cable from the throttle trigger.
6. Remove the screw and the retainer.
7. Remove the spring.
8. Remove the throttle cable and the stop switch wires.
Note: Make a note of the positions of the black and
red cable. If the positions are set incorrectly, the
static electricity suppressor function will not operate.
9. Examine the stop switch plates for damages.
Replace the stop switch plates if it is necessary.
40 - Repair instructions 1662 - 003 - 04.11.2021
