Reflex Servitec 30 User Manual

Maintenance
Vacuum spray degassing — 06.07.2016 - Rev. B English —
49
10.2
Cleaning
10.2.1
Cleaning the dirt trap
The "ST" dirt trap in the "DC" degassing line must be cleaned after the expiry of the continuous degassing time at the latest. Check the
dirt traps after every filling action or extended operation.
1
. Press "Stop" on the controller's operator panel.
– The device is non-functioning and the "PU" vacuum
pump is shut down.
2

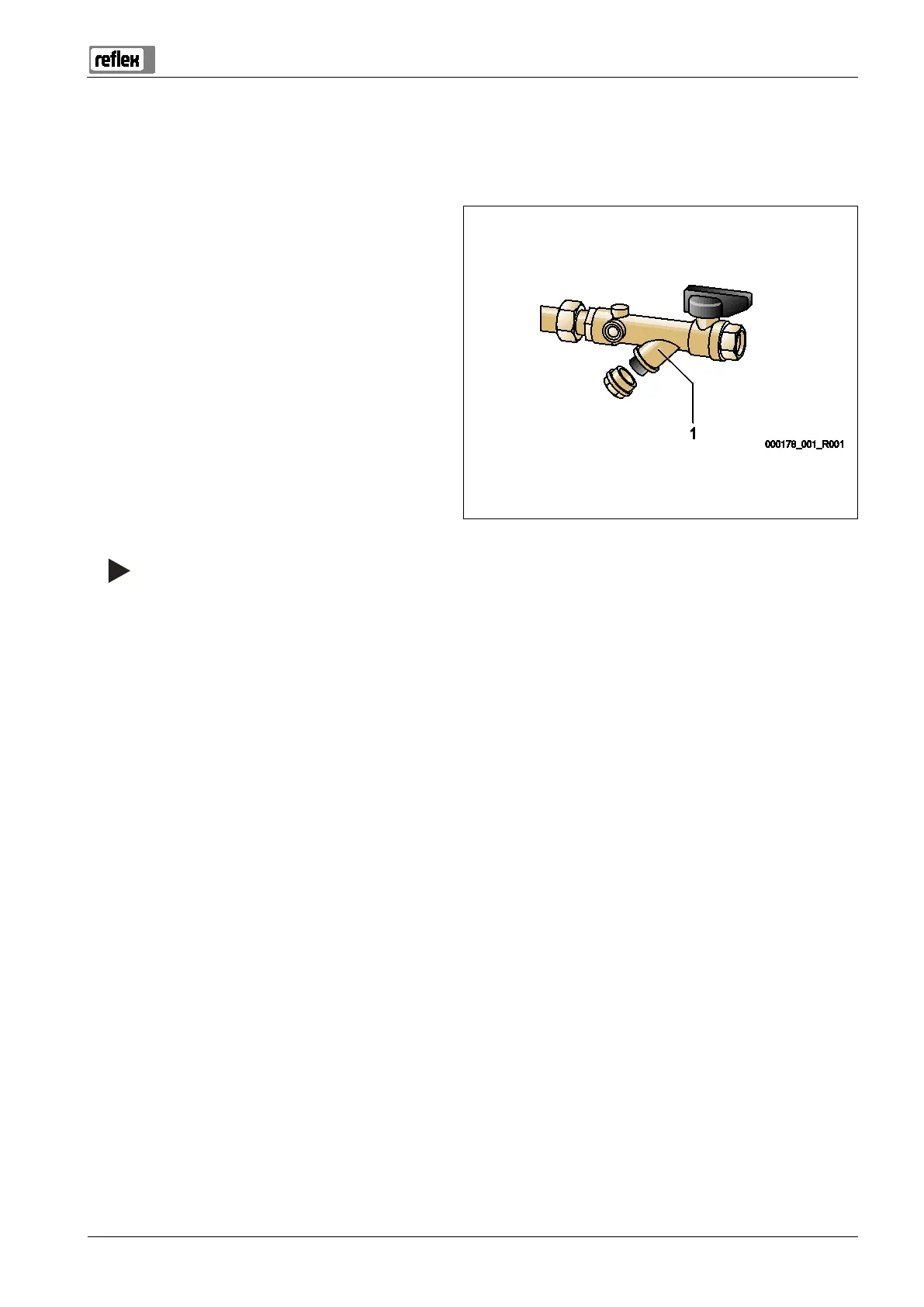

. Close the ball valve upstream of the "ST" (1) dirt trap.
3
. Slowly unscrew the cap with the dirt trap insert at the dirt
trap to release any residual pressure in the pipeline section.
4
. Pull the mesh from the cap and rinse it with clear water.
Use a soft brush for cleaning.
5
. Re-insert the mesh into the cap, check the gasket for
damage, and screw the cap back into the housing of the
"ST" (1) dirt trap.
6
. Open the ball valve upstream of the "ST" (1) dirt trap.
7
. Press "Auto" on the controller's operator panel.
– The device is switched on and the "PU" vacuum pump
is in operation.
Notice!
Clean all other installed dirt traps (in the Fillset, for example).
